Yamaha FZR1000 (1993) [11/74] Oil pump
![Yamaha FZR1000 (1993) [11/74] Oil pump](/views2/1121431/page11/bgb.png)

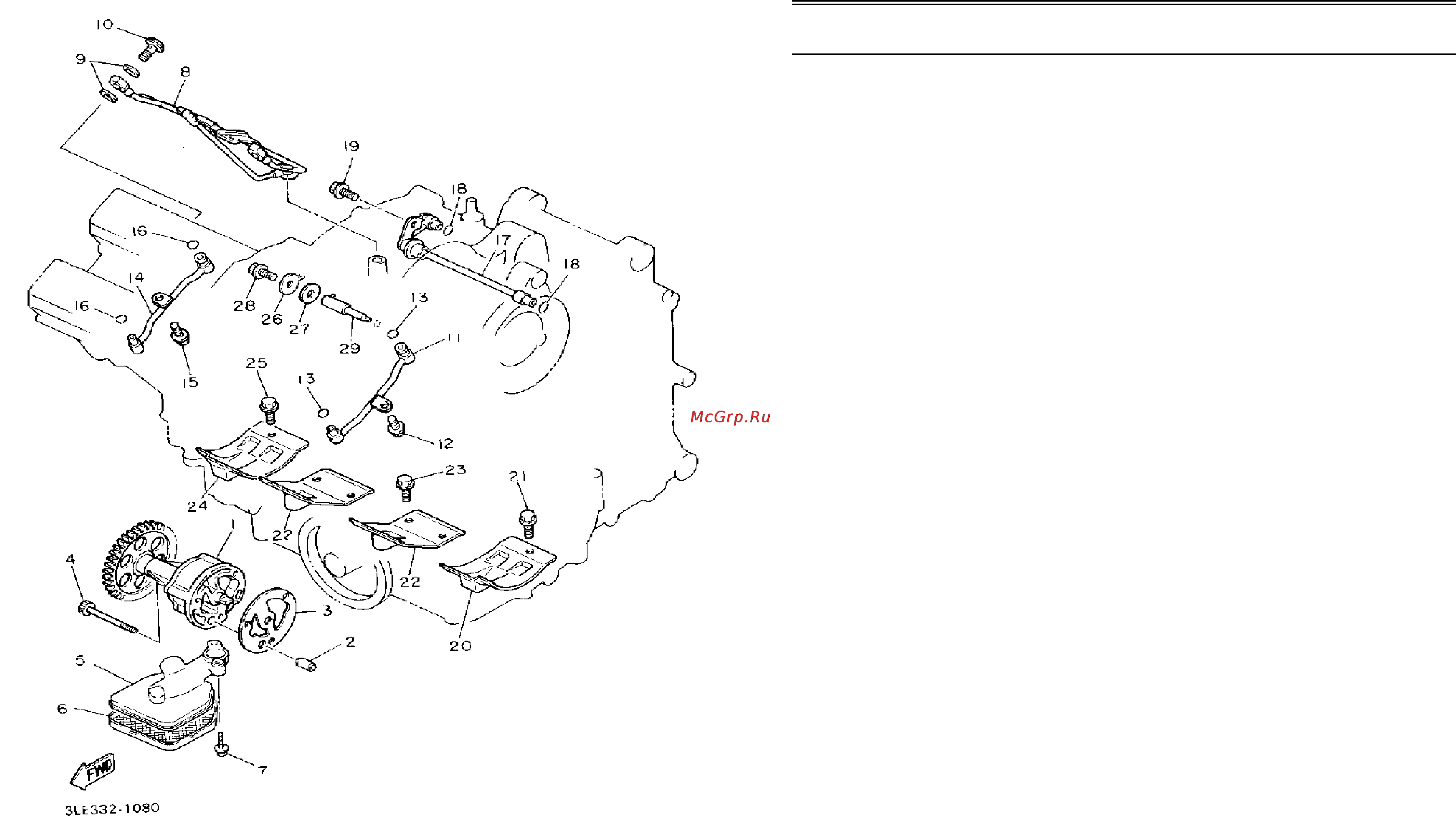

1 1AE-13300-00-00 OIL PUMP ASSEMBLY . . . . . . . 1
2 99510-08012-00 PIN, DOWEL . . . . . . . . . . . . . . 1
3 2GH-13329-00-00 GASKET, PUMP COVER . . . . . 1
4 91316-06050-00 BOLT, SOCKET HEAD . . . . . . . 3
5 3GM-13412-50-00 HOUSING, STRAINER . . . . . . . 1
6 3GM-13411-00-00 STRAINER, OIL . . . . . . . . . . . . 1
7 95026-06030-00 BOLT, FLANGE . . . . . . . . . . . . 2
8 3GM-13171-00-00 PIPE, DELIVERY 2 . . . . . . . . . . 1
9 90430-10171-00 GASKET . . . . . . . . . . . . . . . . . 6
10 90401-10139-00 BOLT, UNION . . . . . . . . . . . . . 3
90401-10139-00 BOLT, UNION . . . . . . . . . . . . . 4
11 3GM-13181-00-00 PIPE, DELIVERY 3 . . . . . . . . . . 1
12 95026-06012-00 BOLT, FLANGE . . . . . . . . . . . . 1
13 93210-06632-00 O-RING . . . . . . . . . . . . . . . . . . 2
14 3GM-13191-00-00 PIPE, DELIVERY 4 . . . . . . . . . . 1
15 95026-06012-00 BOLT, FLANGE . . . . . . . . . . . . 1
16 93210-06632-00 O-RING . . . . . . . . . . . . . . . . . . 2
17 2GH-1316E-00-00 PIPE, DELEVERY 5 . . . . . . . . . 1
18 93210-07135-00 O-RING . . . . . . . . . . . . . . . . . . 2
19 95026-06012-00 BOLT, FLANGE . . . . . . . . . . . . 1
20 2GH-15123-00-00 PLATE, BUFFLE 1 . . . . . . . . . . 1
21 95026-06012-00 BOLT, FLANGE . . . . . . . . . . . . 2
22 1AE-15124-00-00 PLATE, BUFFLE 2 . . . . . . . . . . 2
23 95026-06012-00 BOLT, FLANGE . . . . . . . . . . . . 6
24 2GH-15133-00-00 PLATE, BUFFLE 3 . . . . . . . . . . 1
25 95026-06012-00 BOLT, FLANGE . . . . . . . . . . . . 2
26 90201-061M7-00 WASHER, PLATE . . . . . . . . . . . 1
27 4BH-13475-00-00 GASKET . . . . . . . . . . . . . . . . . 1
28 95811-06016-00 BOLT, FLANGE (95822-06016) . 1
CONTINUED ON NEXT FRAME
➤
OIL PUMP
Ref. Part
No. Number Description Qty Remarks
A11
FZR1000E_EC
