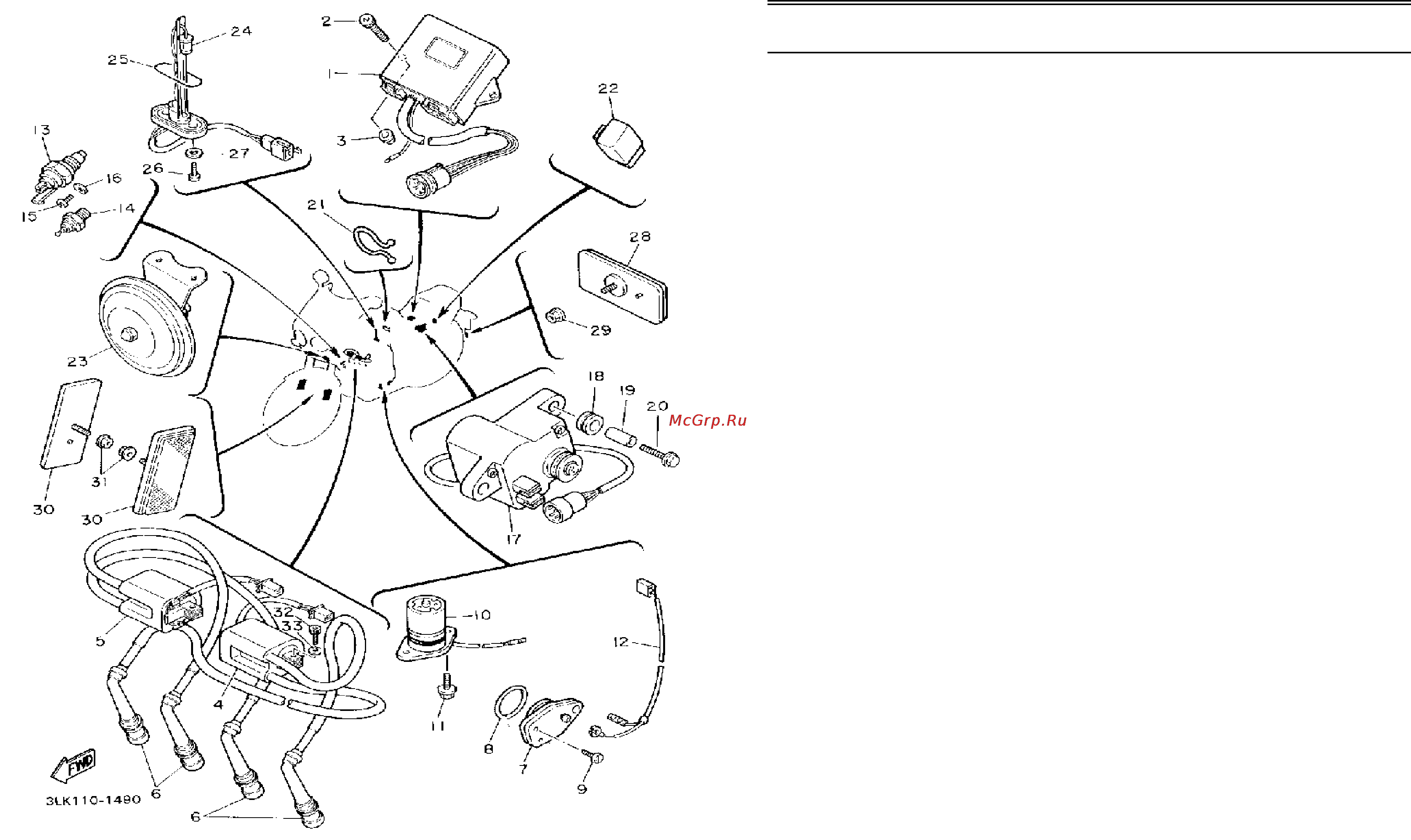

Yamaha FZR1000 (1993) [72/74] Electrical 1
![Yamaha FZR1000 (1993) [72/74] Electrical 1](/views2/1121431/page72/bg48.png)
28 3G1-85130-01-00 REAR REFLECTOR ASSEMBLY 1
29 95701-05500-00 NUT, FLANGE . . . . . . . . . . . . . 1
30 11H-85110-01-00 REFLECTOR ASSEMBLY . . . . 2
31 95701-05500-00 NUT, FLANGE . . . . . . . . . . . . . 2
32 97011-06020-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
33 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 4
ELECTRICAL 1
Ref. Part
No. Number Description Qty Remarks
F12
FZR1000E_EC
