Yamaha FZR1000 (1993) [52/74] Rear wheel

1 3GM-25338-01-UA WHEEL, CAST REAR . . . . . . . . 1 CAST

2 93306-30416-00 BEARING (B6304RS) . . . . . . . . 1

3 93106-30029-00 OIL SEAL . . . . . . . . . . . . . . . . . 1

4 90560-20357-00 SPACER . . . . . . . . . . . . . . . . . 1

5 2GH-25364-00-00 DAMPER . . . . . . . . . . . . . . . . . 5

6 93306-30437-00 BEARING . . . . . . . . . . . . . . . . . 1

7 94117-173U6-00 TIRE (170/60 VR17 V280) . . . . . 1 DUNLOP

8 93900-00030-00 VALVE, RIM . . . . . . . . . . . . . . . 1

9 29L-25398-00-00 BALANCER, WHEEL (10G) . . . 1 UN

29L-25398-10-00 BALANCER, WHEEL (20G) . . . 1 UN

29L-25398-20-00 BALANCER, WHEEL (30G) . . . 1 UN

10 36Y-25366-01-00 CLUTCH, HUB . . . . . . . . . . . . . 1

11 93306-30562-00 BEARING . . . . . . . . . . . . . . . . . 1

12 93106-35030-00 OIL SEAL . . . . . . . . . . . . . . . . . 1

13 36Y-25377-00-00 COLLAR, WHEEL . . . . . . . . . . 1

14 2GH-25447-21-00 SPROCKET, DRIVEN (47T) . . . 1

15 90116-10485-00 BOLT, STUD . . . . . . . . . . . . . . 6

16 95601-10200-00 NUT, SELF-LOCKING . . . . . . . . 6

17 94571-31110-00 CHAIN (RK532GSV2-110L) . . . . 1 UR

94581-26110-00 CHAIN (DID532ZLV-110L) . . . . 1 UR DAIDO

18 3GM-25388-00-00 PULLER, CHAIN 1 . . . . . . . . . . 1

19 3GM-25389-00-00 PULLER, CHAIN 2 . . . . . . . . . . 1

20 90101-08705-00 BOLT . . . . . . . . . . . . . . . . . . . . 2

21 95333-08600-00 NUT . . . . . . . . . . . . . . . . . . . . . 2

22 3GM-25371-00-00 BAR, TENSION . . . . . . . . . . . . 1

23 90105-08321-00 BOLT, WASHER BASED . . . . . 2

24 95701-08500-00 NUT, FLANGE . . . . . . . . . . . . . 2

25 91490-20020-00 PIN, COTTER . . . . . . . . . . . . . . 2

26 3GM-25381-00-00 AXLE, WHEEL . . . . . . . . . . . . . 1

CONTINUED ON NEXT FRAME

➤

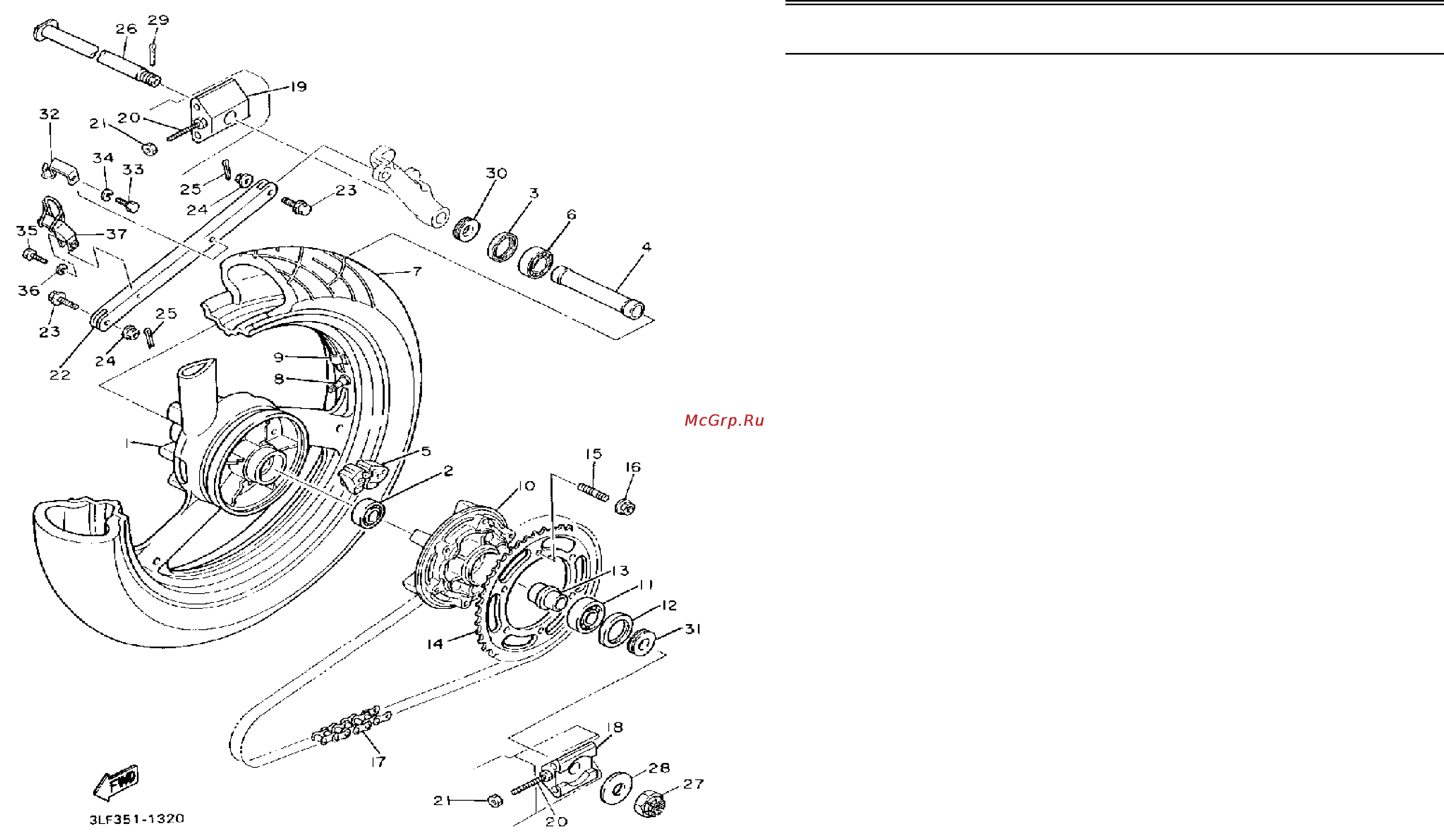

REAR WHEEL

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
