Yamaha FZR1000 (1993) [56/74] Front master cylinder

1 3GM-W2587-50-00 MASTER CYLINDER SUB

ASSEMBLY . . . . . . . . . . . . . . . 1

2 3GM-W0041-50-00 . CYLINDER KIT, MASTER . . . . 1

3 93210-15620-00 . O-RING . . . . . . . . . . . . . . . . . 1

4 2VN-25866-00-00 . CIRCLIP . . . . . . . . . . . . . . . . . 1

5 3FV-2589A-00-00 . COVER, DUST . . . . . . . . . . . . 1

6 56A-25867-00-00 BRACKET, MASTER CYLINDER 1

7 97016-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 2

8 92906-06600-00 WASHER . . . . . . . . . . . . . . . . . 2

9 3GM-83922-50-00 LEVER 2 . . . . . . . . . . . . . . . . . 1

10 3FV-2589F-00-00 BOLT, LEVER . . . . . . . . . . . . . 1

11 95616-06100-00 NUT, U . . . . . . . . . . . . . . . . . . . 1

12 3FV-25894-00-00 TANK, RESERVOIR . . . . . . . . . 1

13 3GM-25852-50-00 CAP, RESERVOIR . . . . . . . . . . 1

14 3FV-25854-00-00 DIAPHRAGM, RESERVOIR . . . 1

15 2J2-25855-50-00 BUSH, DIAPHRAGM . . . . . . . . 1

16 3FV-2589G-00-00 HOLDER . . . . . . . . . . . . . . . . . 1

17 3FV-83980-00-00 FRONT STOP SWITCH

ASSEMBLY . . . . . . . . . . . . . . . 1

18 98511-04012-00 SCREW, PAN HEAD . . . . . . . . 2

19 92901-04100-00 WASHER, SPRING . . . . . . . . . . 2

20 92901-04600-00 WASHER, PLATE . . . . . . . . . . . 2

21 3GM-2585F-00-00 HOSE . . . . . . . . . . . . . . . . . . . . 1

22 3PA-24356-00-00 CLIP, PIPE 1 . . . . . . . . . . . . . . 2

23 3GM-26292-50-00 STAY . . . . . . . . . . . . . . . . . . . . 1

24 3GM-26131-00-00 GUIDE, CABLE 1 . . . . . . . . . . . 1

25 90110-06145-00 BOLT, HEX.SOCKET . . . . . . . . 2

26 3GM-25872-51-00 HOSE, BRAKE 1 . . . . . . . . . . . 1

27 3GM-25873-51-00 HOSE, BRAKE 2 . . . . . . . . . . . 1

CONTINUED ON NEXT FRAME

➤

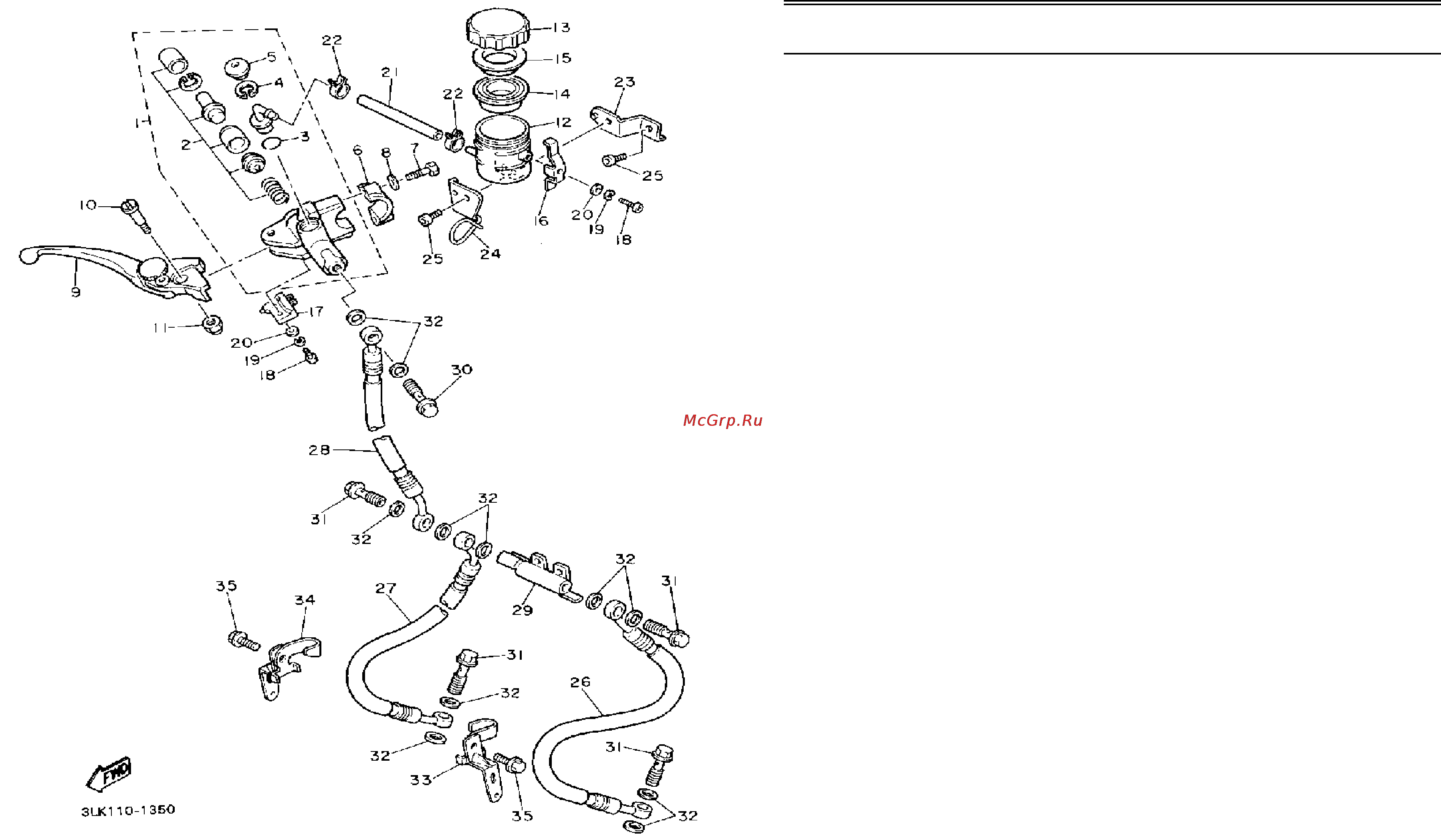

FRONT MASTER CYLINDER

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
