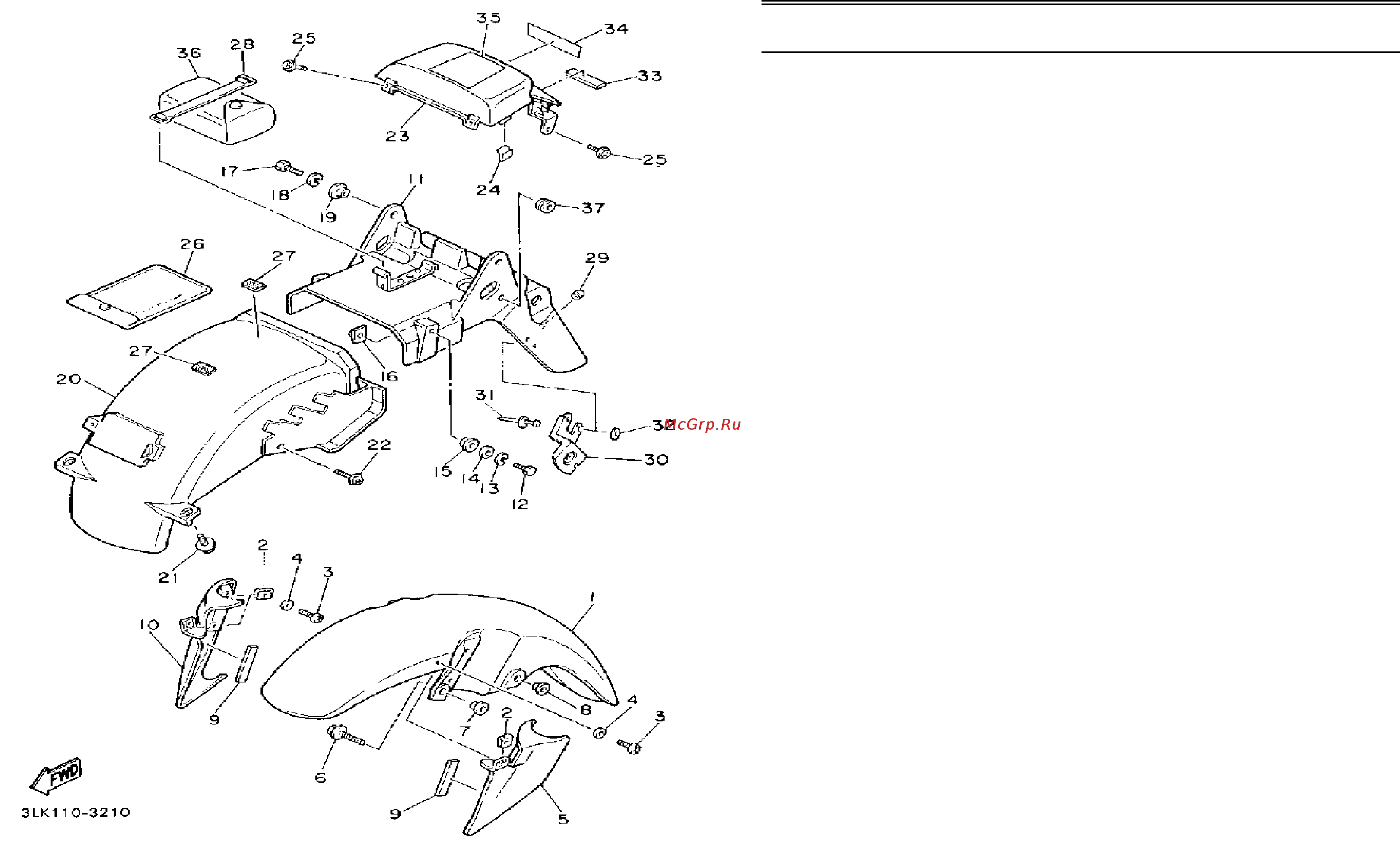

Yamaha FZR1000 (1993) [35/74] Fender

1 3GM-21511-51-GE FENDER, FRONT . . . . . . . . . . . 1 SILKY

2 90183-05061-00 NUT, SPRING . . . . . . . . . . . . . . 6

3 90154-05060-00 SCREW, BINDING . . . . . . . . . . 6

4 90202-05088-00 WASHER, PLATE . . . . . . . . . . . 6

5 3GM-21551-51-GE OVER, FENDER . . . . . . . . . . . . 1 SILKY

6 90119-06063-00 BOLT, WITH WASHER . . . . . . . 4

7 90387-065T2-00 COLLAR (2GH) . . . . . . . . . . . . 2

8 90387-0700D-00 COLLAR (3GM) . . . . . . . . . . . . 2

9 1FK-21746-00-00 DAMPER . . . . . . . . . . . . . . . . . 2

10 3GM-21555-51-GE FENDER, OVER 2 . . . . . . . . . . 1 SILKY

11 3LK-W2161-51-00 REAR FENDER COMP. . . . . . . 1

12 97011-06020-00 BOLT . . . . . . . . . . . . . . . . . . . . 2

13 92995-06100-00 WASHER, SPRING . . . . . . . . . . 2

14 92901-06600-00 WASHER . . . . . . . . . . . . . . . . . 2

15 90387-061M0-00 COLLAR . . . . . . . . . . . . . . . . . 2

16 31A-14477-00-00 PLATE . . . . . . . . . . . . . . . . . . . 2

17 97313-06016-00 BOLT, HEXAGON . . . . . . . . . . 2

18 92995-06100-00 WASHER, SPRING . . . . . . . . . . 2

19 90387-06648-00 COLLAR . . . . . . . . . . . . . . . . . 2

20 3GM-21629-50-00 GUARD, MUD . . . . . . . . . . . . . 1

21 90119-06079-00 BOLT, WITH WASHER . . . . . . . 2

22 90159-06056-00 SCREW, WITH WASHER . . . . . 1

23 3GM-21651-50-GE COVER, REAR FENDER . . . . . 1 SILKY

24 2GH-21732-00-00 SEAL 1 . . . . . . . . . . . . . . . . . . 2

25 90159-06042-00 SCREW, WITH WASHER . . . . . 4

26 4K5-28186-00-00 POUCH . . . . . . . . . . . . . . . . . . 1

27 4K5-2814E-10-00 HOOK . . . . . . . . . . . . . . . . . . . 2

28 26L-82131-00-00 BAND, BATTERY . . . . . . . . . . . 1

29 4G0-21639-00-00 DAMPER 2 . . . . . . . . . . . . . . . . 1

CONTINUED ON NEXT FRAME

➤

FENDER

Ref. Part

No. Number Description Qty Remarks

C11

FZR1000E_EC
