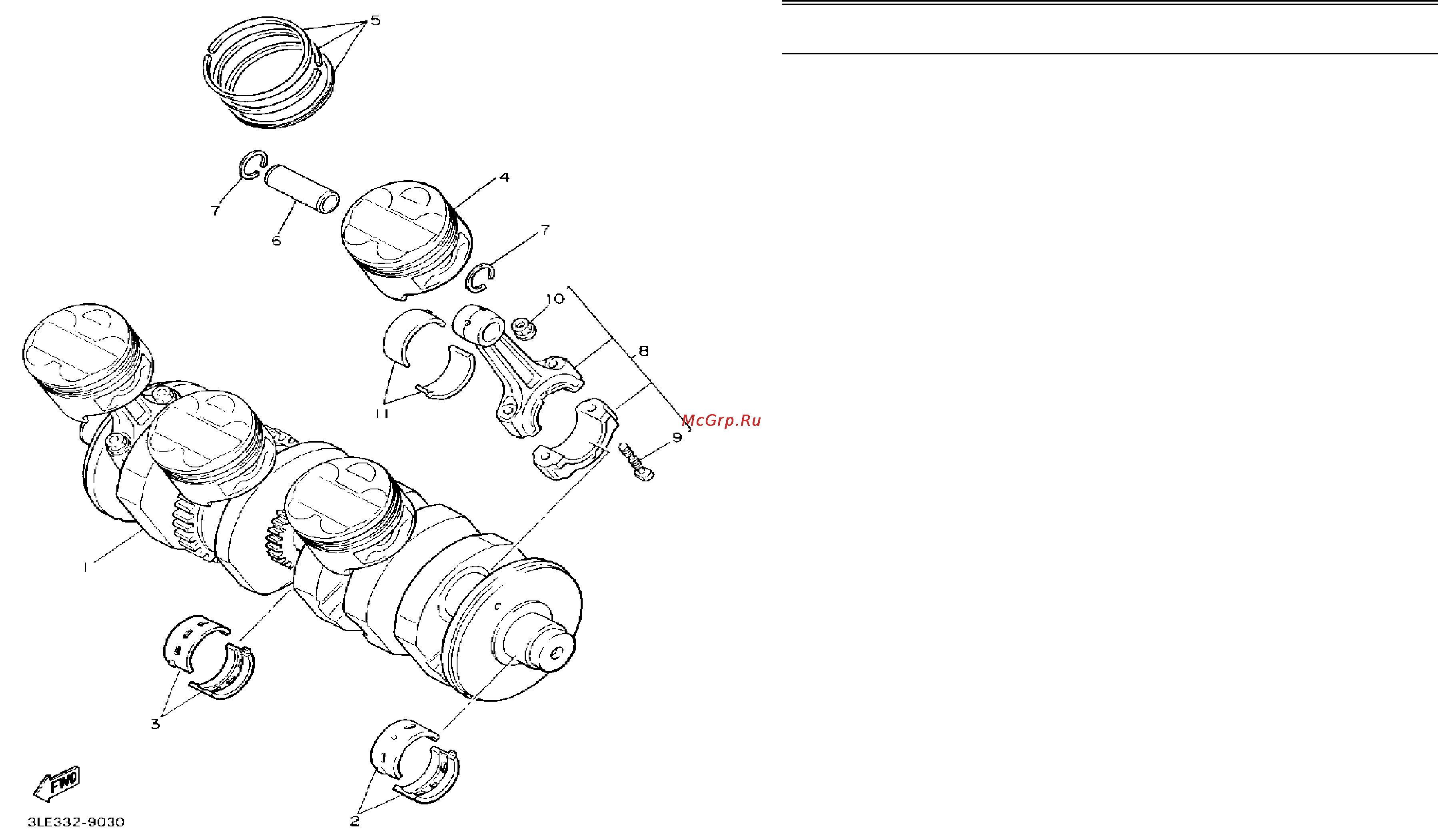

Yamaha FZR1000 (1993) [4/74] Crankshaft piston
![Yamaha FZR1000 (1993) [4/74] Crankshaft piston](/views2/1121431/page4/bg4.png)
1 3GM-11411-01-00 CRANKSHAFT . . . . . . . . . . . . . 1
2 2GH-11416-00-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 8 UR BLUE
2GH-11416-10-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 8 UR BLACK
2GH-11416-20-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 8 UR BROWN
2GH-11416-30-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 8 UR GREEN
2GH-11416-40-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 8 UR YELLOW
3 3GM-11416-00-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 2 UR BLUE
3GM-11416-10-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 2 UR BLACK
3GM-11416-20-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 2 UR BROWN
3GM-11416-30-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 2 UR GREEN
3GM-11416-40-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 2 UR YELLOW
4 3GM-11631-00-00 PISTON (STD) . . . . . . . . . . . . . 4
3GM-11636-00-00 PISTON (0.50MM O/S) . . . . . . . 4 AP
5 3GM-11610-00-00 PISTON RING SET (STD) . . . . . 4
3GM-11610-20-00 PISTON RING SET
(0.50MM O/S) . . . . . . . . . . . . . . 4 AP
6 3GM-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 4
7 93450-19095-00 CIRCLIP . . . . . . . . . . . . . . . . . . 8
8 3GM-11650-01-00 CONNECTING ROD ASSEMBLY 4
9 12R-11654-00-00 . BOLT, CONNECTING ROD . . 2
10 90179-08327-00 . NUT . . . . . . . . . . . . . . . . . . . . 2
11 3GM-11656-00-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 8 UR BLUE
CONTINUED ON NEXT FRAME
➤
CRANKSHAFT - PISTON
Ref. Part
No. Number Description Qty Remarks
A4
FZR1000E_EC
