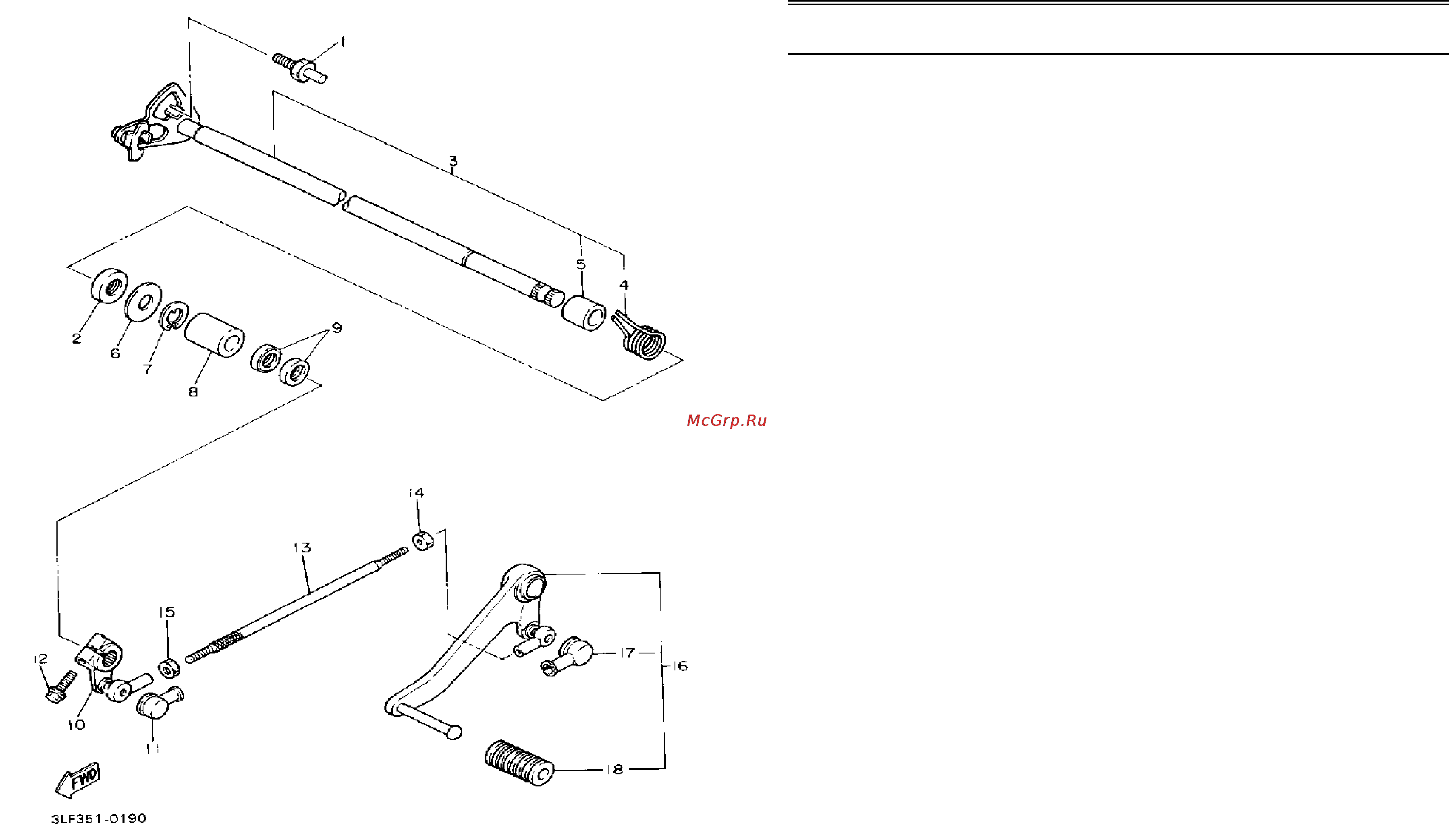

Yamaha FZR1000 (1993) [32/74] Shift shaft
![Yamaha FZR1000 (1993) [32/74] Shift shaft](/views2/1121431/page32/bg20.png)
1 4G0-18127-00-00 STOPPER, SCREW . . . . . . . . . 1
2 93102-12321-00 OIL SEAL, SD-TYPE . . . . . . . . 1
3 1AE-18101-01-00 SHIFT SHAFT ASSEMBLY . . . . 1
4 90508-32682-00 . SPRING, TORSION . . . . . . . . 1
5 90387-114K8-00 . COLLAR . . . . . . . . . . . . . . . . 1
6 90201-12575-00 WASHER, PLATE . . . . . . . . . . . 1
7 99006-10600-00 CIRCLIP . . . . . . . . . . . . . . . . . . 1
8 90560-12191-00 SPACER . . . . . . . . . . . . . . . . . 1
9 93109-12053-00 OIL SEAL (SDO 12/18/4-1) . . . . 2
10 2GH-18112-01-00 ARM, SHIFT . . . . . . . . . . . . . . . 1
11 2H9-18154-00-00 COVER, DUST . . . . . . . . . . . . . 1
12 95826-06020-00 BOLT, flange (95806-06020-00) 1
13 46X-18115-00-00 ROD, SHIFT . . . . . . . . . . . . . . . 1
14 90170-06228-00 NUT (COUNTER CLOCKWISE) 1
15 95380-06700-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
16 2GH-18110-00-00 SHIFT PEDAL ASSEMBLY . . . . 1
17 2H9-18154-00-00 . COVER, DUST . . . . . . . . . . . . 1
18 132-18113-01-00 . COVER, SHIFT PEDAL . . . . . . 1
SHIFT SHAFT
Ref. Part
No. Number Description Qty Remarks
C8
FZR1000E_EC
