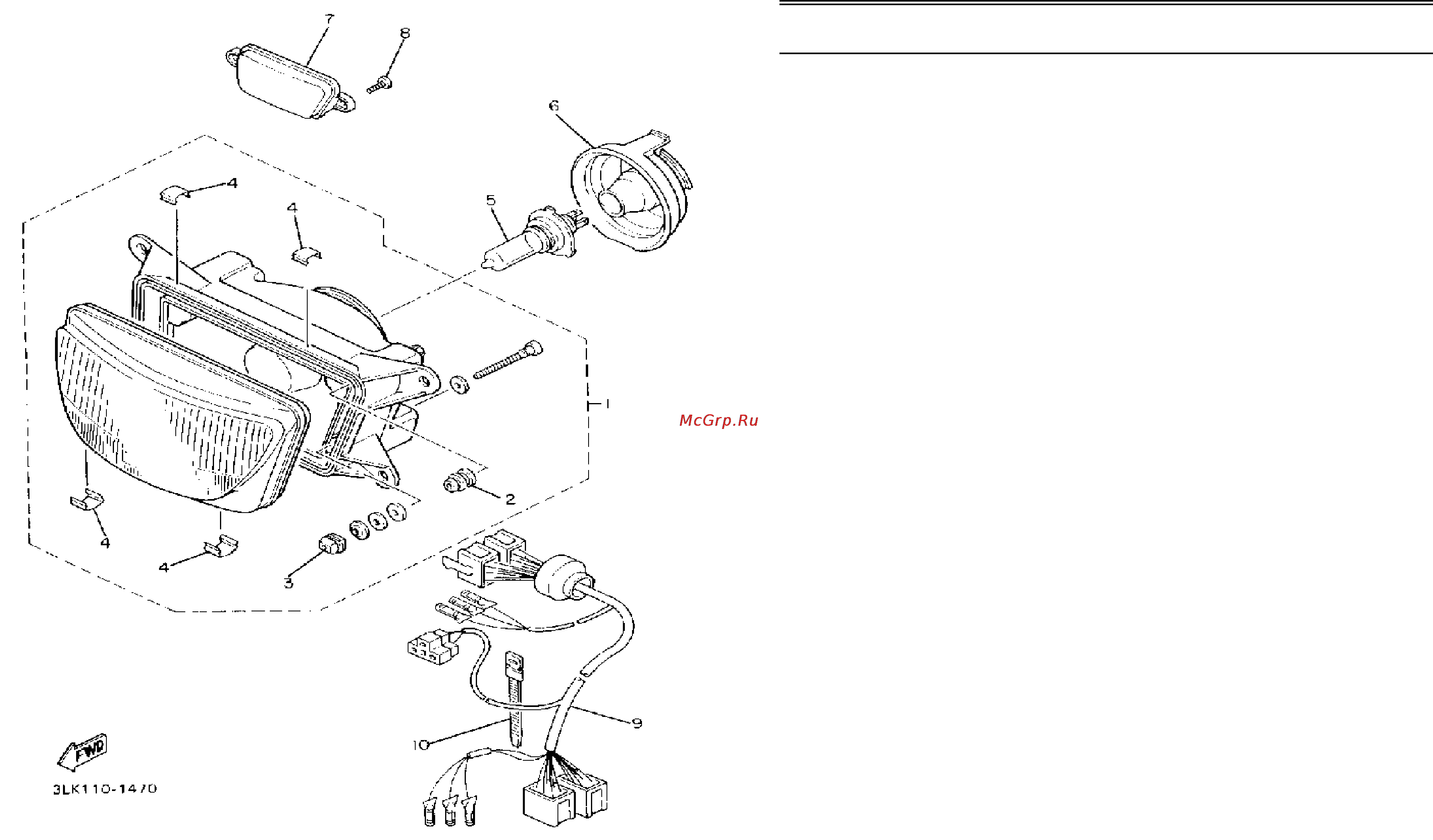

Yamaha FZR1000 (1993) [68/74] Headlight
![Yamaha FZR1000 (1993) [68/74] Headlight](/views2/1121431/page68/bg44.png)
1 3HH-84320-00-00 LENS ASSEMBLY . . . . . . . . . . 1
2 3AJ-8431U-00-00 . HOLDER . . . . . . . . . . . . . . . . 1
3 51L-84334-00-00 . NUT, ADJUSTING . . . . . . . . . 2
4 3MA-8413H-00-00 . PLATE, SPRING . . . . . . . . . . . 4
5 5V2-84314-00-XX BULB, HL 12V60/55W
(2F9-84314-00) . . . . . . . . . . . . . 1 HALO- GEN
6 36Y-84397-00-00 COVER, SOCKET . . . . . . . . . . . 1
7 3GM-84378-00-P1 CAP . . . . . . . . . . . . . . . . . . . . . 1 VIVID RED
8 90167-05041-00 SCREW, TAPPING . . . . . . . . . . 2
9 3LK-84359-10-00 CORD, HEADLIGHT . . . . . . . . . 1
10 5Y9-12491-00-00 CLAMP 1 . . . . . . . . . . . . . . . . . 1
HEADLIGHT
Ref. Part
No. Number Description Qty Remarks
F8
FZR1000E_EC
