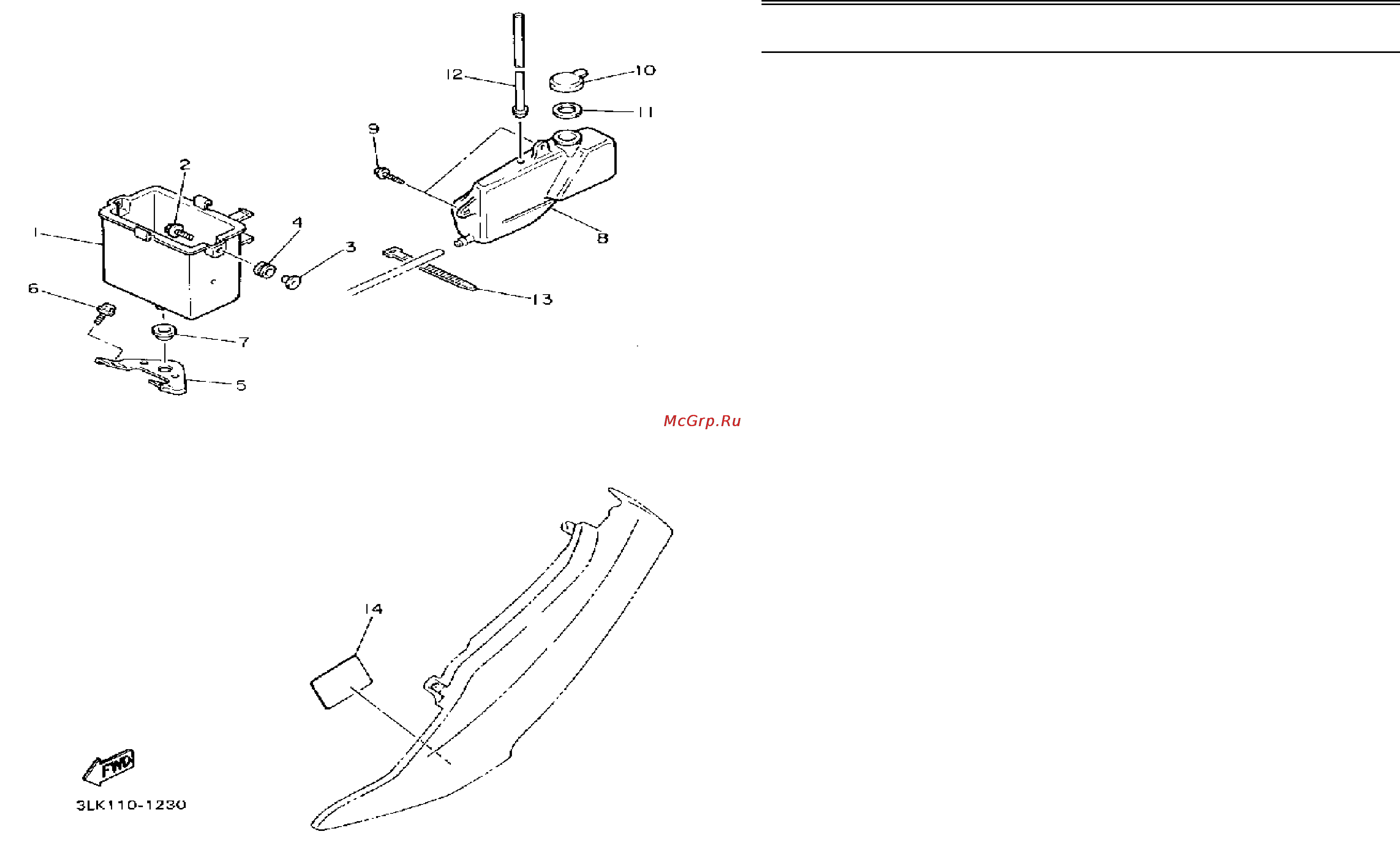

Yamaha FZR1000 (1993) [38/74] Side cover 2
![Yamaha FZR1000 (1993) [38/74] Side cover 2](/views2/1121431/page38/bg26.png)
1 3GM-2177G-50-00 BOX, BATTERY . . . . . . . . . . . . 1
2 90119-06063-00 BOLT, WITH WASHER . . . . . . . 2
3 90387-06024-00 COLLAR . . . . . . . . . . . . . . . . . 2
4 90480-15058-00 GROMMET . . . . . . . . . . . . . . . . 2
5 3GM-21249-50-00 BRACKET . . . . . . . . . . . . . . . . 1
6 95811-06012-00 BOLT, FLANGE . . . . . . . . . . . . 2
7 90480-22362-00 GROMMET . . . . . . . . . . . . . . . . 1
8 3GM-21871-50-00 TANK, RECOVERY . . . . . . . . . 1
9 90159-06056-00 SCREW, WITH WASHER . . . . . 2
10 4L0-21875-00-00 CAP . . . . . . . . . . . . . . . . . . . . . 1
11 1AA-21874-00-00 GASKET . . . . . . . . . . . . . . . . . 1
12 3GM-21816-00-00 PIPE 1 . . . . . . . . . . . . . . . . . . . 1
13 437-83936-11-00 BAND, SWITCH CORD . . . . . . . 1
14 3LK-2179R-40-00 PLATE, EPA CAL 2
(CALIFORNIA) . . . . . . . . . . . . . 1 UR
3LK-2179V-40-00 PLATE, EPA U49
(NON CALIFORNIA) . . . . . . . . . 1 UR
SIDE COVER 2
Ref. Part
No. Number Description Qty Remarks
D2
FZR1000E_EC
