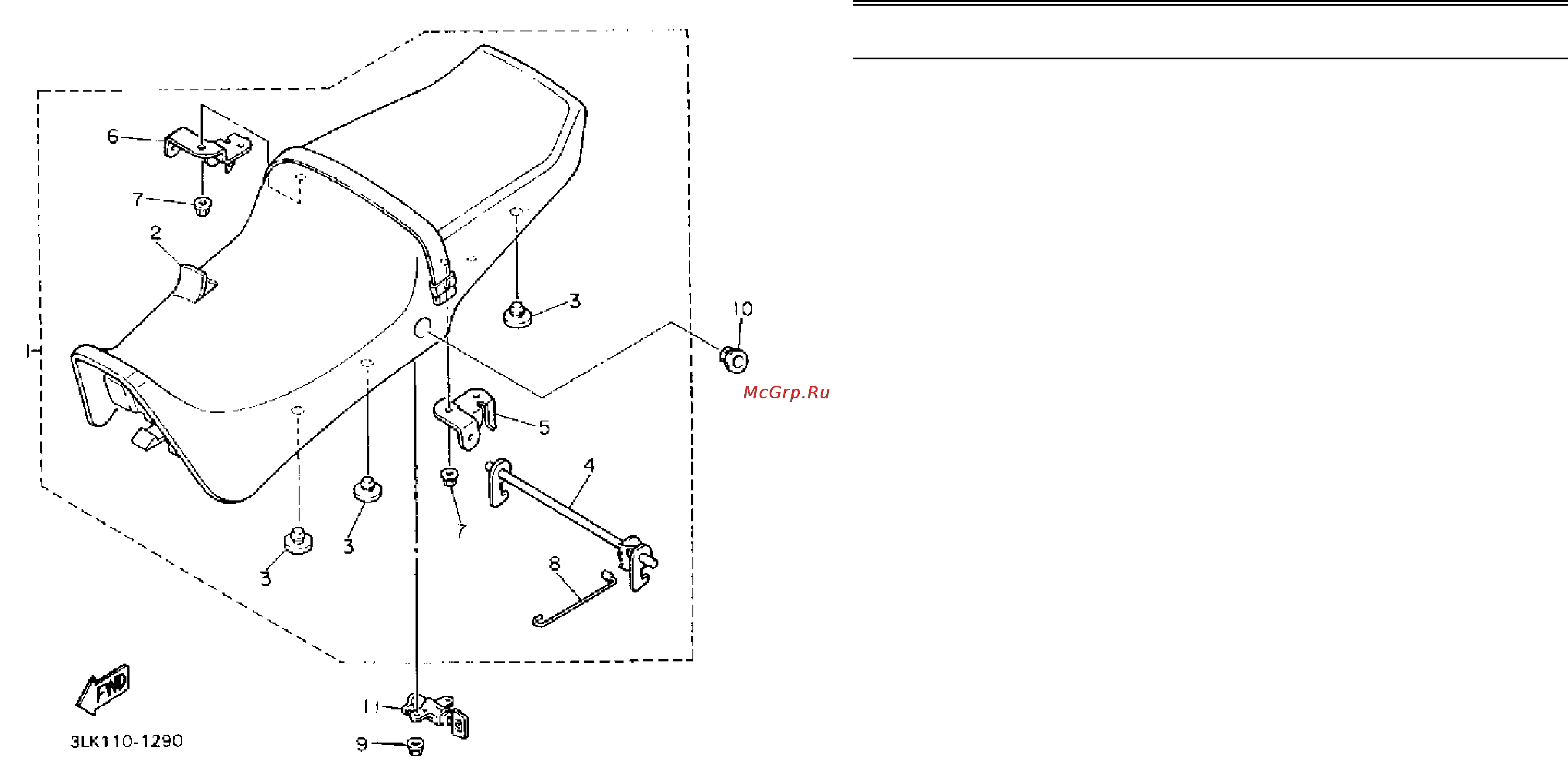

Yamaha FZR1000 (1993) [49/74] Ref part no number description qty remarks
![Yamaha FZR1000 (1993) [49/74] Ref part no number description qty remarks](/views2/1121431/page49/bg31.png)
1 3GM-24730-50-00 DOUBLE SEAT ASSEMBLY . . . 1
2 3GM-24731-50-00 . COVER, SEAT . . . . . . . . . . . . 1
3 2GH-24741-00-00 . PAD, SEAT . . . . . . . . . . . . . . 6
4 3GM-24776-50-00 . LEVER, SEAT . . . . . . . . . . . . 1
5 3GM-24718-50-00 . BRACKET, SEAT . . . . . . . . . . 1
6 3GM-24728-50-00 . BRACKET, SEAT . . . . . . . . . . 1
7 95701-06500-00 . NUT, FLANGE . . . . . . . . . . . . 4
8 1KT-2478F-00-00 . ROD, CONNECTING . . . . . . . . 1
9 95701-05500-00 NUT, FLANGE . . . . . . . . . . . . . 2
10 3GM-24796-50-00 COVER . . . . . . . . . . . . . . . . . . 1
11 51X-24705-00-00 SEAT LOCK ASSEMBLY . . . . . 1
SEAT
Ref. Part
No. Number Description Qty Remarks
