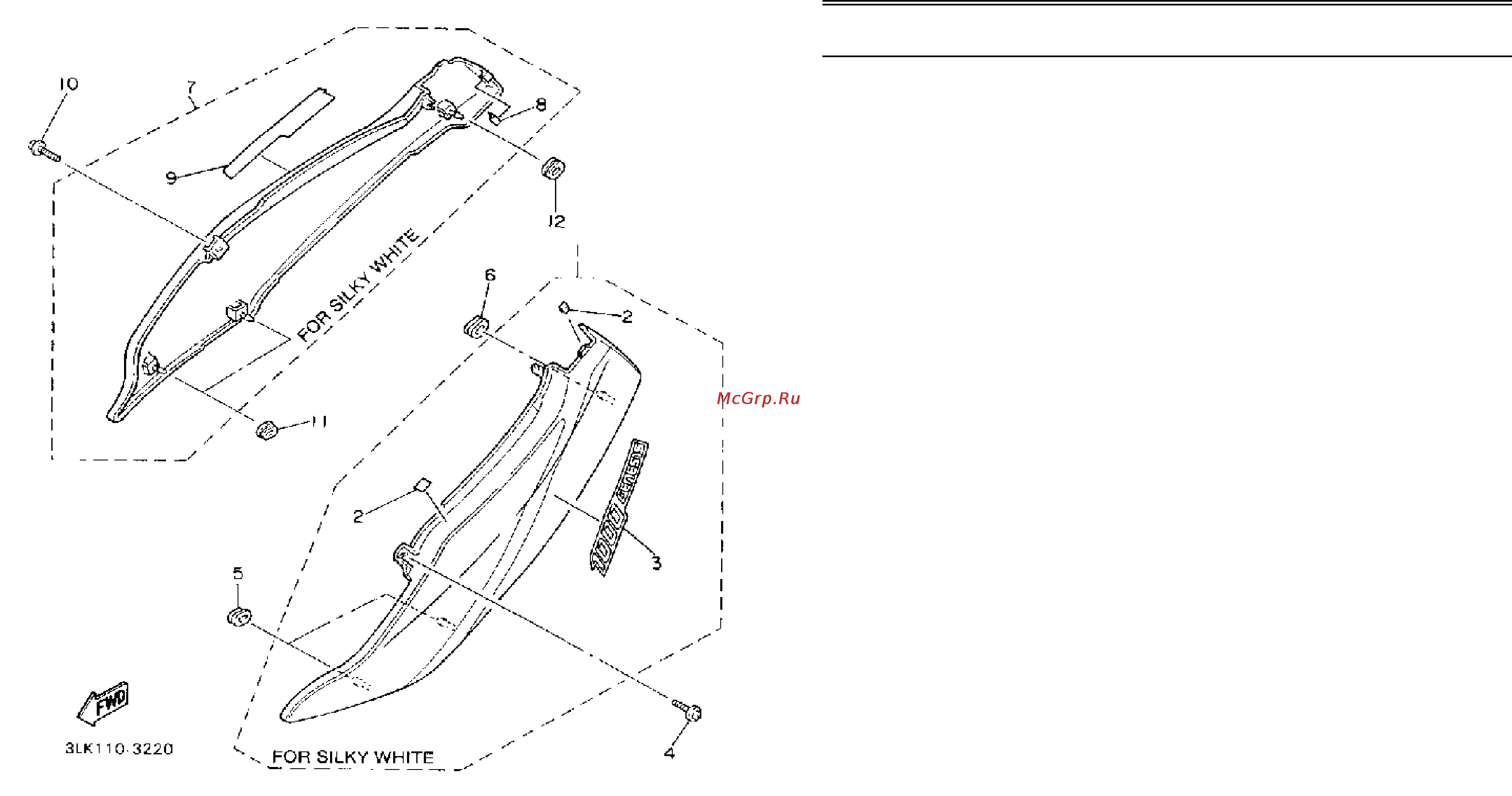

Yamaha FZR1000 (1993) [37/74] Side cover
![Yamaha FZR1000 (1993) [37/74] Side cover](/views2/1121431/page37/bg25.png)
1 3GM-Y2171-J0-2X COVER, SIDE 1 . . . . . . . . . . . . 1 SILKY
2 2GH-21732-00-00 . SEAL 1 . . . . . . . . . . . . . . . . . 3
3 3LG-21781-20-00 . EMBLEM 1 . . . . . . . . . . . . . . . 1
4 90159-06033-00 SCREW, WITH WASHER . . . . . 1
5 90480-01401-00 GROMMET . . . . . . . . . . . . . . . . 2
6 90480-22084-00 GROMMET . . . . . . . . . . . . . . . . 1
7 3GM-Y2172-J0-2X COVER, SIDE 2 . . . . . . . . . . . . 1 SILKY WHITE/VIVID
RED COCK-TAI
8 2GH-21732-00-00 . SEAL 1 . . . . . . . . . . . . . . . . . 3
9 3LG-21781-20-00 . EMBLEM 1 . . . . . . . . . . . . . . . 1
10 90159-06033-00 SCREW, WITH WASHER . . . . . 1
11 90480-01401-00 GROMMET . . . . . . . . . . . . . . . . 2
12 90480-22084-00 GROMMET . . . . . . . . . . . . . . . . 1
SIDE COVER
Ref. Part
No. Number Description Qty Remarks
D1
FZR1000E_EC
