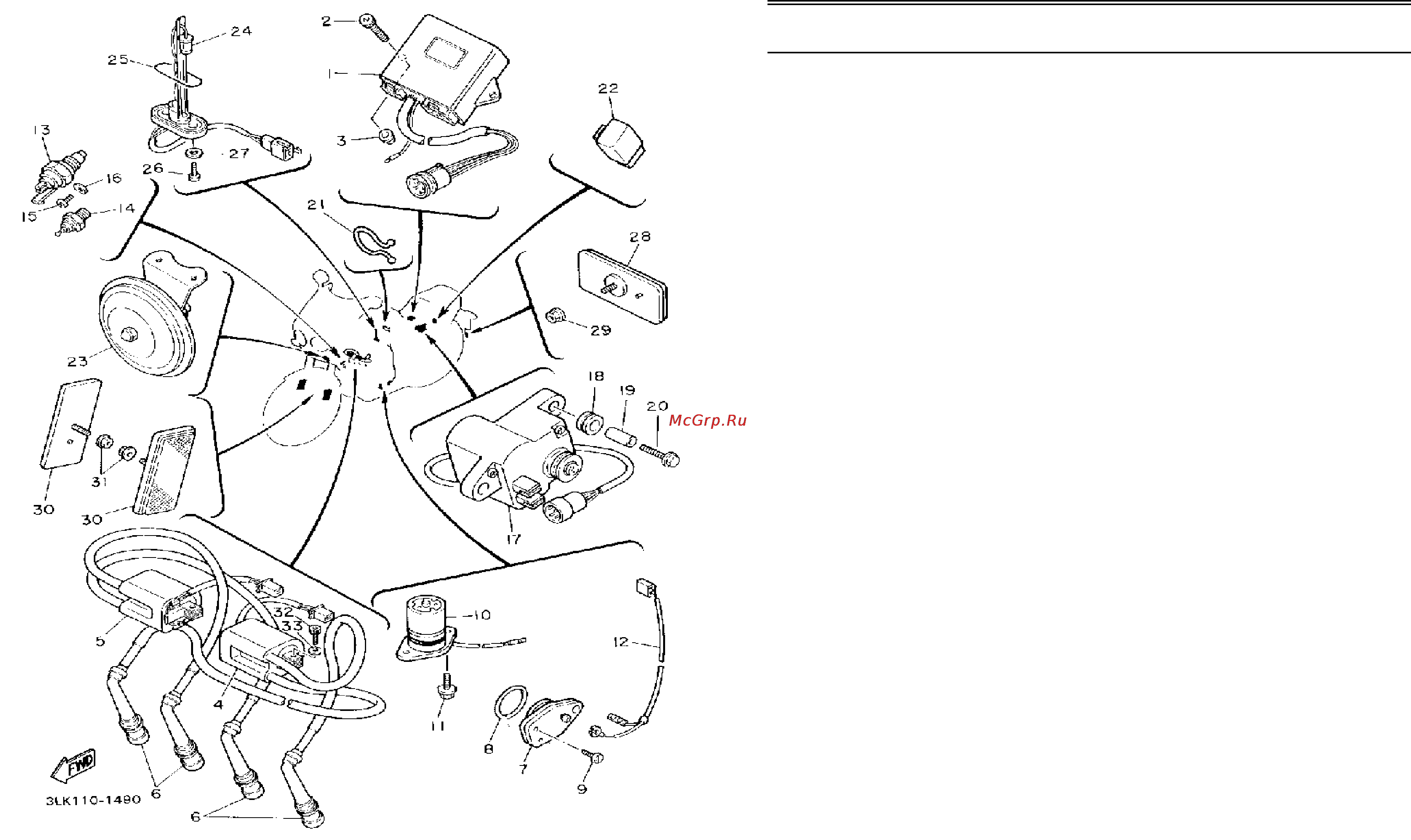

Yamaha FZR1000 (1993) [71/74] Electrical 1

1 3LK-82305-10-00 IGNITOR UNIT ASSEMBLY . . . 1

2 90110-06158-00 BOLT, HEXAGON SOCKET

HEAD . . . . . . . . . . . . . . . . . . . . 1

3 31A-14477-00-00 PLATE . . . . . . . . . . . . . . . . . . . 1

4 3GM-82310-00-00 IGNITION COIL ASSEMBLY . . . 1

5 3GM-82320-00-00 IGNITION COIL ASSEMBLY . . . 1

6 2KT-82370-00-00 PLUG CAP ASSEMBLY . . . . . . 4

7 1AE-82540-00-00 NEUTRAL SWITCH ASSEMBLY 1

8 93210-29196-00 O-RING . . . . . . . . . . . . . . . . . . 1

9 98502-06016-00 SCREW, PAN HEAD

(98501-06014-00) . . . . . . . . . . . 2

10 3GM-85720-00-00 OIL LEVEL GAUGE ASSEMBLY 1

11 95026-06016-00 BOLT, FLANGE . . . . . . . . . . . . 2

12 1AE-82509-00-00 WIRE, SUB LEAD . . . . . . . . . . 1

13 2EL-82560-00-00 THERMO SWITCH ASSEMBLY 1

14 11H-83591-00-00 THERMO UNIT . . . . . . . . . . . . . 1

15 98580-05010-00 SCREW, PAN HEAD . . . . . . . . 1

16 92990-05100-00 WASHER, SPRING . . . . . . . . . . 1

17 3GM-85820-00-00 SERVO MOTOR ASSEMBLY . . 1

18 90480-14412-00 GROMMET . . . . . . . . . . . . . . . . 2

19 90387-065V1-00 COLLAR . . . . . . . . . . . . . . . . . 2

20 95801-06035-00 BOLT, FLANGE . . . . . . . . . . . . 2

21 90464-30040-00 CLAMP . . . . . . . . . . . . . . . . . . 1

22 3YA-83350-00-00 FLASHER RELAY ASSEMBLY . 1

23 3GM-83371-00-00 HORN . . . . . . . . . . . . . . . . . . . 1

24 3GM-85752-01-00 SENDER UNIT ASSEMBLY,

FUEL METER . . . . . . . . . . . . . . 1

25 42X-85753-00-00 GASKET, SENDER UNIT . . . . . 1

26 90149-06011-00 SCREW . . . . . . . . . . . . . . . . . . 2

27 90202-05187-00 WASHER, PLATE . . . . . . . . . . . 2
