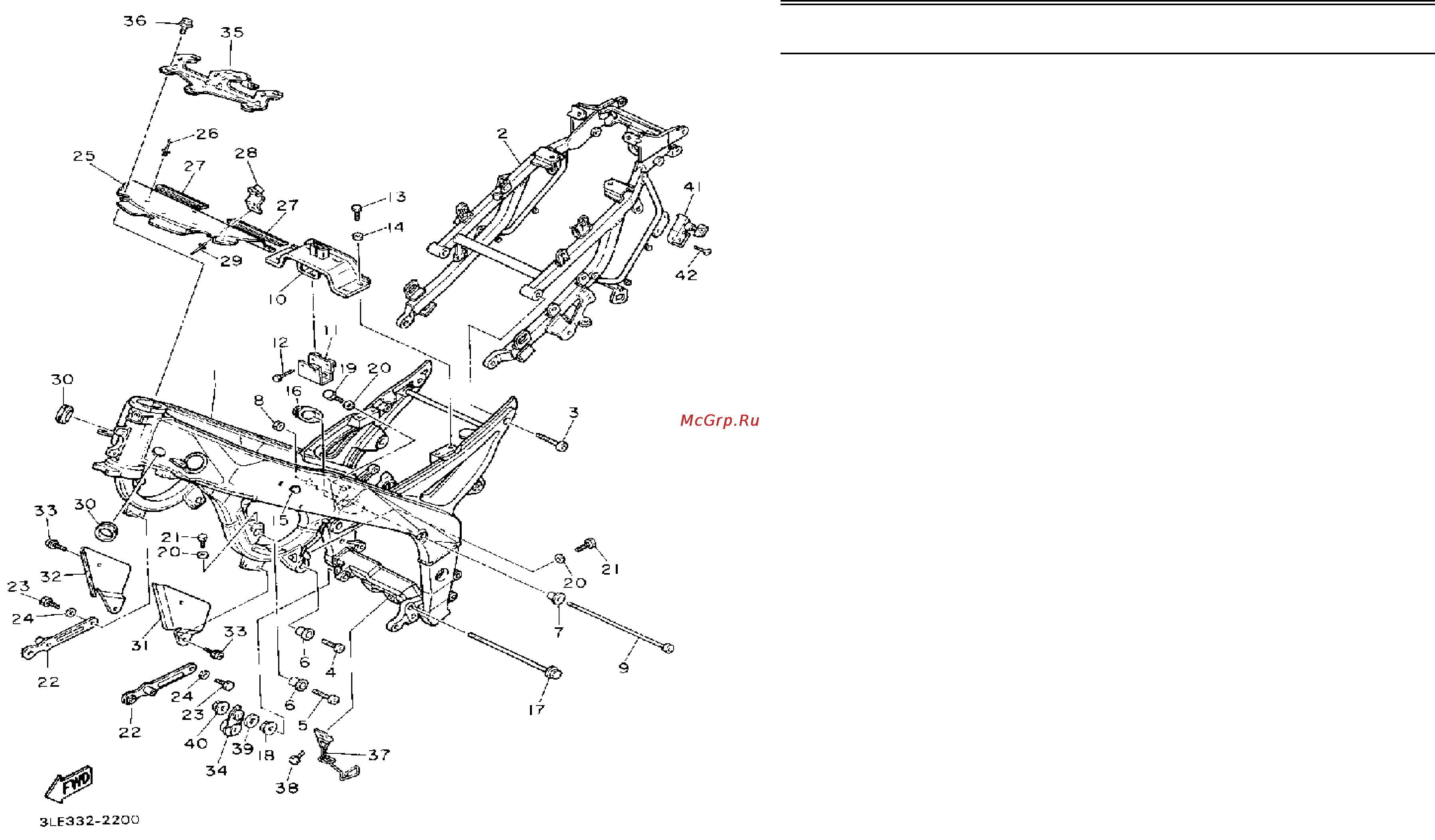

Yamaha FZR1000 (1993) [33/74] Continued on next frame

1 3GM-21110-60-00 FRAME COMP. . . . . . . . . . . . . 1

2 3GM-21190-50-33 REAR FRAME COMP. . . . . . . . 1 YAMAHA

3 90110-10191-00 BOLT, HEXAGON SOCKET

HEAD . . . . . . . . . . . . . . . . . . . . 4

4 91316-10045-00 BOLT . . . . . . . . . . . . . . . . . . . . 2

5 90110-10168-00 BOLT, HEXAGON SOCKET

HEAD . . . . . . . . . . . . . . . . . . . . 2

6 90387-115V8-00 COLLAR . . . . . . . . . . . . . . . . . 4

7 90387-105V7-00 COLLAR . . . . . . . . . . . . . . . . . 1

8 90179-10590-00 NUT . . . . . . . . . . . . . . . . . . . . . 1

9 90110-10169-00 BOLT, HEXAGON SOCKET

HEAD . . . . . . . . . . . . . . . . . . . . 1

10 3GM-21348-51-00 BRACKET, TANK FITTING . . . . 1

11 3GM-21347-00-00 BRACKET, TANK FITTING . . . . 1

12 97001-06035-00 BOLT . . . . . . . . . . . . . . . . . . . . 2

13 97013-06012-00 BOLT . . . . . . . . . . . . . . . . . . . . 4

14 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 4

15 90338-15202-00 PLUG . . . . . . . . . . . . . . . . . . . . 3

16 2GH-2117T-00-00 COVER 5 . . . . . . . . . . . . . . . . . 1

17 90105-10559-00 BOLT, WASHER BASED . . . . . 1

18 90179-10247-00 NUT . . . . . . . . . . . . . . . . . . . . . 1

19 97006-08035-00 BOLT . . . . . . . . . . . . . . . . . . . . 2

20 92990-08200-00 WASHER, PLAIN . . . . . . . . . . . 6

21 97021-08035-00 BOLT . . . . . . . . . . . . . . . . . . . . 4

22 3GM-2142K-50-00 BRACKET, RADIATOR . . . . . . . 2

23 97013-06012-00 BOLT . . . . . . . . . . . . . . . . . . . . 2

24 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 2

25 3GM-2117M-00-00 COVER 2 . . . . . . . . . . . . . . . . . 1

26 90267-40076-00 RIVET, BLIND . . . . . . . . . . . . . 4

27 2GH-15365-00-00 GROMMET . . . . . . . . . . . . . . . . 2

CONTINUED ON NEXT FRAME

➤

FRAME

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
