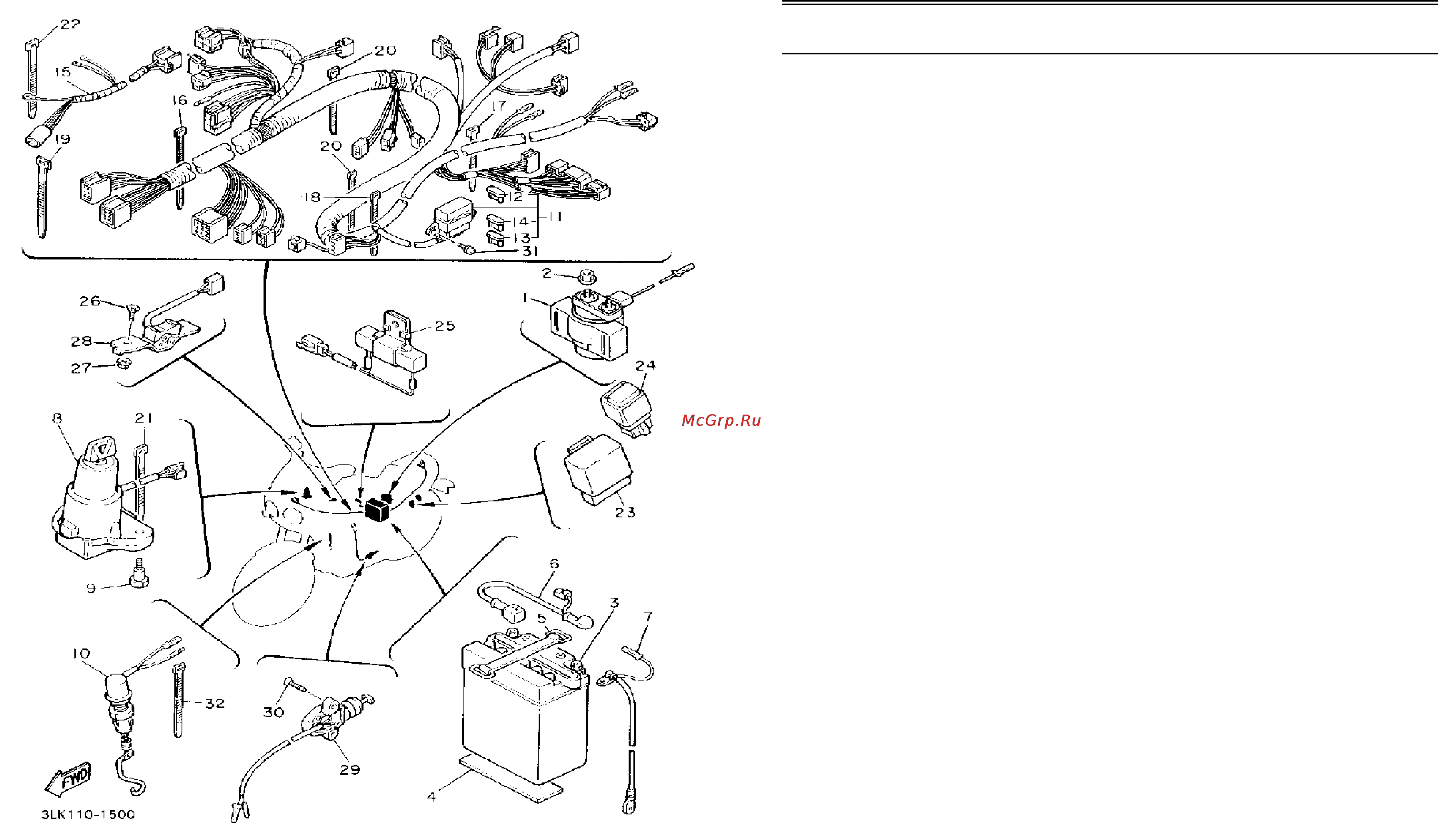

Yamaha FZR1000 (1993) [73/74] Electrical 2

1 36Y-81940-00-00 STARTER RELAY ASSEMBLY . 1

2 95701-06500-00 NUT, FLANGE . . . . . . . . . . . . . 2

3 BTY-YTX14-BS-00 BATTERY ASSEMBLY

(3XW-82100-01-00) . . . . . . . . . . 1

4 5X2-24183-00-00 DAMPER, LOCATING 3 . . . . . . 1

5 2T4-82131-00-00 BAND, BATTERY . . . . . . . . . . . 1

6 3GM-82115-50-00 WIRE, PLUS LEAD . . . . . . . . . . 1

7 3XW-82116-00-00 WIRE, MINUS LEAD . . . . . . . . . 1

8 3LK-82501-10-00 MAIN SWCH STRG LCKLOCK . 1

9 90149-06228-00 SCREW . . . . . . . . . . . . . . . . . . 2

10 3GM-82530-11-00 STOP SWITCH ASSEMBLY . . . 1

11 3LK-82590-10-00 WIRE HARNESS ASSEMBLY . . 1

12 1AE-82151-00-00 . FUSE (30A-BL) . . . . . . . . . . . 2

13 42X-82151-00-00 . FUSE (10A-BL) . . . . . . . . . . . 4

14 2GH-82151-00-00 . FUSE (20A-BL) . . . . . . . . . . . 2

15 3GM-82509-00-00 WIRE, SUB LEAD . . . . . . . . . . 1

16 437-83936-01-00 BAND, SWITCH CORD . . . . . . . 3

17 437-83936-11-00 BAND, SWITCH CORD . . . . . . . 1

18 90465-13169-00 CALMP . . . . . . . . . . . . . . . . . . 1

19 90464-13073-00 CLAMP . . . . . . . . . . . . . . . . . . 1

20 90464-13073-00 CLAMP . . . . . . . . . . . . . . . . . . 3

21 J45-83936-00-00 BAND, SWITCH CORD . . . . . . . 1

22 25G-83936-01-00 BAND, SWITCH CORD . . . . . . . 1

23 3EN-81950-00-00 RELAY ASSEMBLY . . . . . . . . . 1

24 3GM-81950-10-00 RELAY ASSEMBLY . . . . . . . . . 1

25 3KS-85370-00-00 RESISTOR ASSEMBLY . . . . . . 1

26 98780-05016-00 SCREW, FLAT HEAD . . . . . . . . 2

27 95701-05500-00 NUT, FLANGE . . . . . . . . . . . . . 2

28 3TJ-83964-00-00 SWITCH . . . . . . . . . . . . . . . . . . 1

CONTINUED ON NEXT FRAME

➤

ELECTRICAL 2

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
