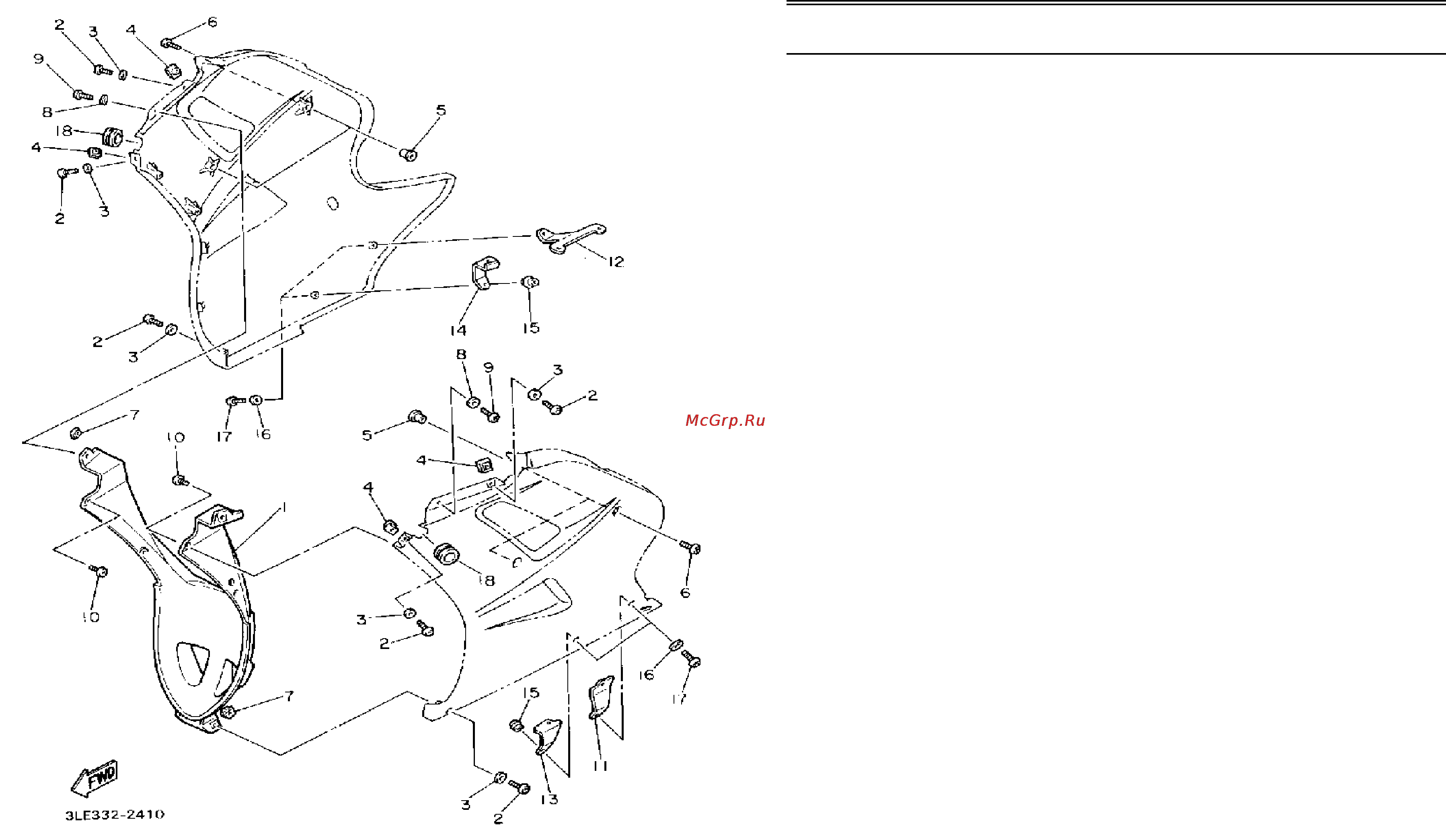

Yamaha FZR1000 (1993) [65/74] Cowling 3
![Yamaha FZR1000 (1993) [65/74] Cowling 3](/views2/1121431/page65/bg41.png)
1 3GM-2836K-50-GE PANEL, INNER 1 . . . . . . . . . . . 1 SILKY
2 90110-05201-00 BOLT, HEXAGON SOCKET
HEAD . . . . . . . . . . . . . . . . . . . . 6
3 90202-05180-00 WASHER, PLATE . . . . . . . . . . . 6
4 90183-05024-00 NUT, SPRING . . . . . . . . . . . . . . 4
5 90387-067N5-00 COLLAR . . . . . . . . . . . . . . . . . 4
6 90110-06202-00 BOLT, HEXAGON SOCKET
HEAD . . . . . . . . . . . . . . . . . . . . 4
7 90183-05024-00 NUT, SPRING . . . . . . . . . . . . . . 4
8 90202-05180-00 WASHER, PLATE . . . . . . . . . . . 2
9 90149-05299-00 SCREW . . . . . . . . . . . . . . . . . . 2
10 90167-05041-00 SCREW, TAPPING . . . . . . . . . . 4
11 3GM-2836A-00-00 BRACKET 1 . . . . . . . . . . . . . . . 1
12 3GM-2836E-50-00 BRACKET 2 . . . . . . . . . . . . . . . 1
13 3GM-2836F-00-00 BRACKET 3 . . . . . . . . . . . . . . . 1
14 3GM-2836G-00-00 BRACKET 4 . . . . . . . . . . . . . . . 1
15 90179-05523-00 NUT . . . . . . . . . . . . . . . . . . . . . 4
16 90202-05180-00 WASHER, PLATE . . . . . . . . . . . 4
17 90149-05299-00 SCREW . . . . . . . . . . . . . . . . . . 4
18 90480-35526-00 GROMMET . . . . . . . . . . . . . . . . 1
COWLING 3
Ref. Part
No. Number Description Qty Remarks
F5
FZR1000E_EC
