Yamaha FZR1000 (1993) [41/74] Rear shocks
![Yamaha FZR1000 (1993) [41/74] Rear shocks](/views2/1121431/page41/bg29.png)

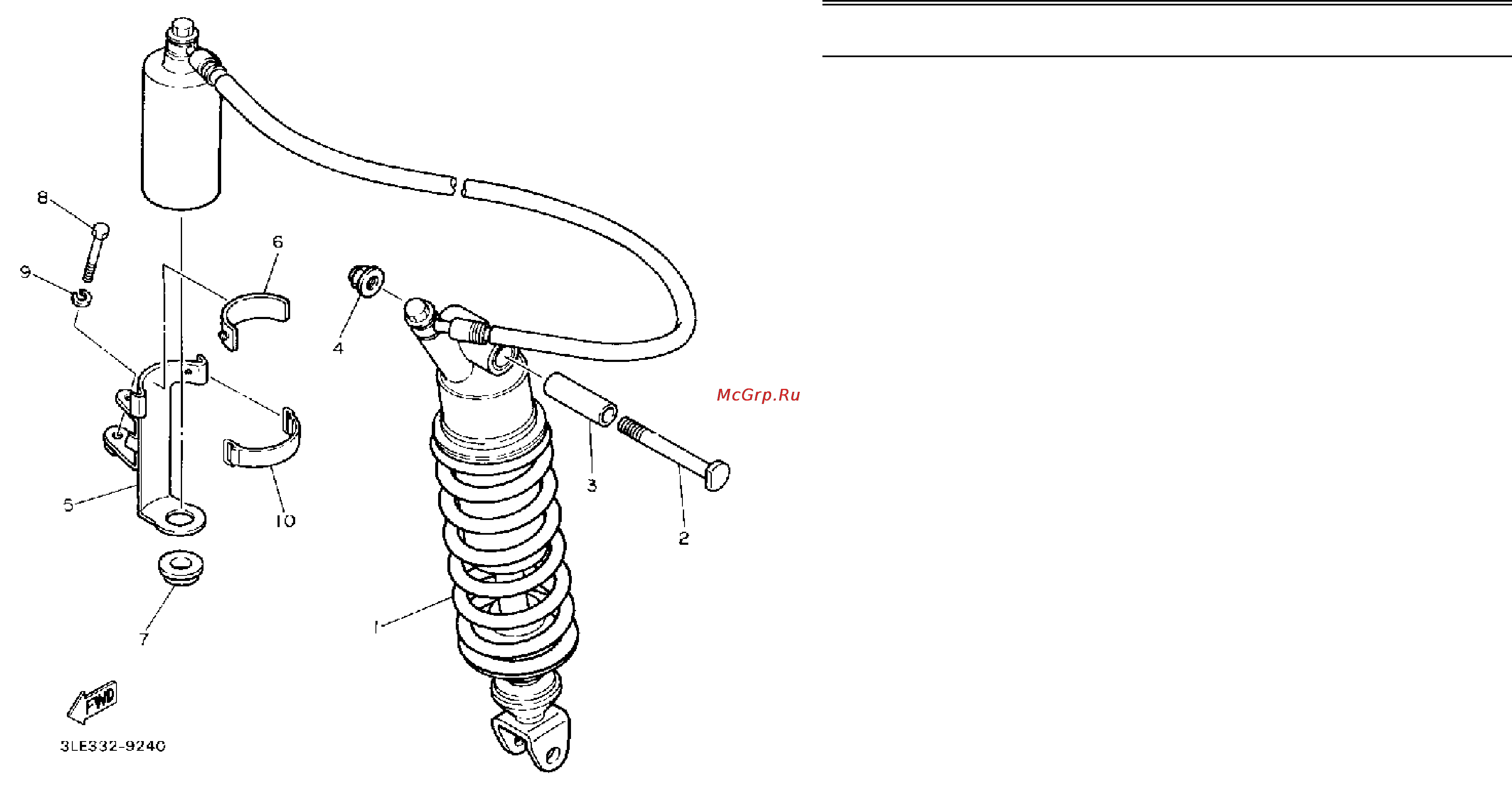

1 3LK-22210-01-00 SHOCK ABSORBER
ASSEMBLY, REAR . . . . . . . . . 1
2 90109-101F1-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
3 90387-102T0-00 COLLAR . . . . . . . . . . . . . . . . . 1
4 95601-10200-00 NUT, SELF-LOCKING . . . . . . . . 1
5 3GM-22262-00-00 HOLDER, SUB TANK . . . . . . . . 1
6 24X-22261-00-00 DAMPER, SUB TANK . . . . . . . . 1
7 90480-17359-00 GROMMET . . . . . . . . . . . . . . . . 1
8 97001-06040-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
9 92995-06100-00 WASHER, SPRING . . . . . . . . . . 1
10 24X-22262-00-00 HOLDER, SUB TANK . . . . . . . . 1
REAR SHOCKS
Ref. Part
No. Number Description Qty Remarks
