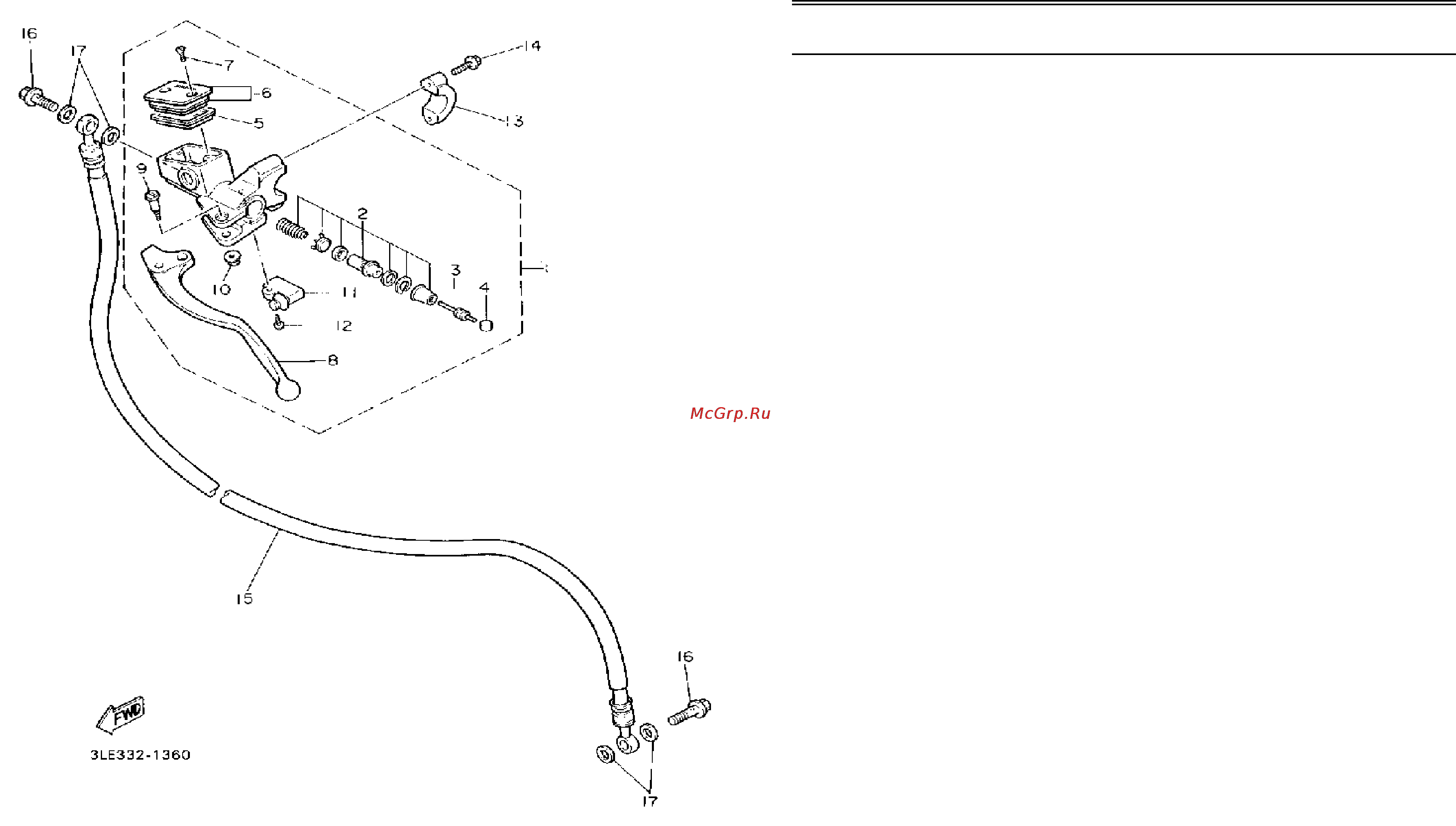

Yamaha FZR1000 (1993) [58/74] Front master cylinder 2

1 3SD-25870-11-00 MASTER CYLINDER SUB

ASSEMBLY . . . . . . . . . . . . . . . 1

2 3GM-W0099-00-00 . CYLINDER KIT, MASTER

(CLUTCH) . . . . . . . . . . . . . . . 1

3 3GM-26464-00-00 . ROD, PUSH . . . . . . . . . . . . . . 1

4 3GM-26455-00-00 . BUSH . . . . . . . . . . . . . . . . . . . 1

5 55U-25854-00-00 . DIAPHRAGM, RESERVOIR . . 1

6 3GM-W2585-20-00 . RESERVOIR CAP SET . . . . . . 1

7 98706-04012-00 . SCREW, FLAT HEAD . . . . . . . 2

8 3GM-83912-00-00 . LEVER 1 . . . . . . . . . . . . . . . . 1

9 90149-06287-00 . SCREW . . . . . . . . . . . . . . . . . 1

10 95706-06500-00 . NUT, FLANGE . . . . . . . . . . . . 1

11 3GM-83980-00-00 . FRONT STOP SWITCH

ASSEMBLY . . . . . . . . . . . . . . 1

12 98706-04016-00 . SCREW, FLAT HEAD . . . . . . . 1

13 56A-25867-00-00 BRACKET, MASTER CYLINDER 1

14 95026-06025-00 BOLT, FLANGE . . . . . . . . . . . . 2

15 2GH-26470-01-00 HOSE, CLUTCH . . . . . . . . . . . . 1

16 90401-10096-00 BOLT, UNION . . . . . . . . . . . . . 2

17 90201-10118-00 WASHER, PLATE . . . . . . . . . . . 4

FRONT MASTER CYLINDER 2

Ref. Part

No. Number Description Qty Remarks

E10

FZR1000E_EC
