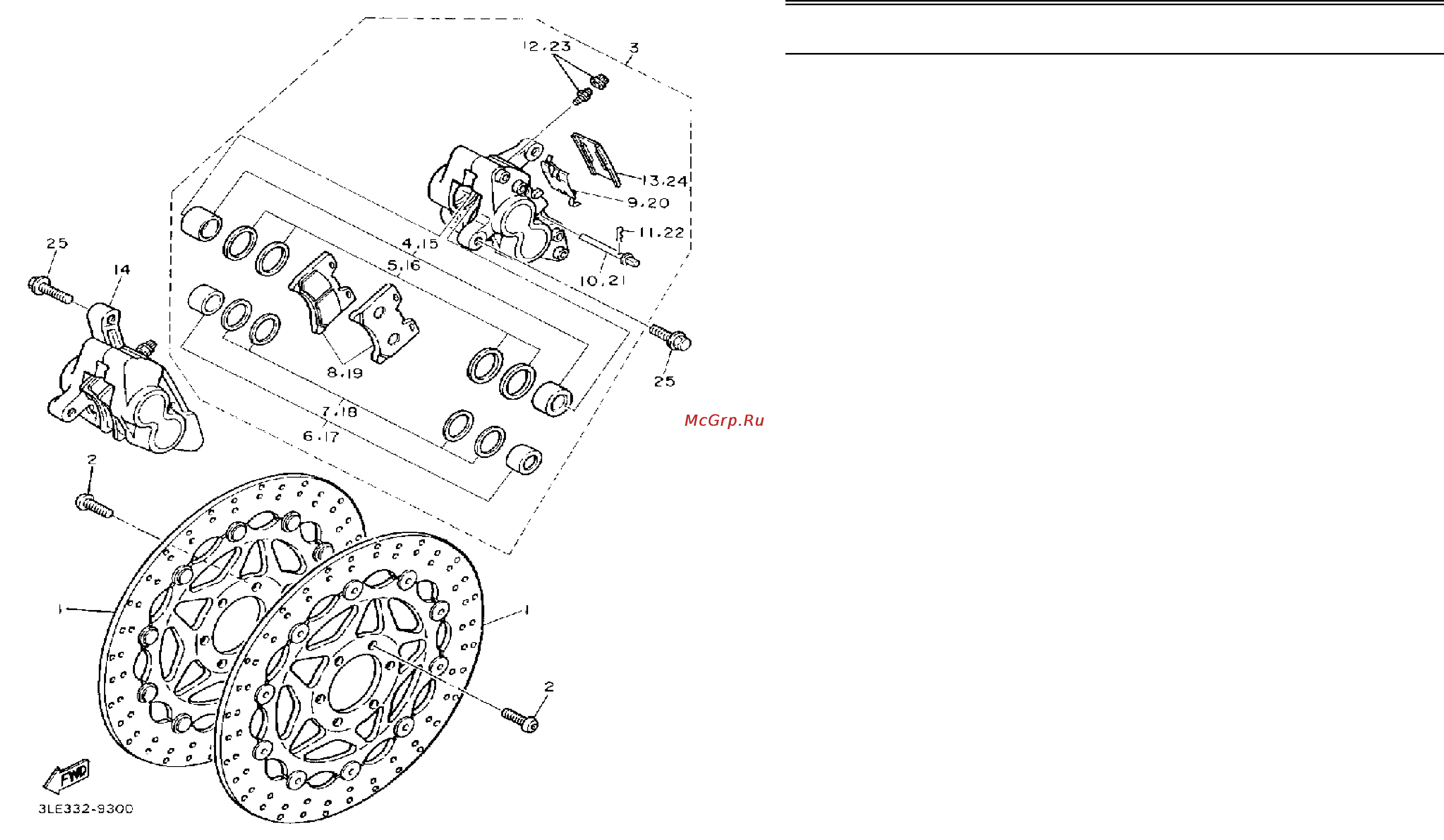

Yamaha FZR1000 (1993) [51/74] Front brake caliper

1 3GM-2581T-00-00 DISC BRAKE ASSEMBLYLEFT

(LEFT) . . . . . . . . . . . . . . . . . . . 2

2 90109-08718-00 BOLT . . . . . . . . . . . . . . . . . . . . 12

3 3GM-2580T-50-00 CALIPER ASSEMBLY LEFT

(LEFT) . . . . . . . . . . . . . . . . . . . 1

4 3GM-W0057-00-00 . PISTON ASSEMBLY, CALIPER 1

5 3GM-W0047-00-00 . . CALIPER SEAL KIT . . . . . . . 1

6 3GM-W0057-10-00 . PISTON ASSEMBLY, CALIPER 1

7 3GM-W0047-10-00 . . CALIPER SEAL KIT . . . . . . . 1

8 3GM-W0045-50-00 . BRAKE PAD KIT . . . . . . . . . . 1

9 3GM-25919-50-00 . SUPPORT, PAD . . . . . . . . . . . 1

10 3GM-25924-50-00 . PIN, PAD . . . . . . . . . . . . . . . . 2

11 3MA-25925-00-00 . CLIP . . . . . . . . . . . . . . . . . . . 2

12 1J3-W0048-00-00 . BLEED SCREW KIT . . . . . . . . 1

13 1KT-25836-00-00 . COVER, DUST . . . . . . . . . . . . 1

14 3GM-2580U-50-00 CALIPER ASSEMBLY RIGHT

(RIGHT) . . . . . . . . . . . . . . . . . . 1

15 3GM-W0057-00-00 . PISTON ASSEMBLY, CALIPER 1

16 3GM-W0047-00-00 . . CALIPER SEAL KIT . . . . . . . 1

17 3GM-W0057-10-00 . PISTON ASSEMBLY, CALIPER 1

18 3GM-W0047-10-00 . . CALIPER SEAL KIT . . . . . . . 1

19 3GM-W0045-50-00 . BRAKE PAD KIT . . . . . . . . . . 1

20 3GM-25919-50-00 . SUPPORT, PAD . . . . . . . . . . . 1

21 3GM-25924-50-00 . PIN, PAD . . . . . . . . . . . . . . . . 2

22 3MA-25925-00-00 . CLIP . . . . . . . . . . . . . . . . . . . 2

23 1J3-W0048-00-00 . BLEED SCREW KIT . . . . . . . . 1

24 1KT-25836-00-00 . COVER, DUST . . . . . . . . . . . . 1

25 90105-10638-00 BOLT, WASHER BASED . . . . . 4

FRONT BRAKE CALIPER

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
