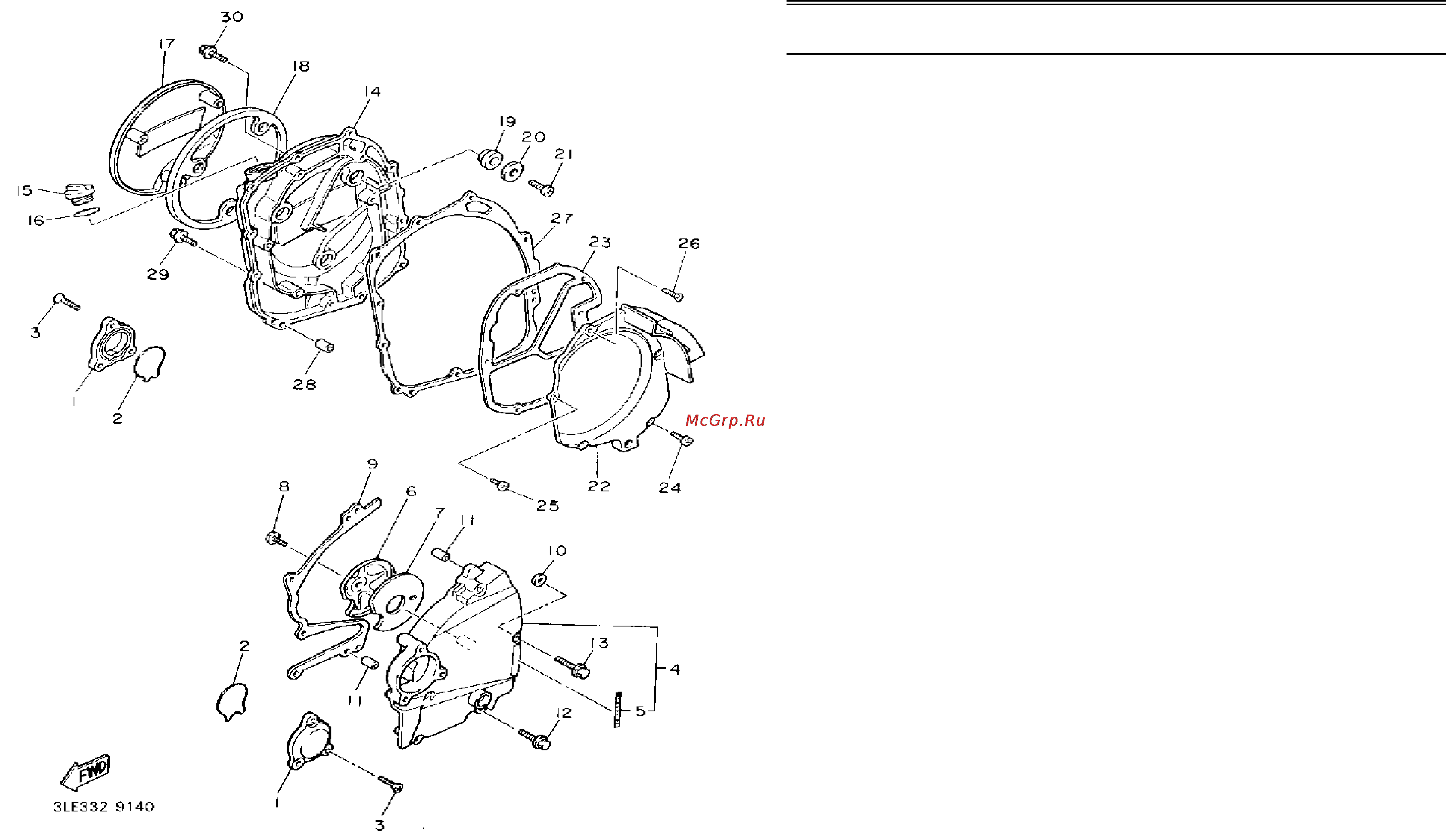

Yamaha FZR1000 (1993) [22/74] Crankcase cover 1

1 3GM-15416-00-00 COVER, OIL PUMP . . . . . . . . . 2

2 1AE-15456-00-00 GASKET, OIL PUMP COVER 1 2

3 90152-06014-00 SCREW, COUNTERSUNK . . . . 6

4 3GM-15410-00-00 CRANKCASE COVER

ASSEMBLY 1 . . . . . . . . . . . . . . 1

5 2GH-15435-00-00 . EMBLEM . . . . . . . . . . . . . . . . 1

6 3GM-15427-00-00 COVER, CAP 2 . . . . . . . . . . . . 1

7 1AE-15316-00-00 DAMPER, ENGINE MOUNT 1 . . 1

8 92011-06010-00 BOLT, BUTTON HEAD . . . . . . . 1

9 4BH-15451-00-00 GASKET, CRANKCASE

COVER 1 . . . . . . . . . . . . . . . . . 1

10 4CR-15467-00-00 GASKET . . . . . . . . . . . . . . . . . 1

11 99510-08012-00 PIN, DOWEL . . . . . . . . . . . . . . 2

12 95023-06040-00 BOLT, FLANGE (1YW) . . . . . . . 3

13 95021-06050-00 BOLT, FLANGE . . . . . . . . . . . . 2

14 3GM-15421-00-00 COVER, CRANKCASE 2 . . . . . 1

15 3F9-15362-00-00 PLUG, OIL LEVEL . . . . . . . . . . 1

16 93210-27778-00 O-RING . . . . . . . . . . . . . . . . . . 1

17 3GM-15417-00-00 COVER, CAP . . . . . . . . . . . . . . 1

18 3GM-15449-00-00 RING, RUBBER . . . . . . . . . . . . 1

19 4H7-15486-00-00 GROMMET . . . . . . . . . . . . . . . . 3

20 90209-06096-00 WASHER . . . . . . . . . . . . . . . . . 3

21 98580-06010-00 SCREW, PAN HEAD

(92503-06010) . . . . . . . . . . . . . 3

22 3GM-15346-00-00 BREATHER 1 . . . . . . . . . . . . . . 1

23 4BH-15463-00-00 GASKET, CARBURETOR

COVER 2 . . . . . . . . . . . . . . . . . 1

24 98580-06020-00 SCREW . . . . . . . . . . . . . . . . . . 4

25 90157-06104-00 SCREW, PAN HEAD . . . . . . . . 1

26 90152-06024-00 SCREW, COUNTERSUNK . . . . 1

CONTINUED ON NEXT FRAME

➤

CRANKCASE COVER 1

Ref. Part

No. Number Description Qty Remarks

B10

FZR1000E_EC
