Yamaha FZR1000 (1993) [8/74] Ref part no number description qty remarks
![Yamaha FZR1000 (1993) [8/74] Ref part no number description qty remarks](/views2/1121431/page8/bg8.png)
12 1HX-12169-90-00 PAD, ADJUSTING 2 (2.10) . . . . 20 UR
1HX-12169-E0-00 PAD, ADJUSTING 2 (2.15) . . . . 20 UR
1HX-12169-G0-00 PAD, ADJUSTING 2 (2.20) . . . . 20 UR
1HX-12169-J0-00 PAD, ADJUSTING 2 (2.25) . . . . 20 UR
1HX-12169-L0-00 PAD, ADJUSTING 2 (2.30) . . . . 20 UR
1HX-12169-N0-00 PAD, ADJUSTING 2 (2.35) . . . . 20 UR
1HX-12169-T0-00 PAD, ADJUSTING 2 (2.40) . . . . 20 UR
13 2NK-12153-02-00 LIFTER, VALVE . . . . . . . . . . . . 12 UR
2NK-12153-09-00 LIFTER, VALVE (O/S) . . . . . . . . 12 UR
14 1WG-12153-09-00 LIFTER, VALVE (O/S) . . . . . . . . 8 UR
1WG-12153-21-00 LIFTER, VALVE . . . . . . . . . . . . 8 UR BLUE

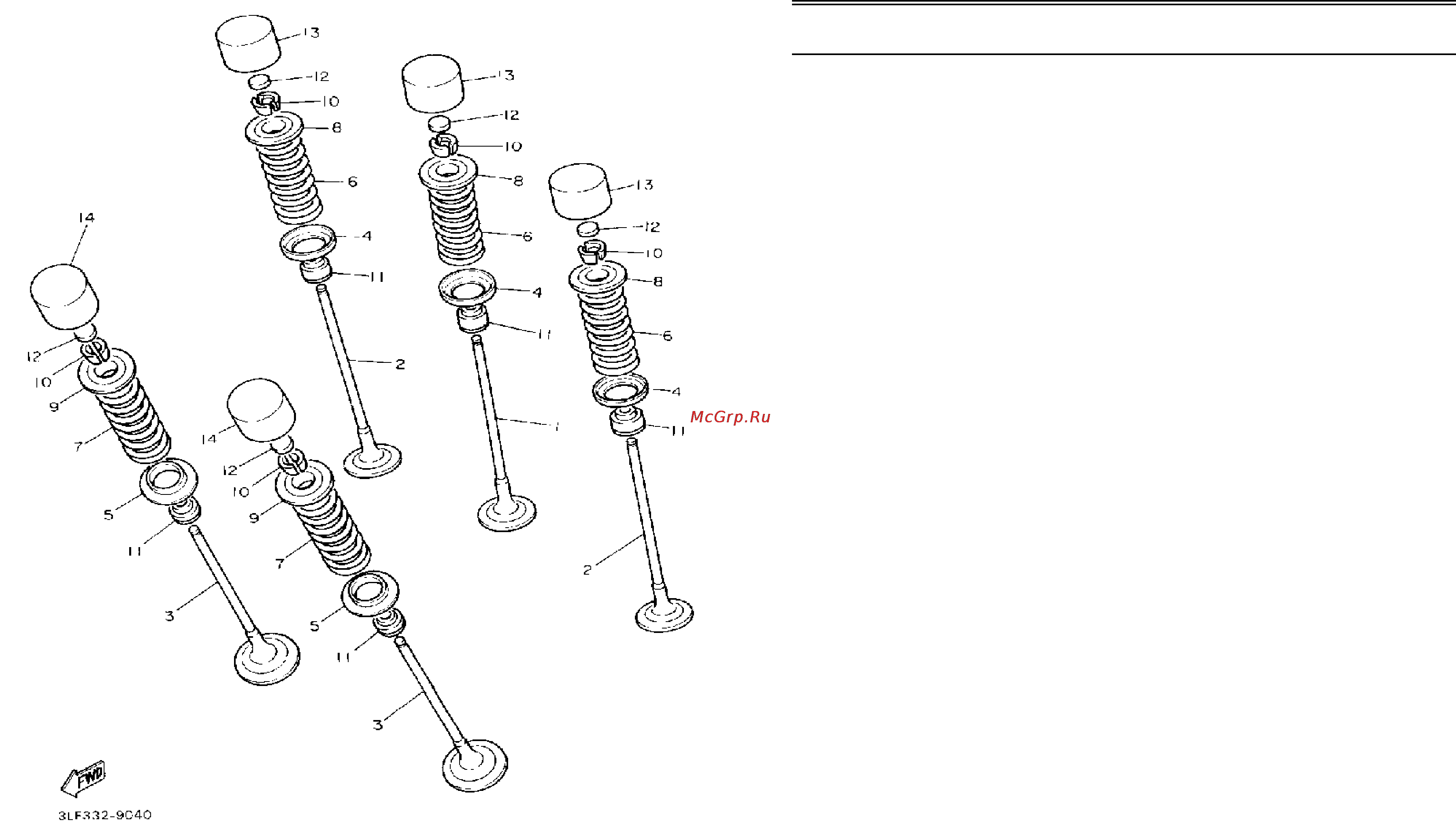

VALVE
Ref. Part
No. Number Description Qty Remarks
A8
FZR1000E_EC
