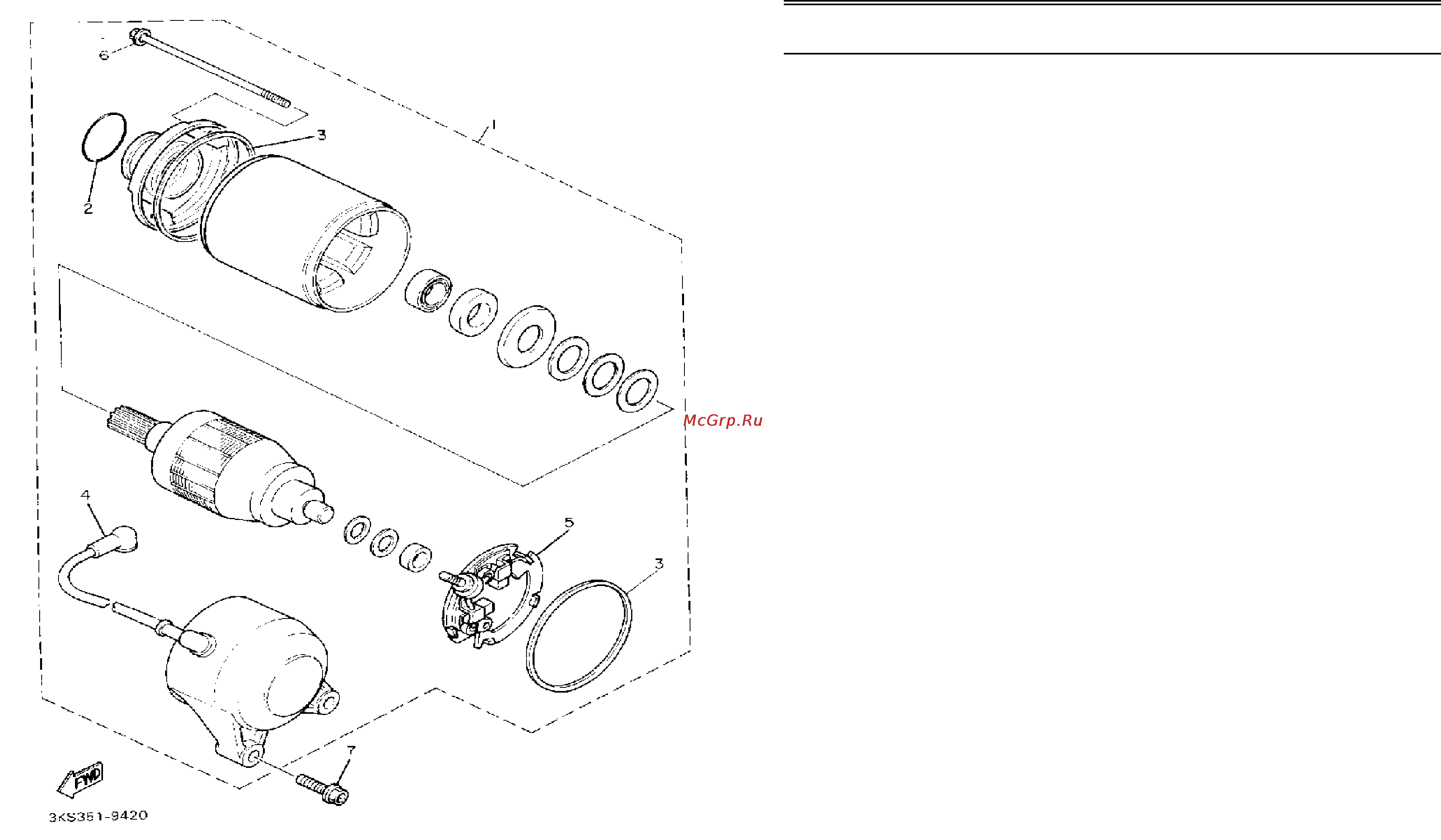

Yamaha FZR1000 (1993) [27/74] Starting motor
![Yamaha FZR1000 (1993) [27/74] Starting motor](/views2/1121431/page27/bg1b.png)
1 3GM-81800-50-00 STARTING MOTOR ASSEMBLY 1
2 26H-81847-00-00 . O-RING . . . . . . . . . . . . . . . . . 1
3 11H-81844-00-00 . GASKET . . . . . . . . . . . . . . . . 2
4 3GM-81815-50-00 . CORD, STARTER MOTOR . . . 1
5 3KS-81840-00-00 . BRUSH HOLDER ASSEMBLY 1
6 3HE-81826-00-00 . BOLT . . . . . . . . . . . . . . . . . . . 2
7 95811-06025-00 BOLT, FLANGE . . . . . . . . . . . . 2
STARTING MOTOR
Ref. Part
No. Number Description Qty Remarks
C3
FZR1000E_EC
