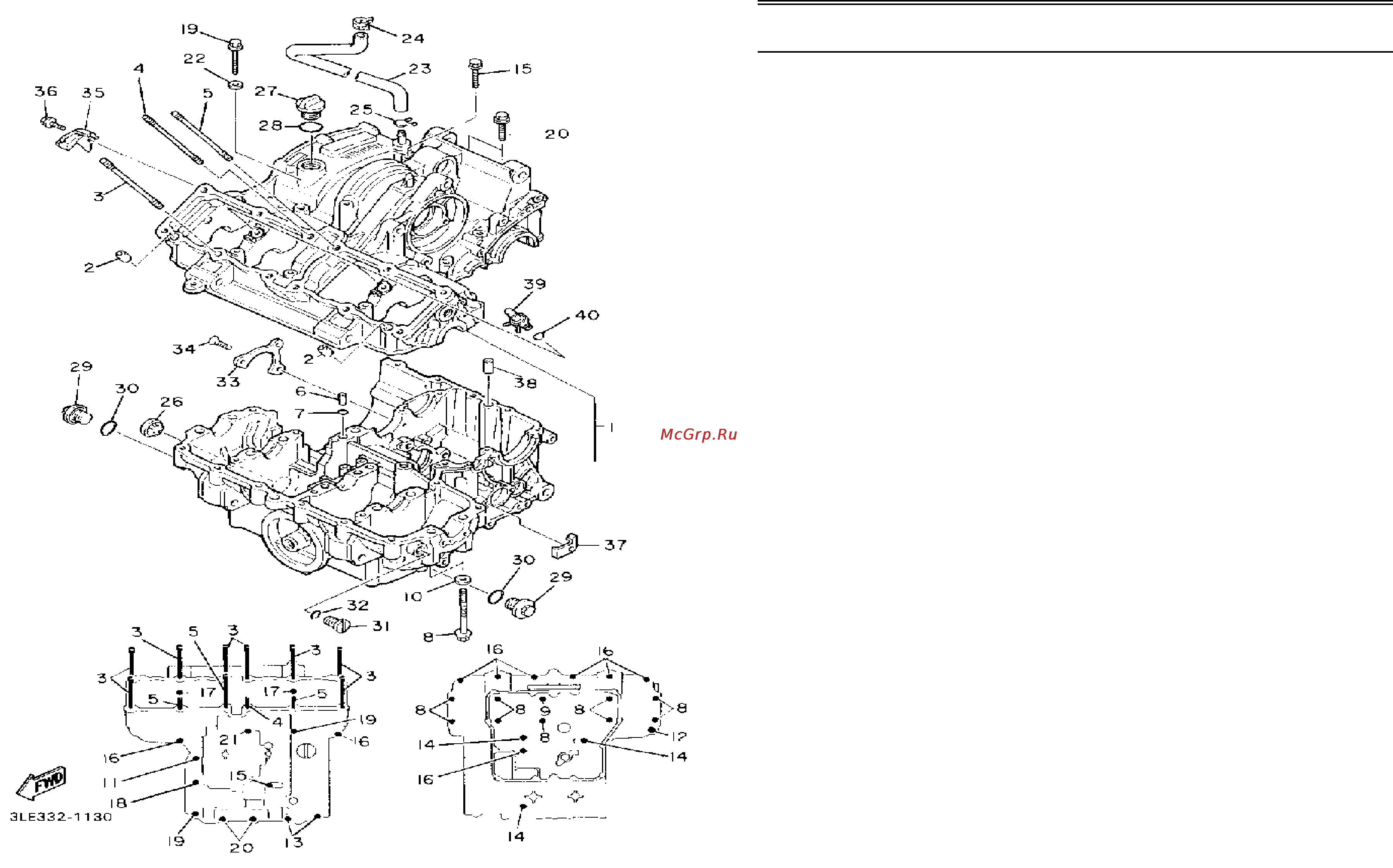

Yamaha FZR1000 (1993) [21/74] Crankcase
![Yamaha FZR1000 (1993) [21/74] Crankcase](/views2/1121431/page21/bg15.png)
30 93210-20573-00 O-RING . . . . . . . . . . . . . . . . . . 2
31 90340-14068-00 PLUG, STRAIGHT SCREW . . . . 1
32 93210-14369-00 O-RING . . . . . . . . . . . . . . . . . . 1
33 1AE-15383-00-00 PLATE, BEARING COVER . . . . 1
34 90151-06014-00 SCREW, COUNTERSUNK . . . . 3
35 90462-08184-00 CLAMP . . . . . . . . . . . . . . . . . . 1
36 95023-06012-00 BOLT, FLANGE . . . . . . . . . . . . 1
37 90462-08158-00 CLAMP . . . . . . . . . . . . . . . . . . 1
38 99510-12016-00 PIN, DOWEL . . . . . . . . . . . . . . 1
39 2TK-15105-00-00 NOZZLE ASSEMBLY . . . . . . . . 2
40 93210-06632-00 O-RING . . . . . . . . . . . . . . . . . . 2
41 90116-10569-00 BOLT, STUD . . . . . . . . . . . . . . 2
CRANKCASE
Ref. Part
No. Number Description Qty Remarks
B9
FZR1000E_EC
