Yamaha FZR1000 (1993) [62/74] Cowling 1

1 3GM-2831W-50-00 STAY, MIRROR 1 . . . . . . . . . . . 1

2 91316-06016-00 BOLT, SOCKET HEAD . . . . . . . 2

3 3GM-28381-50-00 WINDSHIELD . . . . . . . . . . . . . . 1

4 90149-05273-00 SCREW . . . . . . . . . . . . . . . . . . 6

5 3HX-28215-00-00 WASHER, SPECIAL . . . . . . . . . 6

6 95706-05500-00 NUT, FLANGE . . . . . . . . . . . . . 6

7 3JJ-2835Y-00-00 LABEL, CAUTION . . . . . . . . . . 1

8 90480-14229-00 GROMMET . . . . . . . . . . . . . . . . 4

9 90179-06499-00 NUT . . . . . . . . . . . . . . . . . . . . . 4

10 3GM-Y283G-H0-2X BODY, FRONT UPPER 1 . . . . . 1 SILKY

11 3LG-28390-30-00 . GRPHC SET, COWLING . . . . . 1

12 99231-00025-00 . EMBLEM . . . . . . . . . . . . . . . . 1

13 3GM-28356-50-00 STAY 1 . . . . . . . . . . . . . . . . . . 1

14 90105-08652-00 BOLT, WASHER BASED . . . . . 2

15 2GH-26280-00-00 MIRROR ASSEMBLYASSY

(LEFT) . . . . . . . . . . . . . . . . . . . 1 WHITE

16 2GH-26290-00-00 MIRROR ASSEMBLYASSY

(RIGHT) . . . . . . . . . . . . . . . . . . 1 WHITE

17 3CV-26299-00-00 PLATE, MIRROR FITNG . . . . . . 2

18 3CV-26298-00-00 PLATE, MIRROR FITTING 1 . . . 2

19 98706-06030-00 SCREW, FLAT HEAD . . . . . . . . 4

20 90176-06055-00 NUT, CROWN . . . . . . . . . . . . . 4

21 3GM-2838N-51-00 DUCT 1 . . . . . . . . . . . . . . . . . . 1

22 3GM-2838R-51-00 DUCT 2 . . . . . . . . . . . . . . . . . . 1

23 3GM-2838T-01-00 DUCT 3 . . . . . . . . . . . . . . . . . . 1

24 3GM-2838U-01-00 DUCT 4 . . . . . . . . . . . . . . . . . . 1

25 3GM-2836H-00-00 BRACKET 5 . . . . . . . . . . . . . . . 1

26 3GM-2836J-00-00 BRACKET 6 . . . . . . . . . . . . . . . 1

27 97706-40512-00 SCREW, TAPPING . . . . . . . . . . 4

CONTINUED ON NEXT FRAME

➤

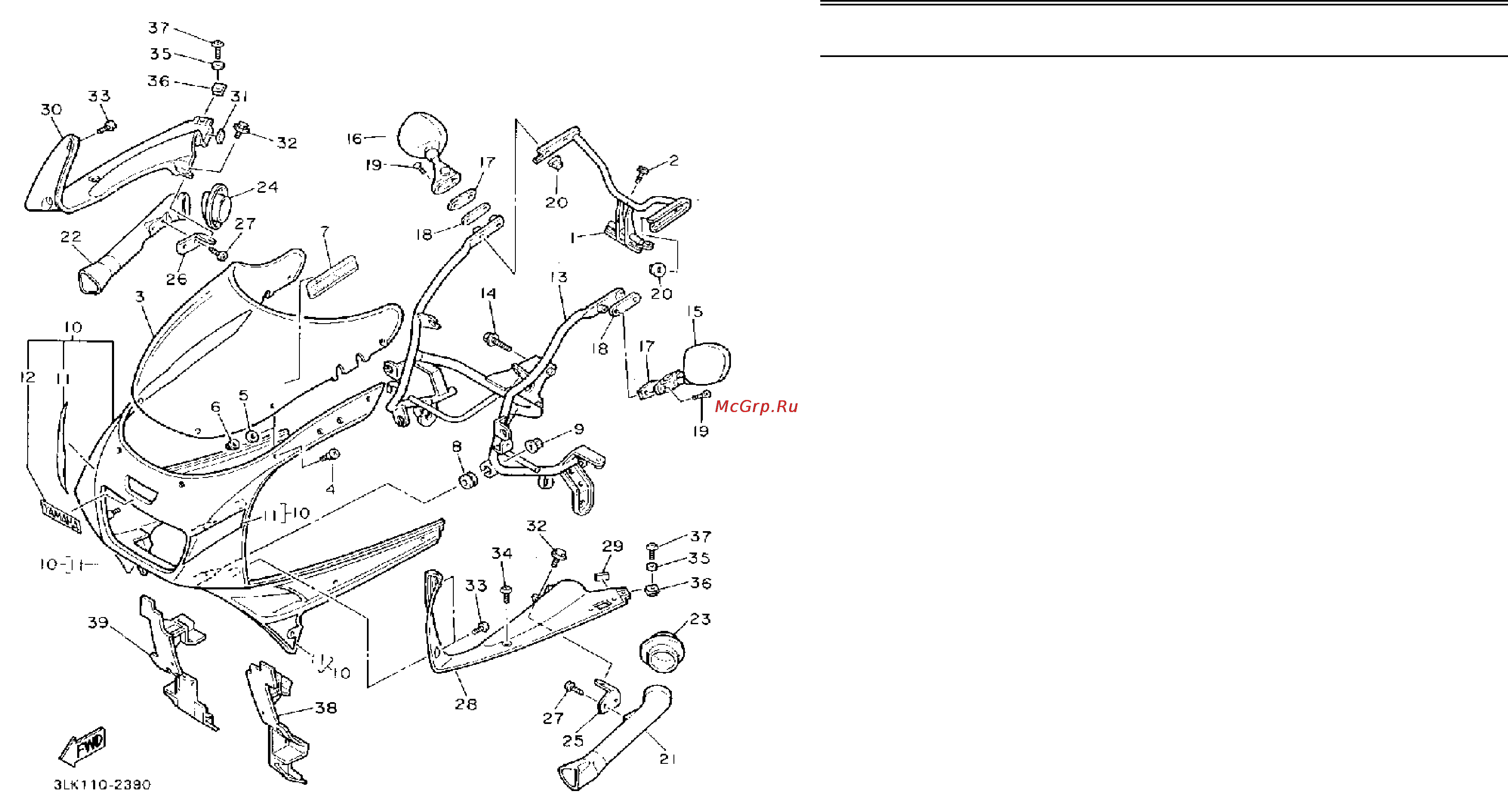

COWLING 1

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
