Yamaha FZR1000 (1993) [7/74] Continued on next frame
![Yamaha FZR1000 (1993) [7/74] Continued on next frame](/views2/1121431/page7/bg7.png)

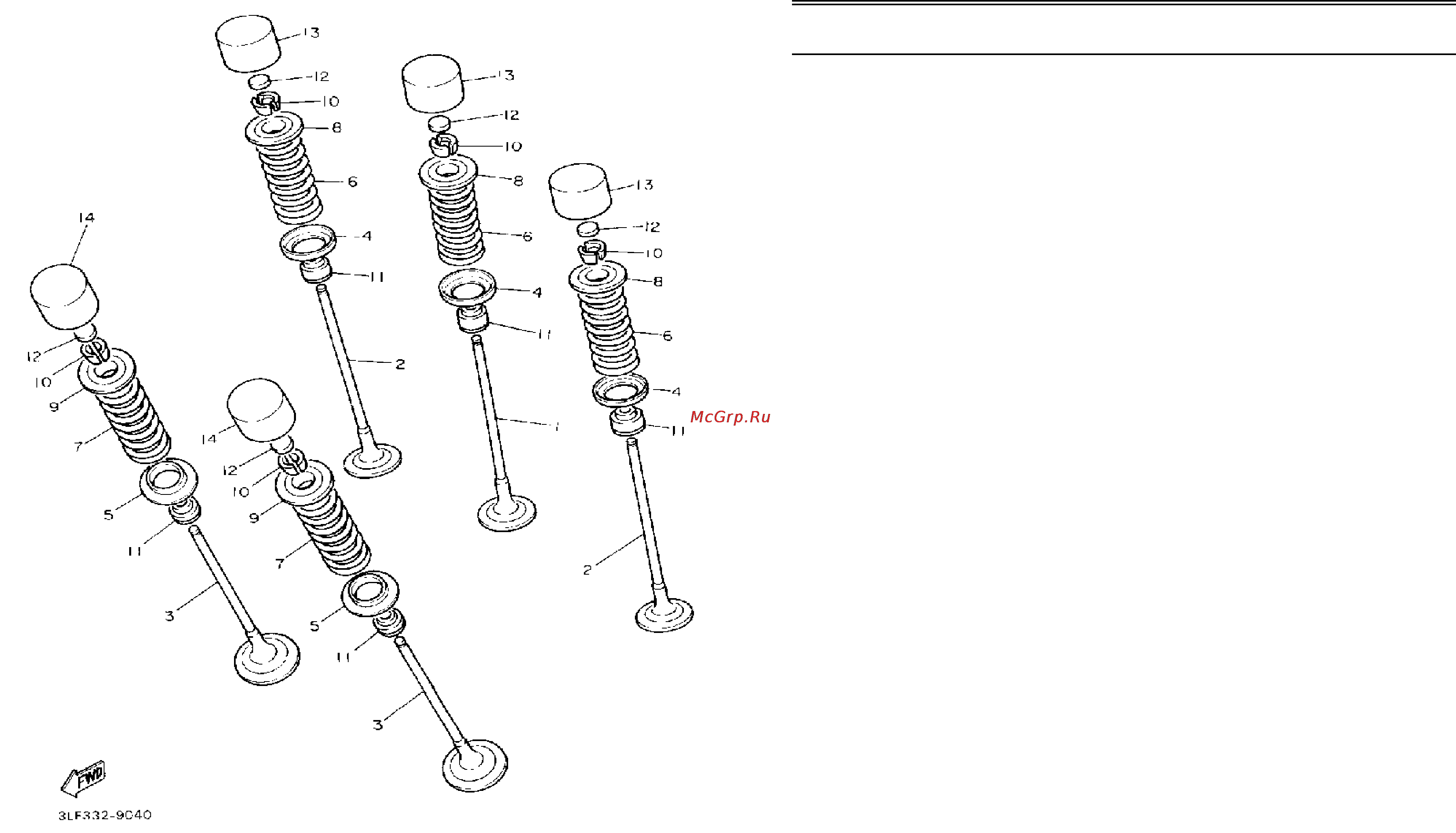

1 3GM-12111-00-00 VALVE, INTAKE . . . . . . . . . . . . 4
2 3GM-12112-00-00 VALVE, INTAKE 2 . . . . . . . . . . 8
3 3GM-12121-00-00 VALVE, EXHAUST . . . . . . . . . . 8
4 3GM-12116-00-00 SEAT, VALVE SPRING . . . . . . . 12
5 3GM-12126-00-00 SEAT, VALVE SPRING 2 . . . . . 8
6 3GM-12113-00-00 SPRING, VALVE INNER . . . . . . 12
7 3GM-12114-00-00 SPRING, VALVE OUTER . . . . . 8
8 3GM-12117-00-00 RETAINER, VALVE SPRING . . 12
9 1WG-12117-00-00 RETAINER, VALVE SPRING . . 8
10 1WG-12118-00-00 COTTER, VALVE . . . . . . . . . . . 40
11 1WG-12119-00-00 SEAL, VALVE STEM . . . . . . . . 20
12 1HX-12168-00-00 PAD, ADJUSTING 2 (1.20) . . . . 20 UR
1HX-12168-20-00 PAD, ADJUSTING 2 (1.25) . . . . 20 UR
1HX-12168-40-00 PAD, ADJUSTING 2 (1.30) . . . . 20 UR
1HX-12168-60-00 PAD, ADJUSTING 2 (1.35) . . . . 20 UR
1HX-12168-80-00 PAD, ADJUSTING 2 (1.40) . . . . 20 UR
1HX-12168-A0-00 PAD, ADJUSTING 2 (1.45) . . . . 20 UR
1HX-12168-F0-00 PAD, ADJUSTING 2 (1.50) . . . . 20 UR
1HX-12168-H1-00 PAD, ADJUSTING 2 (1.55) . . . . 20 UR
1HX-12168-K1-00 PAD, ADJUSTING 2 (1.60) . . . . 20 UR
1HX-12168-M1-00 PAD, ADJUSTING 2 (1.65) . . . . 20 UR
1HX-12168-R1-00 PAD, ADJUSTING 2 (1.70) . . . . 20 UR
1HX-12168-U1-00 PAD, ADJUSTING 2 (1.75) . . . . 20 UR
1HX-12168-W1-00 PAD, ADJUSTING 2 (1.80) . . . . 20 UR
1HX-12168-Y1-00 PAD, ADJUSTING 2 (1.85) . . . . 20 UR
1HX-12169-11-00 PAD, ADJUSTING 2 (1.90) . . . . 20 UR
1HX-12169-31-00 PAD, ADJUSTING 2 (1.95) . . . . 20 UR
1HX-12169-50-00 PAD, ADJUSTING 2 (2.00) . . . . 20 UR
1HX-12169-70-00 PAD, ADJUSTING 2 (2.05) . . . . 20 UR
CONTINUED ON NEXT FRAME
➤
VALVE
Ref. Part
No. Number Description Qty Remarks
A7
FZR1000E_EC
