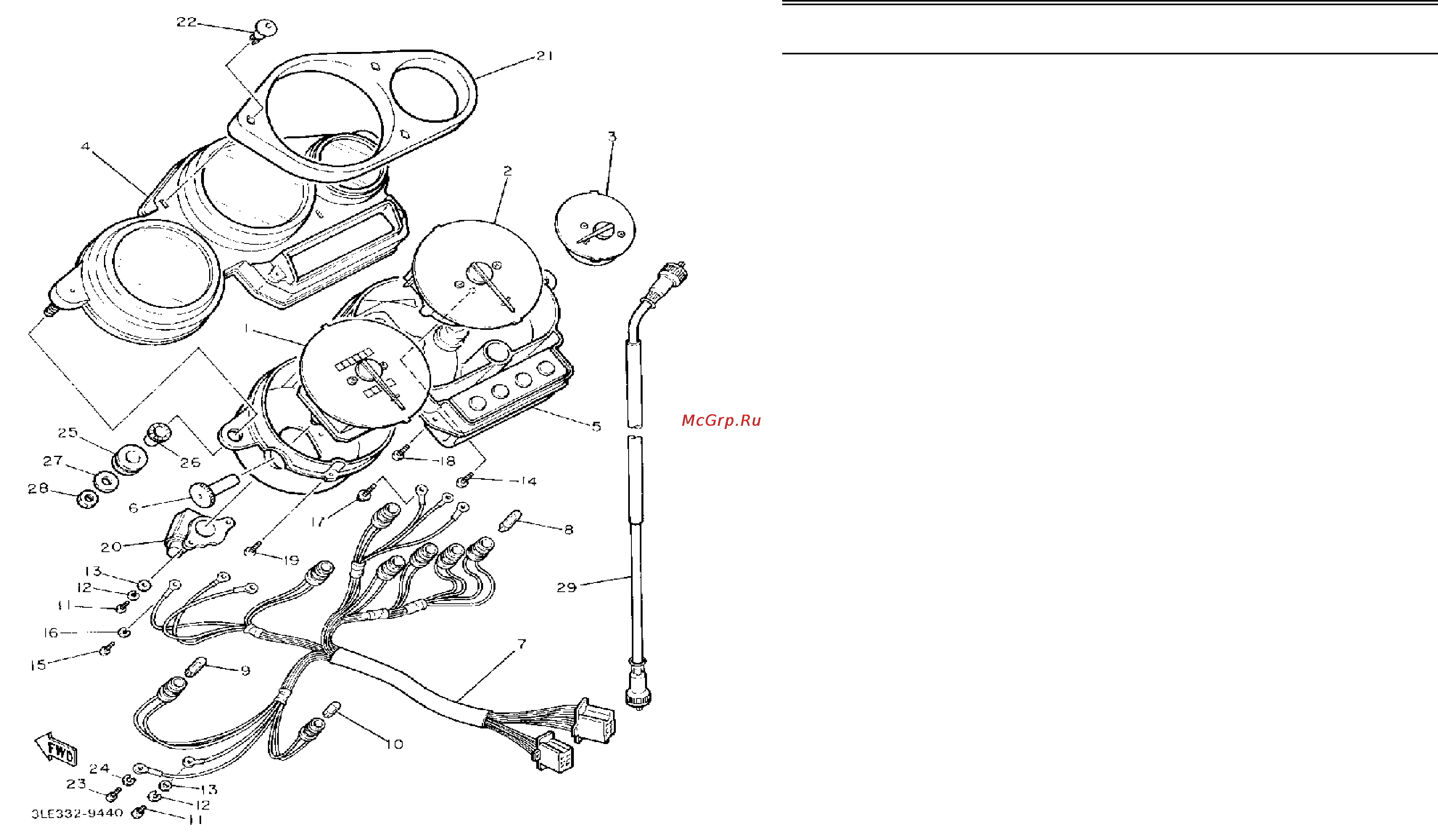

Yamaha FZR1000 (1993) [66/74] Continued on next frame

1 3LK-83570-10-00 SPEEDOMETER ASSEMBLY . . 1

2 3GM-83540-00-00 TACHOMETER ASSEMBLY . . . 1

3 3GM-83590-00-00 WATER TEMP

METERASSEMBLY . . . . . . . . . 1

4 3GM-83559-00-00 COVER, METER . . . . . . . . . . . . 1

5 3LK-8353H-10-00 CASE, INNER . . . . . . . . . . . . . . 1

6 2GH-83578-00-00 KNOB, TRIP METER . . . . . . . . 1

7 3LG-83509-10-00 SOCKET CORD ASSEMBLY . . 1

8 4G1-84744-00-00 BULB, MTR.12V3.4W . . . . . . . . 4

9 3GM-83517-00-00 BULB (12V-1.7W) . . . . . . . . . . . 3

10 2GV-83517-00-00 BULB (12V-1.7W, T6.5) . . . . . . 1

11 98580-04010-00 SCREW, PAN HEAD . . . . . . . . 4

12 92901-04100-00 WASHER, SPRING . . . . . . . . . . 4

13 92901-04600-00 WASHER, PLATE . . . . . . . . . . . 4

14 90167-04057-00 SCREW, TAPPING . . . . . . . . . . 2

15 98580-03010-00 SCREW, PAN HEAD

(98502-03010) . . . . . . . . . . . . . 3

16 92990-03100-00 WASHER, SPRING

(92901-03100) . . . . . . . . . . . . . 3

17 90159-03102-00 SCREW, WITH WASHER . . . . . 3

18 90164-04008-00 SCREW, TAPPING . . . . . . . . . . 4

19 90167-03058-00 SCREW, TAPPING . . . . . . . . . . 1

20 3GM-83520-00-00 SOCKET CORD ASSEMBLY . . 1

21 3GM-83513-00-00 DAMPER . . . . . . . . . . . . . . . . . 1

22 3GM-83525-00-00 CLIP . . . . . . . . . . . . . . . . . . . . 3

23 98501-03012-00 SCREW, PAN HEAD . . . . . . . . 1

24 92990-03100-00 WASHER, SPRING

(92901-03100) . . . . . . . . . . . . . 1

25 5J0-83513-00-00 DAMPER . . . . . . . . . . . . . . . . . 2

26 90387-062Y6-00 COLLAR . . . . . . . . . . . . . . . . . 2

CONTINUED ON NEXT FRAME

➤

METER

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
