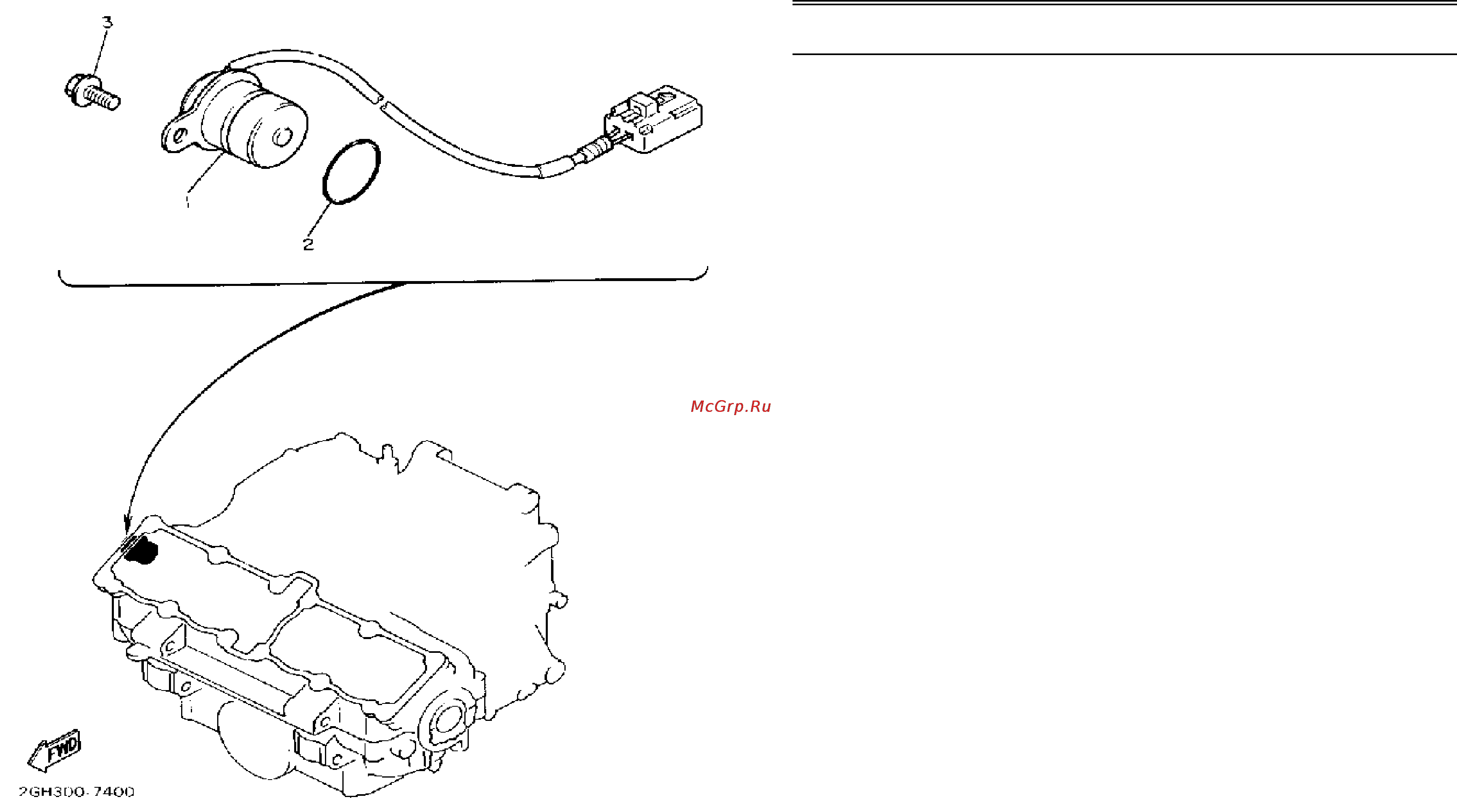

Yamaha FZR1000 (1993) [25/74] Pick up coil governor
![Yamaha FZR1000 (1993) [25/74] Pick up coil governor](/views2/1121431/page25/bg19.png)
1 3GM-81670-00-00 PICK-UP ASSEMBLY . . . . . . . . 1
2 93210-19216-00 O-RING . . . . . . . . . . . . . . . . . . 1
3 95023-06012-00 BOLT, FLANGE . . . . . . . . . . . . 1
PICK UP COIL - GOVERNOR
Ref. Part
No. Number Description Qty Remarks
C1
FZR1000E_EC
