Yamaha FZR1000 (1993) [67/74] Ref part no number description qty remarks
![Yamaha FZR1000 (1993) [67/74] Ref part no number description qty remarks](/views2/1121431/page67/bg43.png)
27 90201-06059-00 WASHER, PLATE . . . . . . . . . . . 2
28 95316-06600-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
29 3GM-83550-00-00 SPEEDOMETER CABLE
ASSEMBLY . . . . . . . . . . . . . . . 1

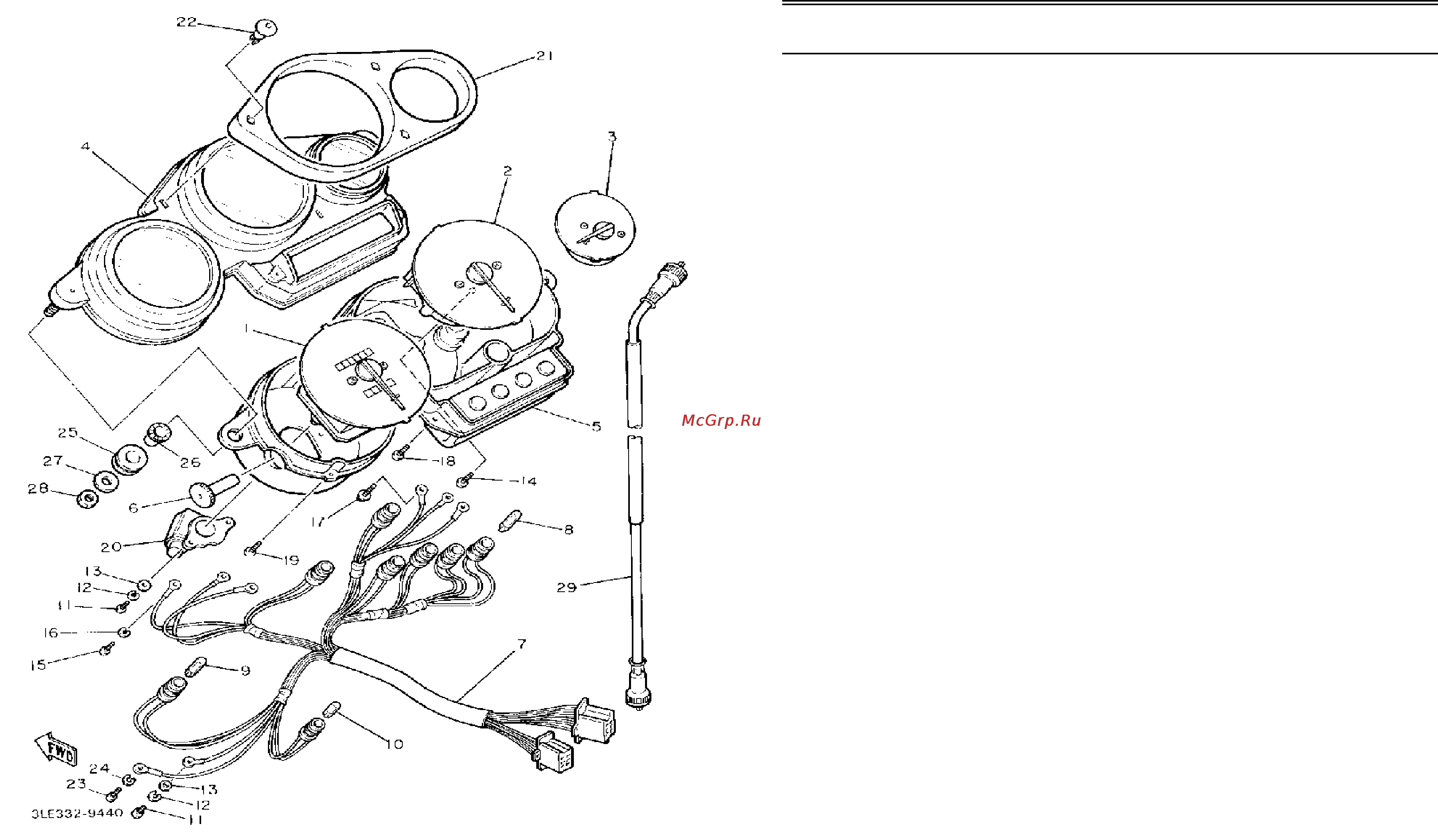

METER
Ref. Part
No. Number Description Qty Remarks
F7
FZR1000E_EC
