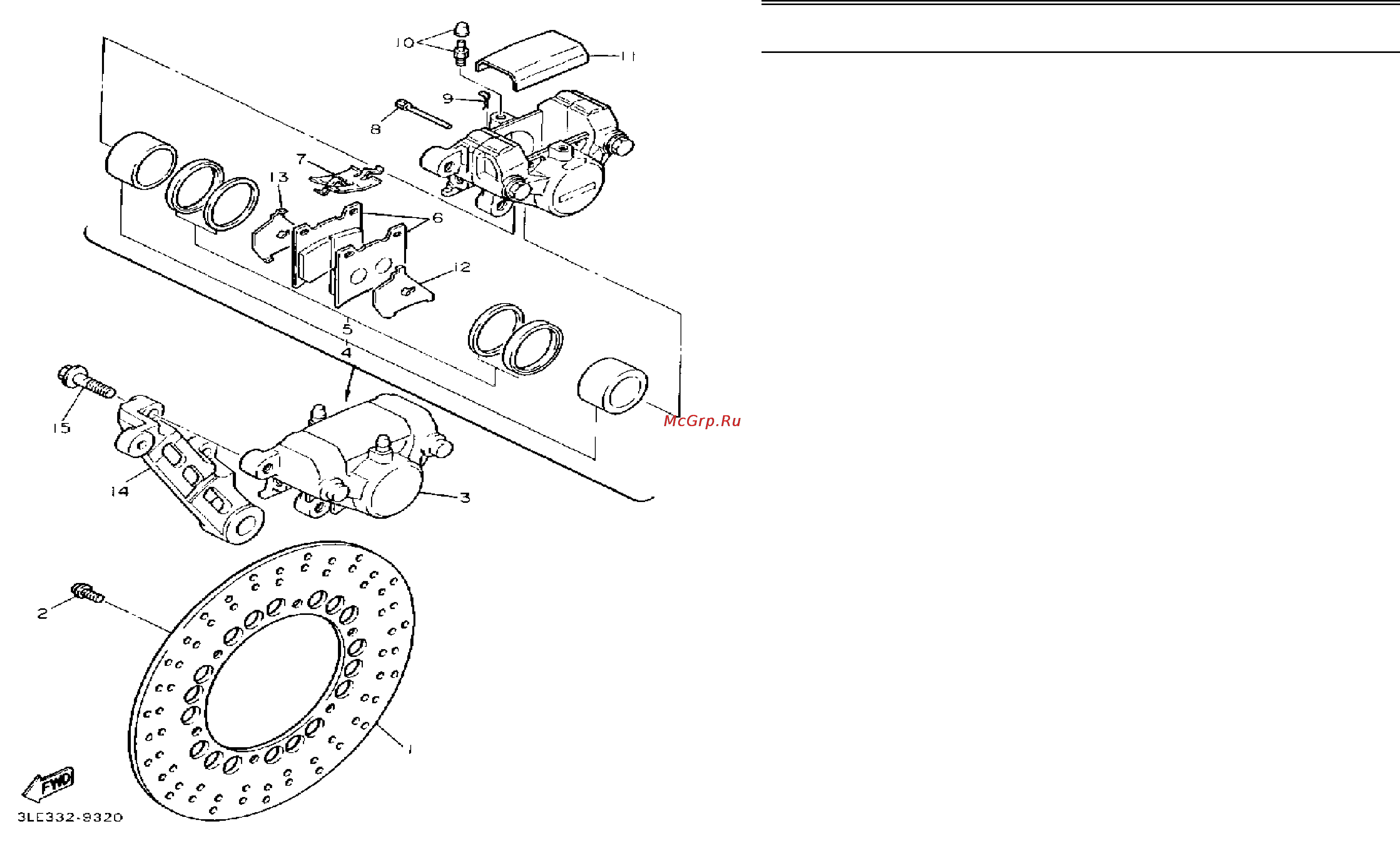

Yamaha FZR1000 (1993) [54/74] Rear brake caliper
![Yamaha FZR1000 (1993) [54/74] Rear brake caliper](/views2/1121431/page54/bg36.png)
1 2KT-25831-00-00 DISC, BRAKE (RIGHT) . . . . . . . 1
2 90109-08718-00 BOLT . . . . . . . . . . . . . . . . . . . . 6
3 3GM-2580W-00-00 CALIPER ASSEMBLY REA 2 . . 1
4 31A-W0057-00-00 . PISTON ASSEMBLY, CALIPER 1
5 31A-W0047-00-00 . . CALIPER SEAL KIT . . . . . . . 1
6 26H-W0045-11-00 . BRAKE PAD KIT . . . . . . . . . . 1
7 1WG-25919-00-00 . SUPPORT, PAD . . . . . . . . . . . 1
8 3HE-25924-00-00 . PIN, PAD . . . . . . . . . . . . . . . . 2
9 3HE-25925-00-00 . CLIP . . . . . . . . . . . . . . . . . . . 2
10 1J3-W0048-00-00 . BLEED SCREW KIT . . . . . . . . 2
11 51J-25836-00-00 . COVER, DUST . . . . . . . . . . . . 1
12 1FK-25827-00-00 . SHIM, CALIPER . . . . . . . . . . . 1
13 1FK-25828-00-00 . SHIM, CALIPER . . . . . . . . . . . 1
14 3GM-25819-00-00 BRACKET, CALIPER . . . . . . . . 1
15 90105-10638-00 BOLT, WASHER BASED . . . . . 2
REAR BRAKE CALIPER
Ref. Part
No. Number Description Qty Remarks
E6
FZR1000E_EC
