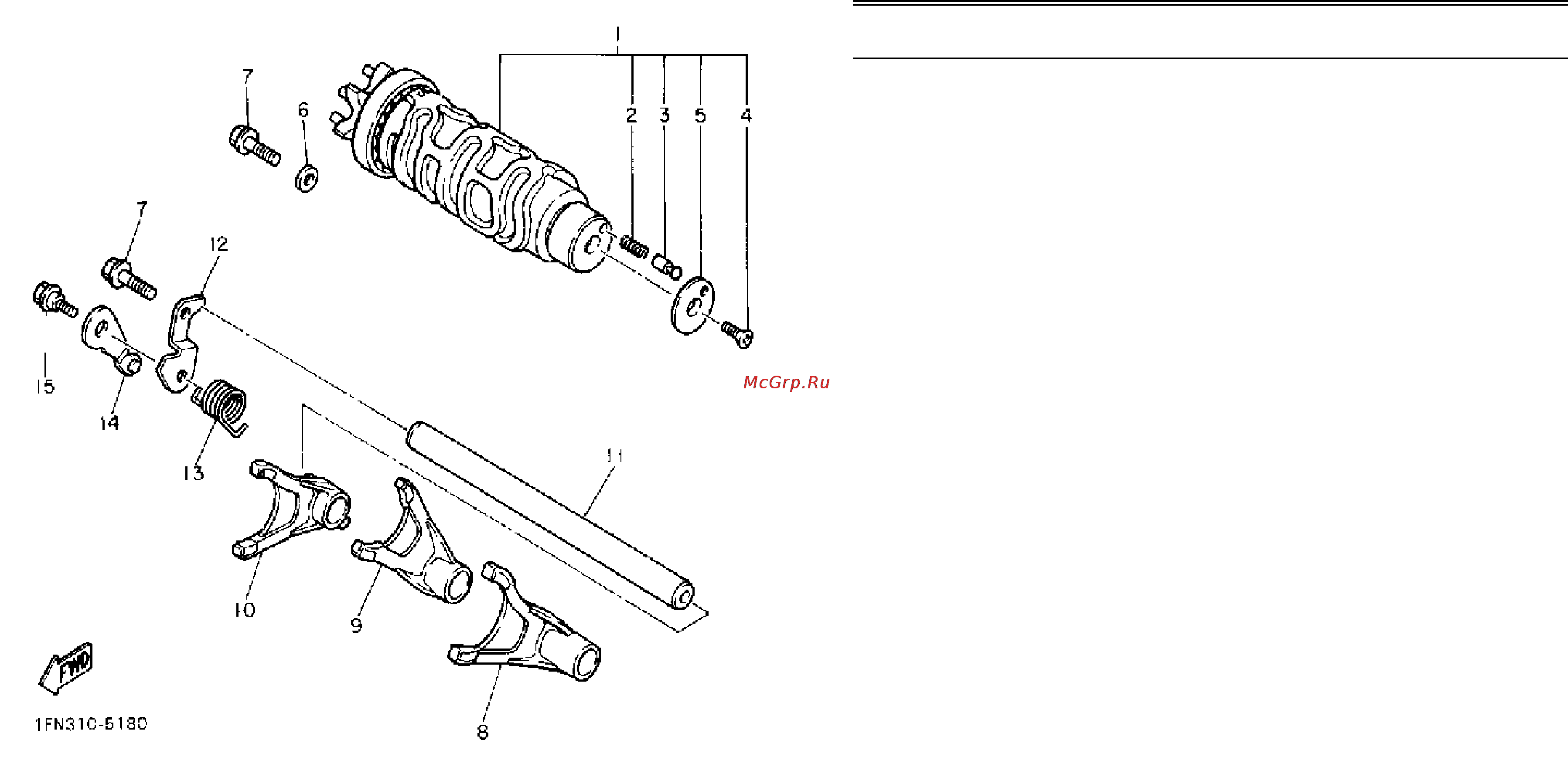

1 2GH-18540-00-00 SHIFT CAM ASSEMBLY . . . . . . 1
2 90501-06022-00 . SPRING, COMPRESSION . . . . 1
3 278-18542-00-00 . POINT, NEUTRAL . . . . . . . . . 1
4 98701-05012-00 . SCREW, FLAT HEAD . . . . . . . 1
5 278-18566-00-00 . PLATE, SIDE 2 . . . . . . . . . . . . 1
6 90201-06643-00 WASHER, PLATE . . . . . . . . . . . 1
7 95811-06016-00 BOLT, FLANGE (95822-06016) . 2
8 2GH-18511-00-00 FORK, SHIFT 1 . . . . . . . . . . . . 1
9 2GH-18512-00-00 FORK, SHIFT 2 . . . . . . . . . . . . 1
10 2GH-18513-00-00 FORK, SHIFT 3 . . . . . . . . . . . . 1
11 12R-18531-00-00 BAR, SHIF FRK GDE 1 . . . . . . 1
12 1AE-18536-00-00 STOPPER, SHIFT BAR . . . . . . . 1
13 90508-26681-00 SPRING, TORSION . . . . . . . . . 1
14 36Y-18140-00-00 STOPPER LEVER ASSEMBLY . 1
15 90109-063F8-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
SHIFT CAM - FORK
