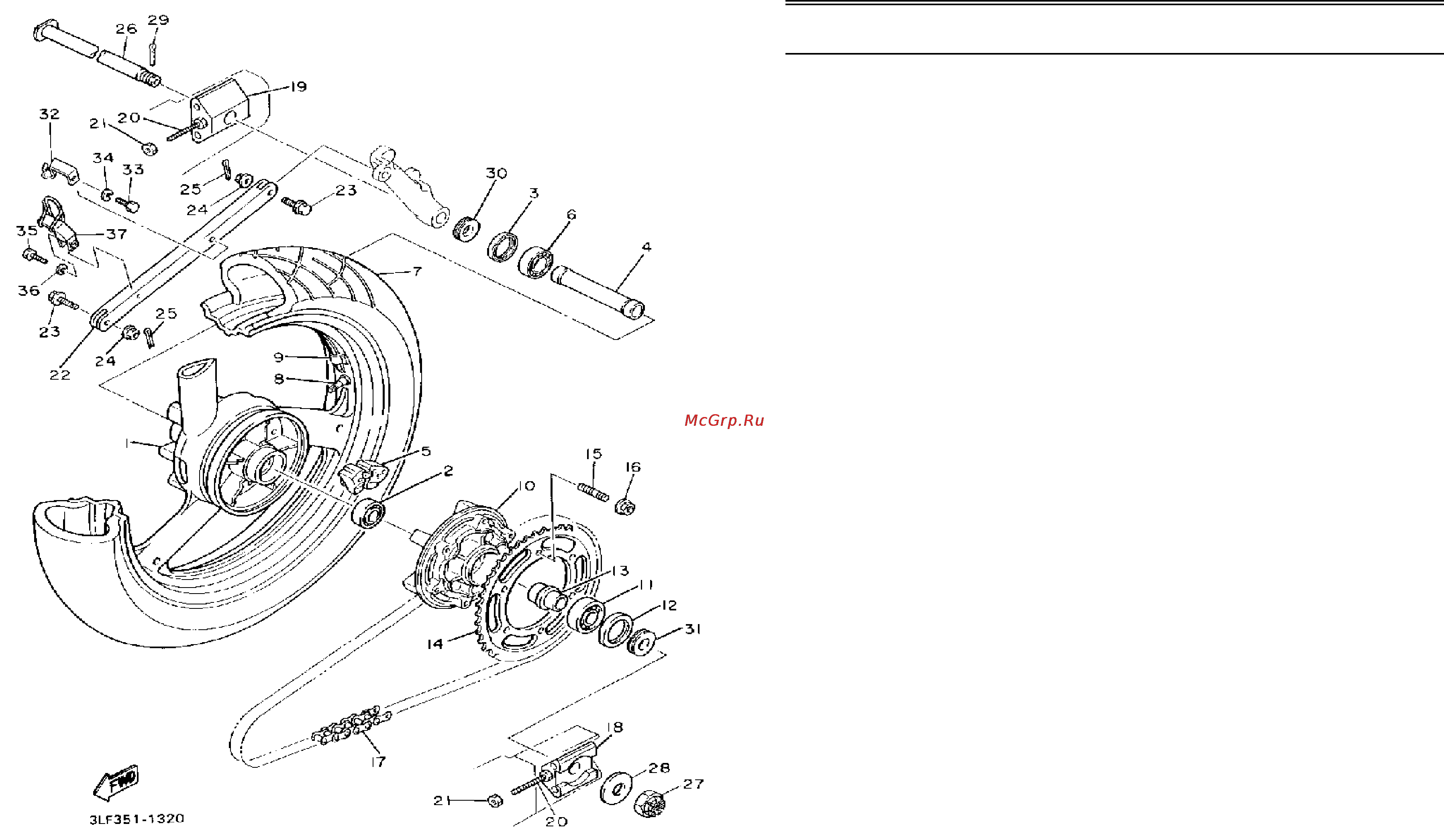

Yamaha FZR1000 (1993) [53/74] Rear wheel
![Yamaha FZR1000 (1993) [53/74] Rear wheel](/views2/1121431/page53/bg35.png)
27 90171-18051-00 NUT, CASTLE . . . . . . . . . . . . . 1
28 90201-186M4-00 WASHER, PLATE . . . . . . . . . . . 1
29 91401-40040-00 PIN, COTTER . . . . . . . . . . . . . . 1
30 90387-202X9-00 COLLAR . . . . . . . . . . . . . . . . . 1
31 90387-203X0-00 COLLAR . . . . . . . . . . . . . . . . . 1
32 3GM-25876-00-00 HOLDER, BRAKE HOSE 2 . . . . 1
33 97011-06010-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
34 92995-06100-00 WASHER, SPRING . . . . . . . . . . 1
35 97021-06030-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
36 92995-06100-00 WASHER, SPRING . . . . . . . . . . 1
37 3GM-25875-50-00 HOLDER, BRAKE HOSE 1 . . . . 1
REAR WHEEL
Ref. Part
No. Number Description Qty Remarks
E5
FZR1000E_EC
