Yamaha FZR1000 (1993) [5/74] Crankshaft piston
![Yamaha FZR1000 (1993) [5/74] Crankshaft piston](/views2/1121431/page5/bg5.png)
11 3GM-11656-10-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 8 UR BLACK
3GM-11656-20-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 8 UR BROWN
3GM-11656-30-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 8 UR GREEN

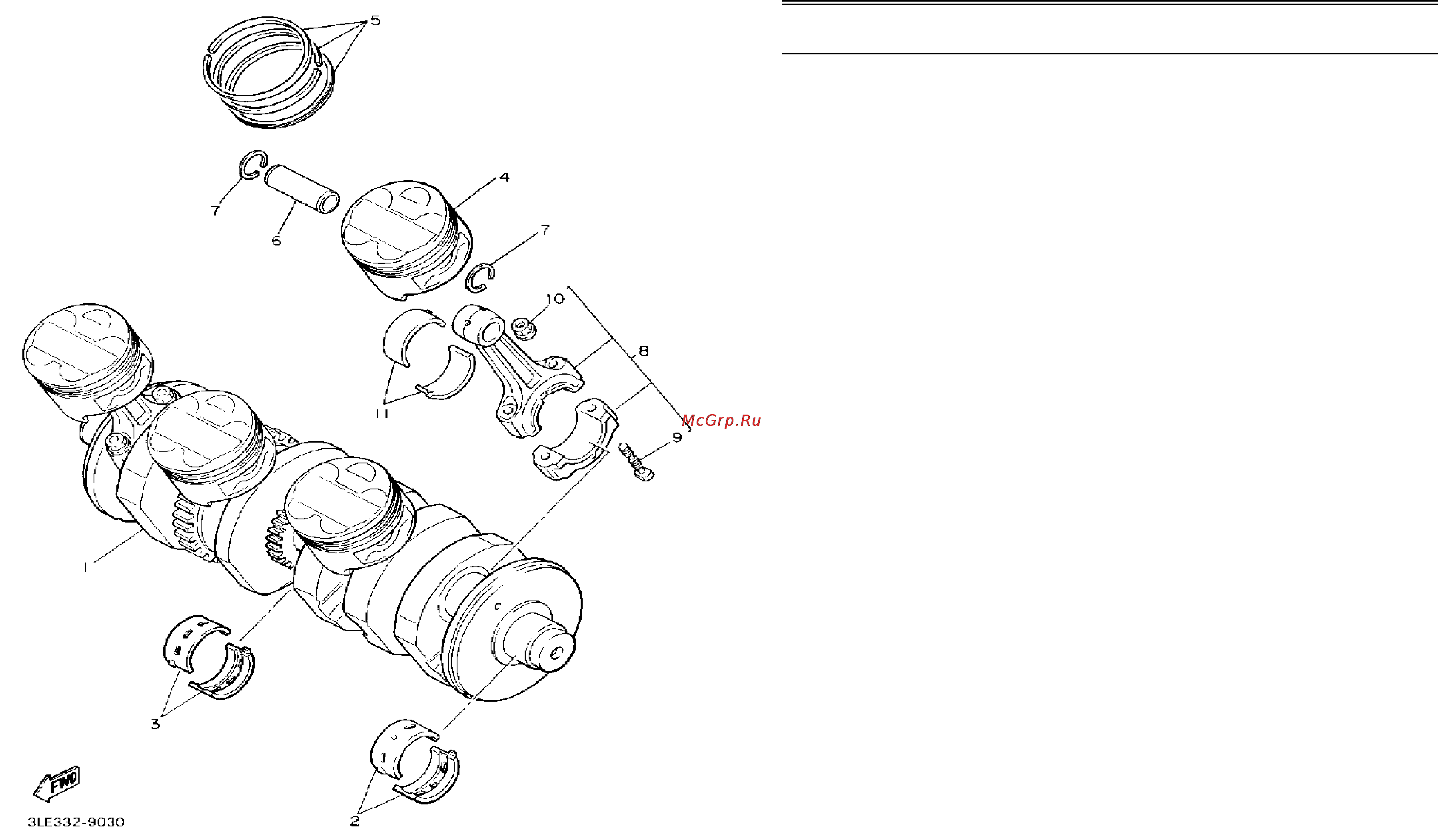

CRANKSHAFT - PISTON
Ref. Part
No. Number Description Qty Remarks
A5
FZR1000E_EC
