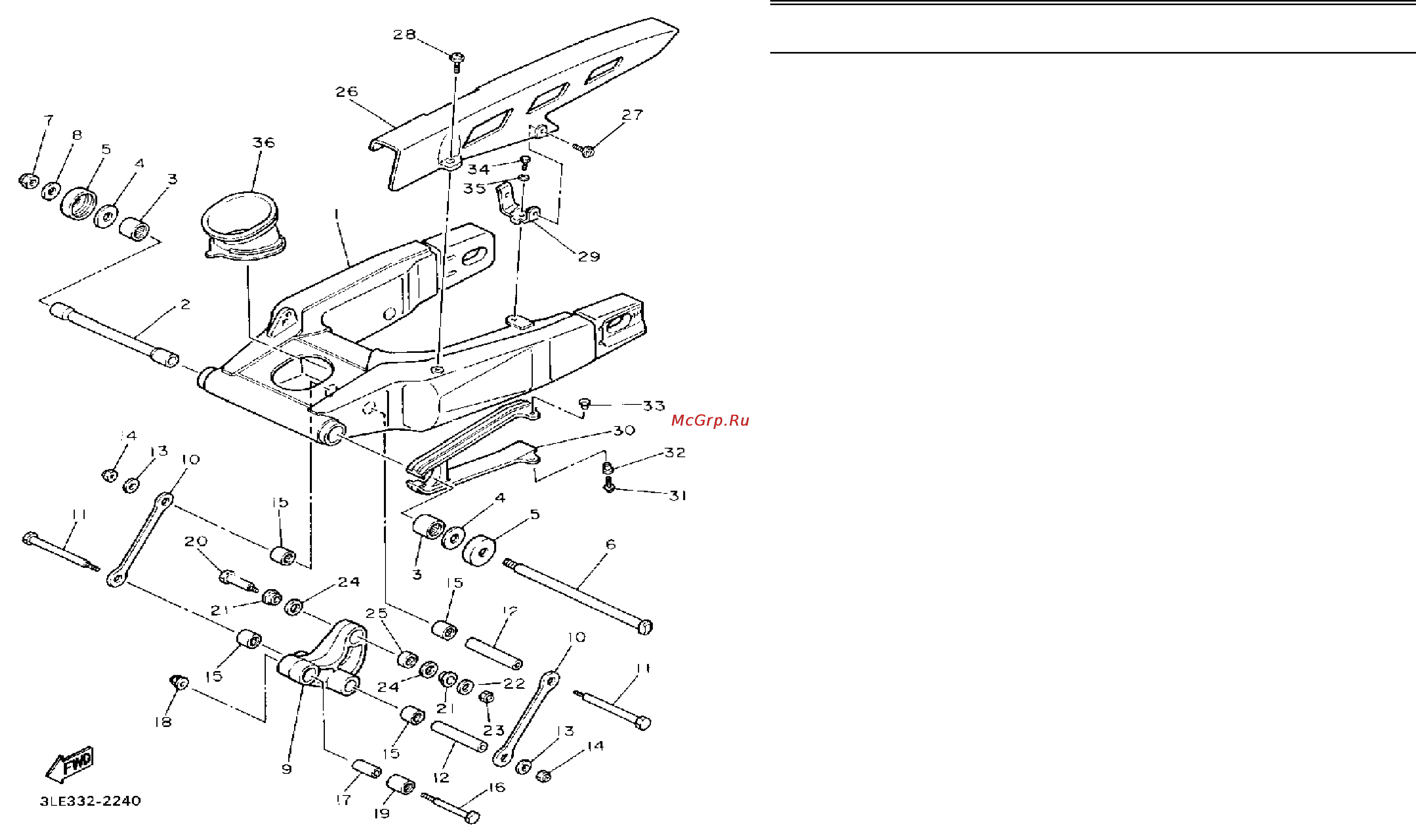

Yamaha FZR1000 (1993) [39/74] Swing arm

1 3GM-22110-10-P1 REAR ARM . . . . . . . . . . . . . . . 1

2 3GM-22184-00-00 BUSH . . . . . . . . . . . . . . . . . . . . 1

3 93317-52865-00 BEARING, CYLINDRICAL . . . . 2

4 3GM-22127-00-00 SHIM . . . . . . . . . . . . . . . . . . . . 2

5 3GM-22128-00-00 COVER, THRUST 1 . . . . . . . . . 2

6 3GM-22141-00-00 SHAFT, PIVOT . . . . . . . . . . . . . 1

7 90185-18104-00 NUT, SELF-LOCKING . . . . . . . . 1

8 90201-186M4-00 WASHER, PLATE . . . . . . . . . . . 1

9 3GM-2217A-00-00 ARM, RELAY . . . . . . . . . . . . . . 1

10 3GM-2217M-00-00 ARM 1 . . . . . . . . . . . . . . . . . . . 2

11 90101-12673-00 BOLT . . . . . . . . . . . . . . . . . . . . 2

12 90387-126T1-00 COLLAR . . . . . . . . . . . . . . . . . 2

13 90201-126A7-00 WASHER, PLATE . . . . . . . . . . . 2

14 95611-12100-00 NUT, U . . . . . . . . . . . . . . . . . . . 2

15 93317-41761-00 BEARING . . . . . . . . . . . . . . . . . 4

16 90109-101F1-00 BOLT . . . . . . . . . . . . . . . . . . . . 1

17 90387-100T8-00 COLLAR . . . . . . . . . . . . . . . . . 1

18 95601-10200-00 NUT, SELF-LOCKING . . . . . . . . 1

19 93317-42060-00 BEARING . . . . . . . . . . . . . . . . . 1

20 90101-10659-00 BOLT . . . . . . . . . . . . . . . . . . . . 1

21 90387-124W2-00 COLLAR . . . . . . . . . . . . . . . . . 2

22 90201-10437-00 WASHER, PLATE . . . . . . . . . . . 1

23 95611-10100-00 NUT, U . . . . . . . . . . . . . . . . . . . 1

24 93101-16131-00 OIL SEAL . . . . . . . . . . . . . . . . . 2

25 93399-99919-00 BEARING . . . . . . . . . . . . . . . . . 1

26 3GM-22311-10-00 CASE, CHAIN . . . . . . . . . . . . . 1

27 90159-06084-00 SCREW, WITH WASHER . . . . . 1

28 90159-06108-00 SCREW, WITH WASHER . . . . . 1

29 3GM-22321-00-00 STAY, CHAIN CASE 1 . . . . . . . 1

CONTINUED ON NEXT FRAME

➤

SWING ARM

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
