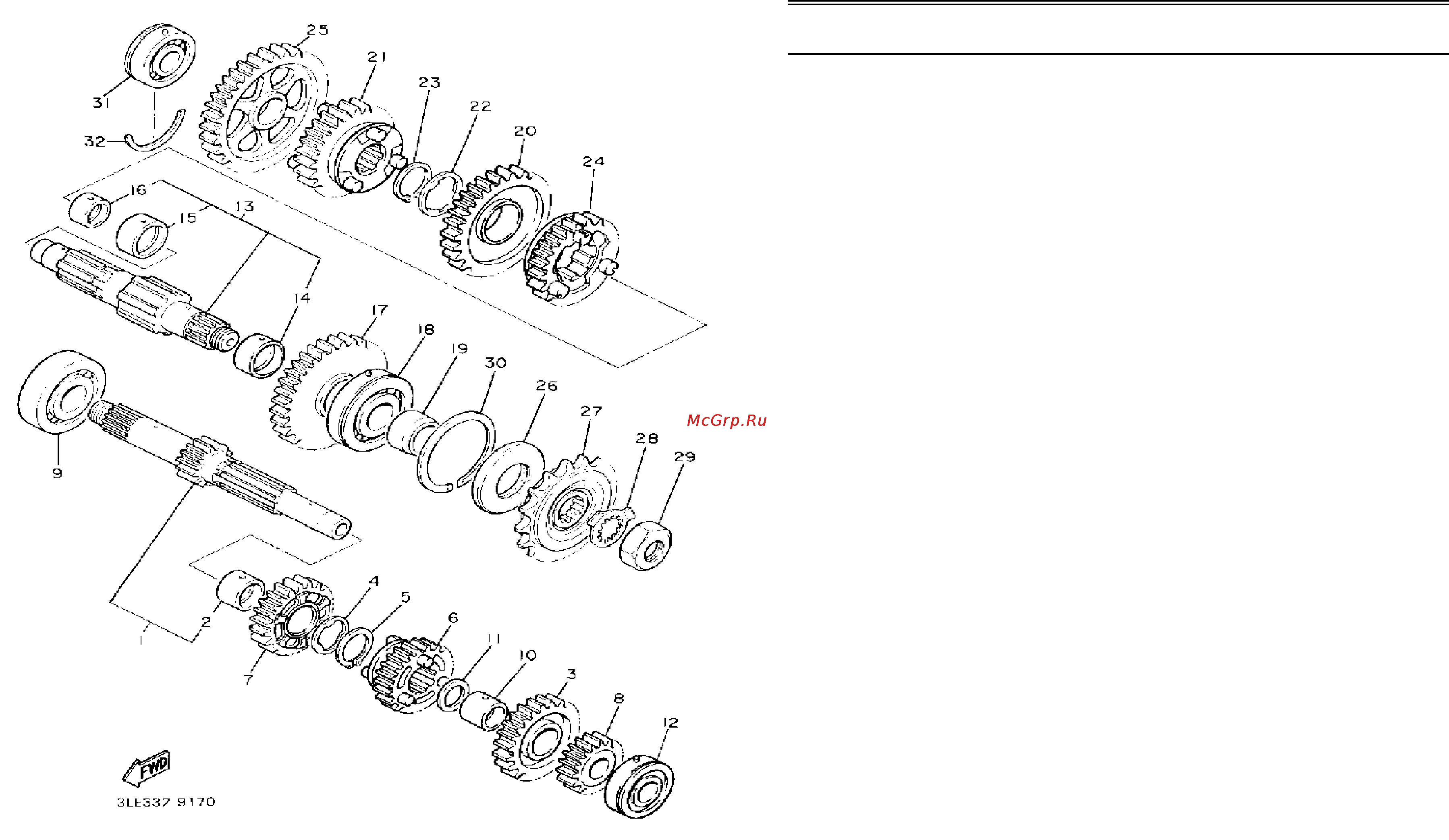

Yamaha FZR1000 (1993) [29/74] Transmission

1 2GH-W1741-00-00 MAIN AXLE ASSEMBLY (14T) . 1

2 90387-253M6-00 . COLLAR . . . . . . . . . . . . . . . . 1

3 2GH-17151-00-00 GEAR, 5TH PINION (27T) . . . . . 1

4 90209-22191-00 WASHER . . . . . . . . . . . . . . . . . 1

5 93440-25084-00 CIRCLIP . . . . . . . . . . . . . . . . . . 1

6 2GH-17131-00-00 GEAR, 3RD PINION (21T) . . . . . 1

7 2GH-17141-00-00 GEAR, 4TH PINION (23T) . . . . . 1

8 2GH-17121-00-00 GEAR, 2ND PINION (18T) . . . . . 1

9 93306-30525-00 BEARING (B6305) . . . . . . . . . . 1

10 90387-203M7-00 COLLAR . . . . . . . . . . . . . . . . . 1

11 90201-200K3-00 WASHER, PLATE . . . . . . . . . . . 1

12 93306-20455-00 BEARING . . . . . . . . . . . . . . . . . 1

13 3GM-W1742-00-00 DRIVE AXLE ASSEMBLY . . . . . 1

14 90387-271T7-00 . COLLAR . . . . . . . . . . . . . . . . 1

15 90387-281T8-00 . COLLAR . . . . . . . . . . . . . . . . 1

16 90387-211T9-00 . COLLAR . . . . . . . . . . . . . . . . 1

17 3GM-17221-00-00 GEAR, 2ND WHEEL (32T) . . . . 1

18 93305-30501-00 BEARING . . . . . . . . . . . . . . . . . 1

19 90387-255V9-00 COLLAR . . . . . . . . . . . . . . . . . 1

20 3GM-17231-00-00 GEAR, 3RD WHEEL (29T) . . . . 1

21 3GM-17241-00-00 GEAR, 4TH WHEEL (27T) . . . . 1

22 90209-25196-00 WASHER . . . . . . . . . . . . . . . . . 1

23 93440-28062-00 CIRCLIP . . . . . . . . . . . . . . . . . . 1

24 3GM-17251-00-00 GEAR, 5TH WHEEL (28T) . . . . 1

25 2GH-17211-01-00 GEAR, 1ST WHEEL . . . . . . . . . 1

26 93102-35423-00 OIL SEAL . . . . . . . . . . . . . . . . . 1

27 2GH-17460-11-00 SPROCKET, DRIVE 17T

(2GH1746170) . . . . . . . . . . . . . 1

28 90215-21022-00 WASHER, LOCK . . . . . . . . . . . 1

CONTINUED ON NEXT FRAME

➤

TRANSMISSION

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
