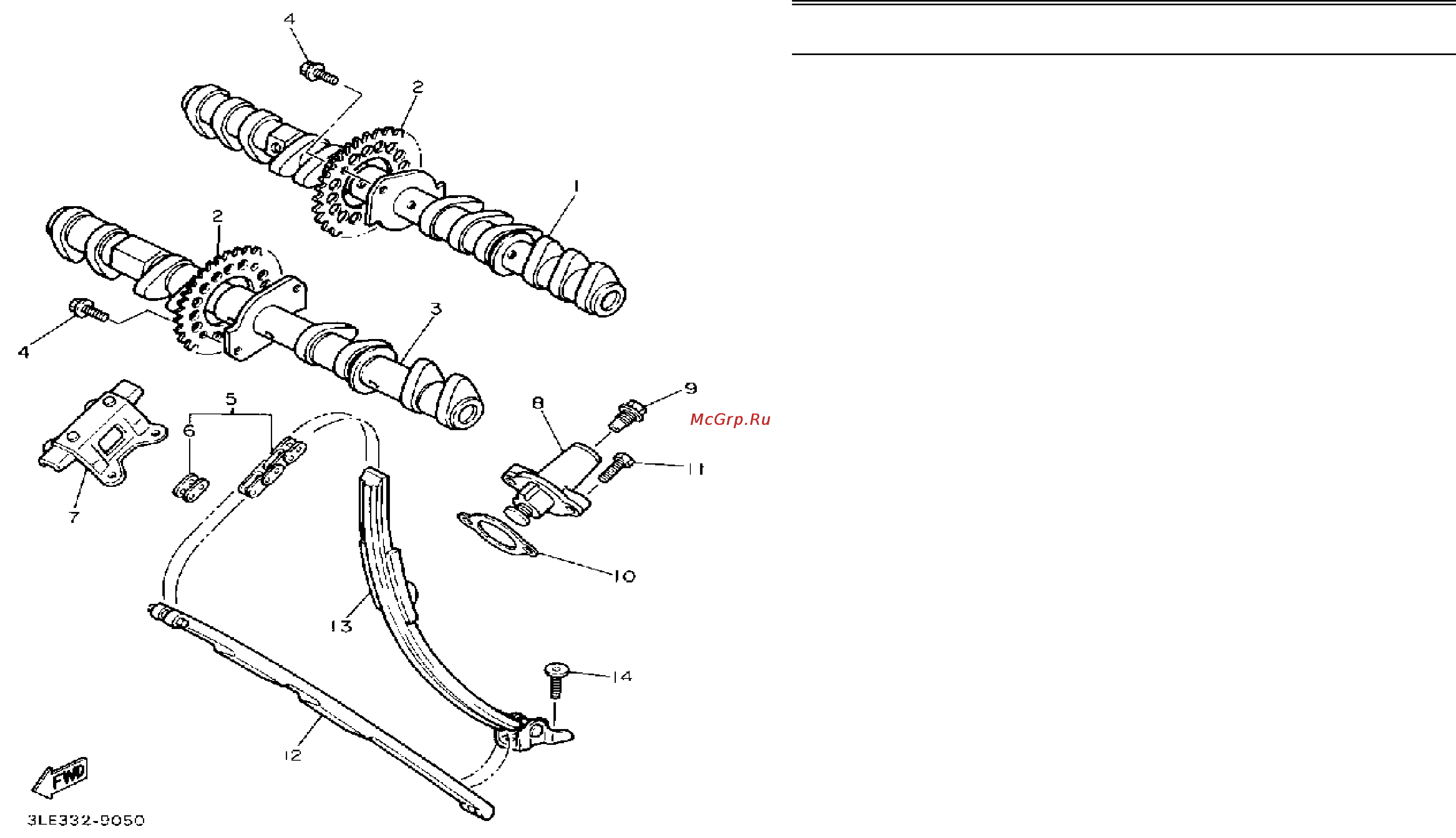

Yamaha FZR1000 (1993) [6/74] Camshaft chain
![Yamaha FZR1000 (1993) [6/74] Camshaft chain](/views2/1121431/page6/bg6.png)
1 3GM-12171-00-00 CAMSHAFT 1 . . . . . . . . . . . . . . 1
2 3GM-12176-00-00 SPROCKET, CAM CHAIN . . . . . 2
3 3GM-12181-00-00 CAMSHAFT 2 . . . . . . . . . . . . . . 1
4 90105-07342-00 BOLT, WASHER BASED . . . . . 4
5 94581-01108-00 CHAIN (DID219FS-108L) . . . . . 1
6 94681-01021-00 . JOINT, CHAIN . . . . . . . . . . . . 1
7 2GH-12241-00-00 GUIDE, STOPPER 2 . . . . . . . . . 1
8 3GM-12210-00-00 TENSIONER ASSEMBLY, CAM
CHAIN (1WG-12210-02-00) . . . . 1
9 90109-112F1-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
10 4BE-12213-00-00 GASKET, TENSIONER CASE . . 1
11 95023-06025-00 BOLT, FLANGE . . . . . . . . . . . . 2
12 3GM-12251-00-00 DAMPER, CHAIN 1 . . . . . . . . . 1
13 3GM-12252-00-00 DAMPER, CHAIN 2 . . . . . . . . . 1
14 90109-065A8-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
CAMSHAFT - CHAIN
Ref. Part
No. Number Description Qty Remarks
A6
FZR1000E_EC
