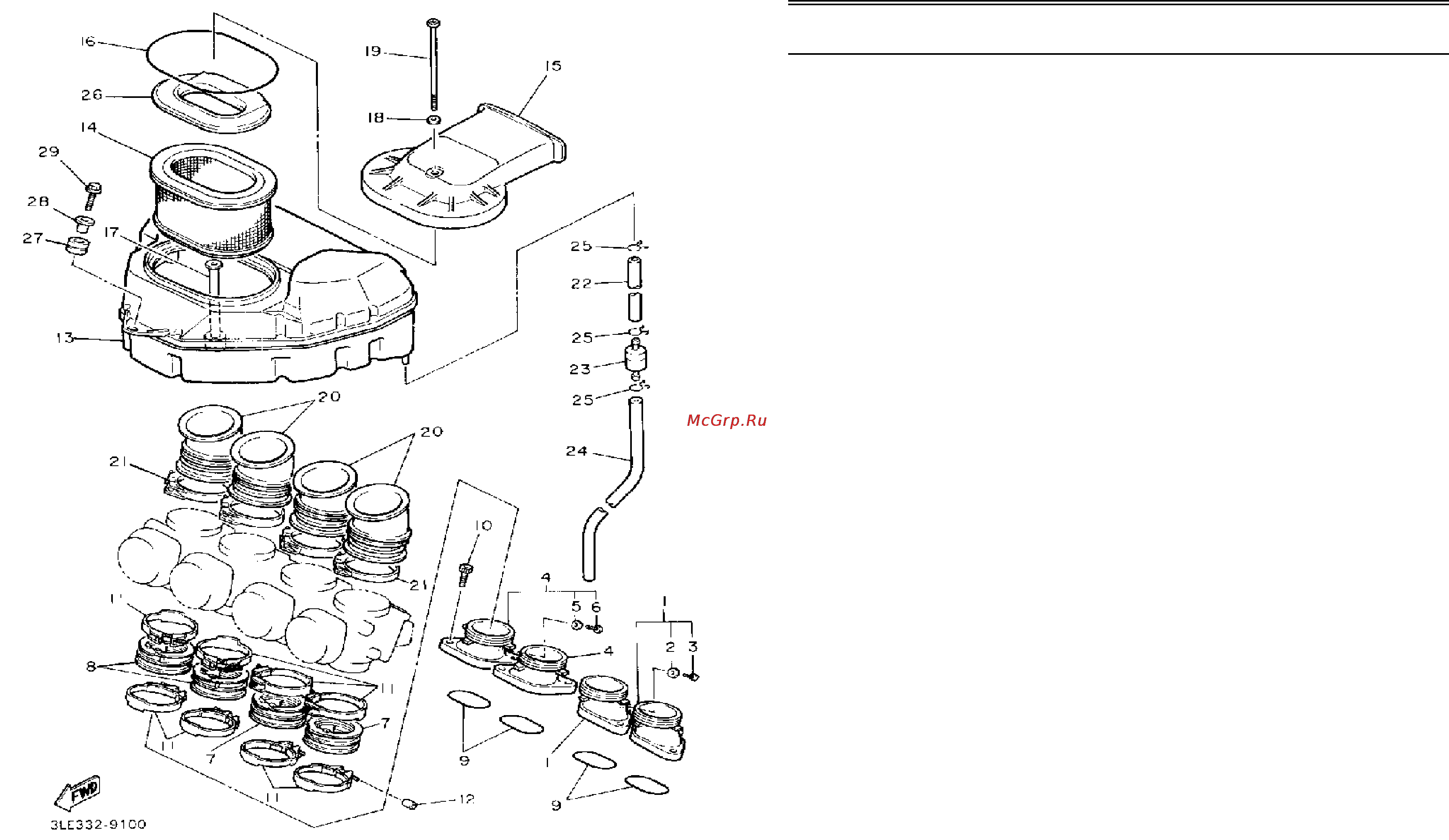

Yamaha FZR1000 (1993) [14/74] Ref part no number description qty remarks

1 3GM-13586-00-00 JOINT, CARBURETOR 1 . . . . . 2

2 90430-06014-00 . GASKET . . . . . . . . . . . . . . . . 1

3 91312-06012-00 . BOLT . . . . . . . . . . . . . . . . . . . 1

4 3GM-13596-00-00 JOINT, CARBURETOR 2 . . . . . 2

5 90430-06014-00 . GASKET . . . . . . . . . . . . . . . . 1

6 91312-06012-00 . BOLT . . . . . . . . . . . . . . . . . . . 1

7 3GM-13597-00-00 JOINT, CARBURETOR 3 . . . . . 2

8 3GM-13598-00-00 JOINT, CARBURETOR 4 . . . . . 2

9 93210-44545-00 O-RING . . . . . . . . . . . . . . . . . . 4

10 91316-06020-00 BOLT, SOCKET HEAD . . . . . . . 8

11 90450-57034-00 HOSE CLAMP ASSEMBLY . . . 8

12 90445-08740-00 HOSE . . . . . . . . . . . . . . . . . . . . 2

13 3GM-14401-00-00 AIR CLEANER CASE

ASSEMBLY . . . . . . . . . . . . . . . 1

14 3GM-14451-00-00 ELEMENT, AIR CLEANER . . . . 1

15 3GM-14422-00-00 CAP, CLEANER CASE 2 . . . . . 1

16 36F-14457-00-00 SEAL . . . . . . . . . . . . . . . . . . . . 1

17 3GM-14443-00-00 COLLAR . . . . . . . . . . . . . . . . . 1

18 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 1

19 98511-06140-00 SCREW, PAN HEAD

(98517-06140-00) . . . . . . . . . . . 1

20 3GM-14453-00-00 JOINT, AIR CLEANER 1 . . . . . . 4

21 90450-67033-00 HOSE CLAMP ASSEMBLY . . . 4

22 90445-11288-00 HOSE . . . . . . . . . . . . . . . . . . . . 1

23 4X7-2149Y-00-00 FILTER ASSEMBLY . . . . . . . . . 1

24 90445-114E2-00 HOSE . . . . . . . . . . . . . . . . . . . . 1

25 90467-10008-00 CLIP . . . . . . . . . . . . . . . . . . . . 3

26 3GM-14432-00-00 SILENCER, INNER . . . . . . . . . . 1

27 90480-14023-00 GROMMET . . . . . . . . . . . . . . . . 1

CONTINUED ON NEXT FRAME

➤

AIR FILTER

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
