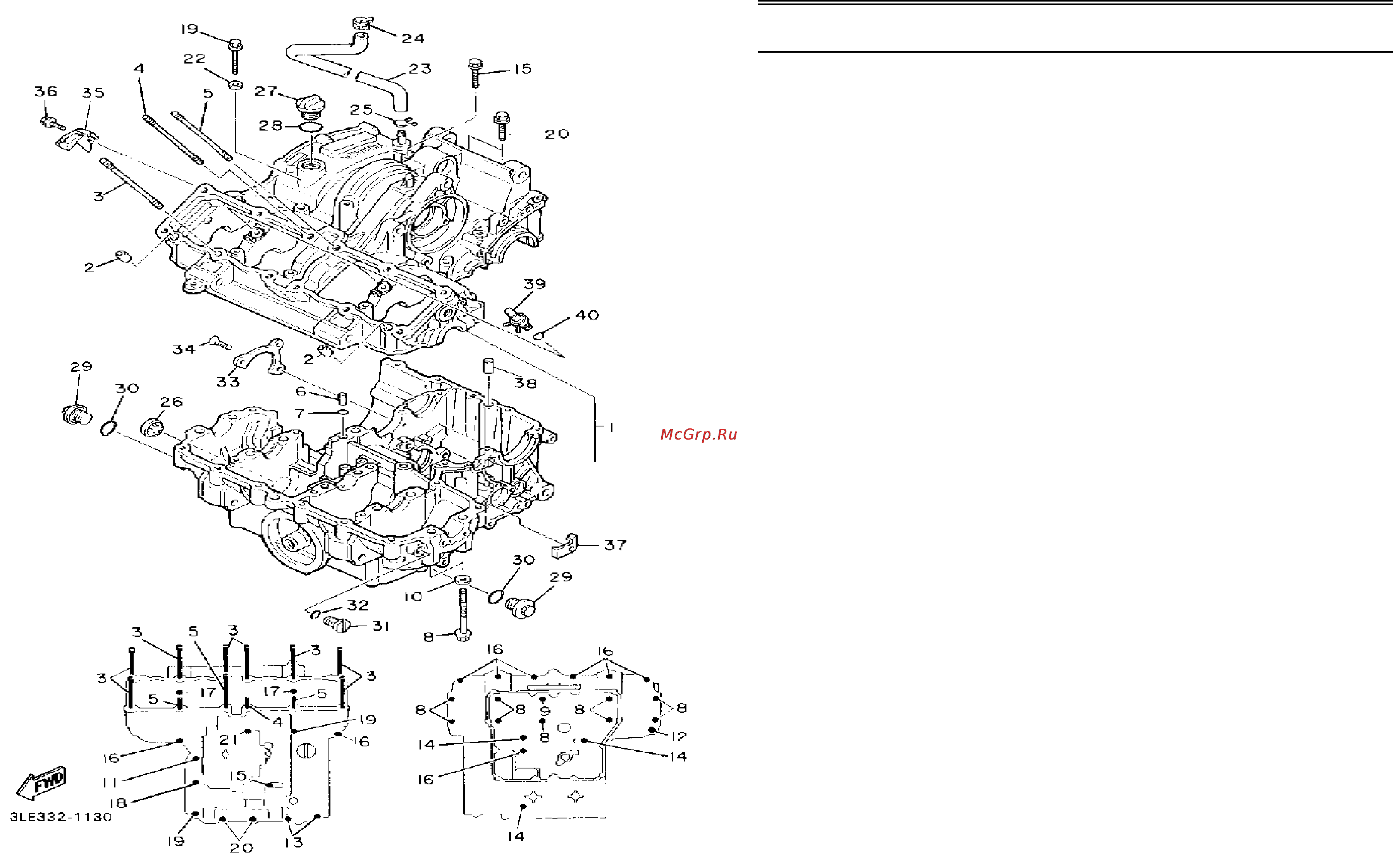

Yamaha FZR1000 (1993) [20/74] Crankcase

1 3GM-15100-51-00 CRANKCASE ASSEMBLY . . . . 1

2 99530-10014-00 PIN, DOWEL . . . . . . . . . . . . . . 2

3 90116-10532-00 BOLT, STUD . . . . . . . . . . . . . . 6

4 90116-10531-00 BOLT, STUD . . . . . . . . . . . . . . 1

5 90116-10576-00 BOLT, STUD . . . . . . . . . . . . . . 3

6 90387-05383-00 COLLAR . . . . . . . . . . . . . . . . . 1

7 93210-07135-00 O-RING . . . . . . . . . . . . . . . . . . 1

8 90105-09373-00 BOLT, WASHER BASED . . . . . 9

9 90105-09580-00 BOLT, WASHER BASED . . . . . 1

10 90201-096J9-00 WASHER, PLATE . . . . . . . . . . . 4

11 95811-06035-00 BOLT, FLANGE . . . . . . . . . . . . 1

12 95811-08045-00 BOLT, FLANGE (JN5) . . . . . . . 1

13 95811-06060-00 BOLT, FLANGE . . . . . . . . . . . . 2

14 95811-06080-00 BOLT, FLANGE . . . . . . . . . . . . 3

15 95811-06140-00 BOLT, FLANGE . . . . . . . . . . . . 1

16 95811-08045-00 BOLT, FLANGE (JN5) . . . . . . . 9

17 95811-08055-00 BOLT, FLANGE . . . . . . . . . . . . 2

18 95811-08065-00 BOLT, FLANGE . . . . . . . . . . . . 1

19 95811-08090-00 BOLT, FLANGE (95822-08090) . 2

20 95811-08060-00 BOLT, FLANGE . . . . . . . . . . . . 2

21 90105-09555-00 BOLT, WASHER BASED . . . . . 1

22 90201-08087-00 WASHER, PLATE . . . . . . . . . . . 1

23 1AE-11166-00-00 PIPE, BREATHER 1 . . . . . . . . . 1

24 90467-15054-00 CLIP . . . . . . . . . . . . . . . . . . . . 1

25 90467-14015-00 CLIP . . . . . . . . . . . . . . . . . . . . 1

26 2H7-15361-00-00 GAUGE, LEVEL . . . . . . . . . . . . 1

27 3FV-15363-00-00 PLUG, OIL . . . . . . . . . . . . . . . . 1

28 93210-27778-00 O-RING . . . . . . . . . . . . . . . . . . 1

29 4H7-15189-00-00 PLUG . . . . . . . . . . . . . . . . . . . . 2

CONTINUED ON NEXT FRAME

➤

CRANKCASE

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
