Yamaha FZR1000 (1993) [36/74] Fender
![Yamaha FZR1000 (1993) [36/74] Fender](/views2/1121431/page36/bg24.png)
30 47M-85132-00-00 BRACKET, REFLECTOR 1 . . . . 1
31 90267-32070-00 RIVET, BLIND . . . . . . . . . . . . . 2
32 92906-03200-00 WASHER . . . . . . . . . . . . . . . . . 2
33 1RK-22483-00-00 DAMPER 1 . . . . . . . . . . . . . . . . 1
34 99234-00080-00 EMBLEM, YAMAHA . . . . . . . . . 1
35 3LG-21663-00-00 GRAPHIC, TAILCOVER . . . . . . 1
36 3GM-28100-00-00 TOOL KIT . . . . . . . . . . . . . . . . 1
37 90480-10258-00 GROMMET . . . . . . . . . . . . . . . . 2

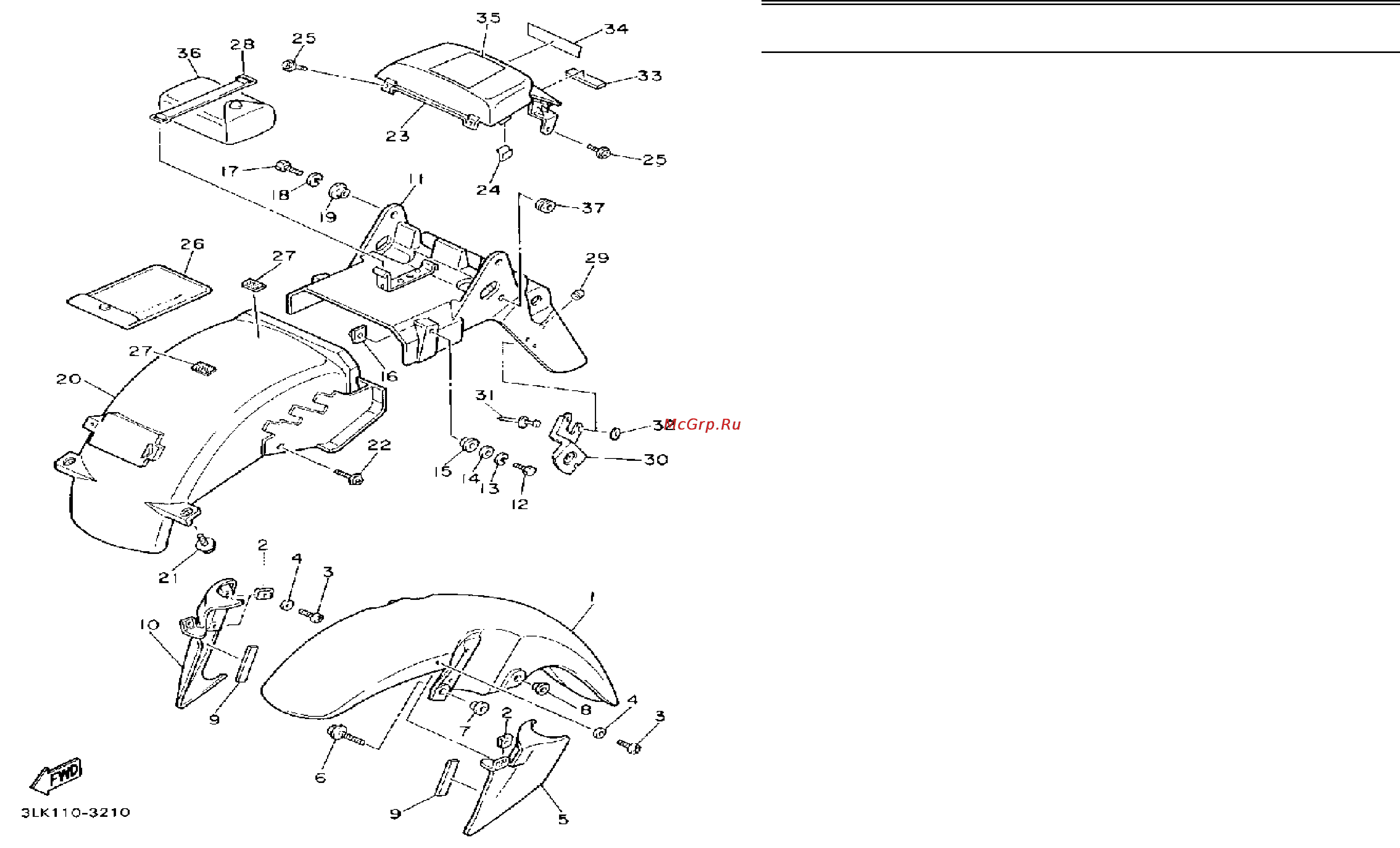

FENDER
Ref. Part
No. Number Description Qty Remarks
C12
FZR1000E_EC
