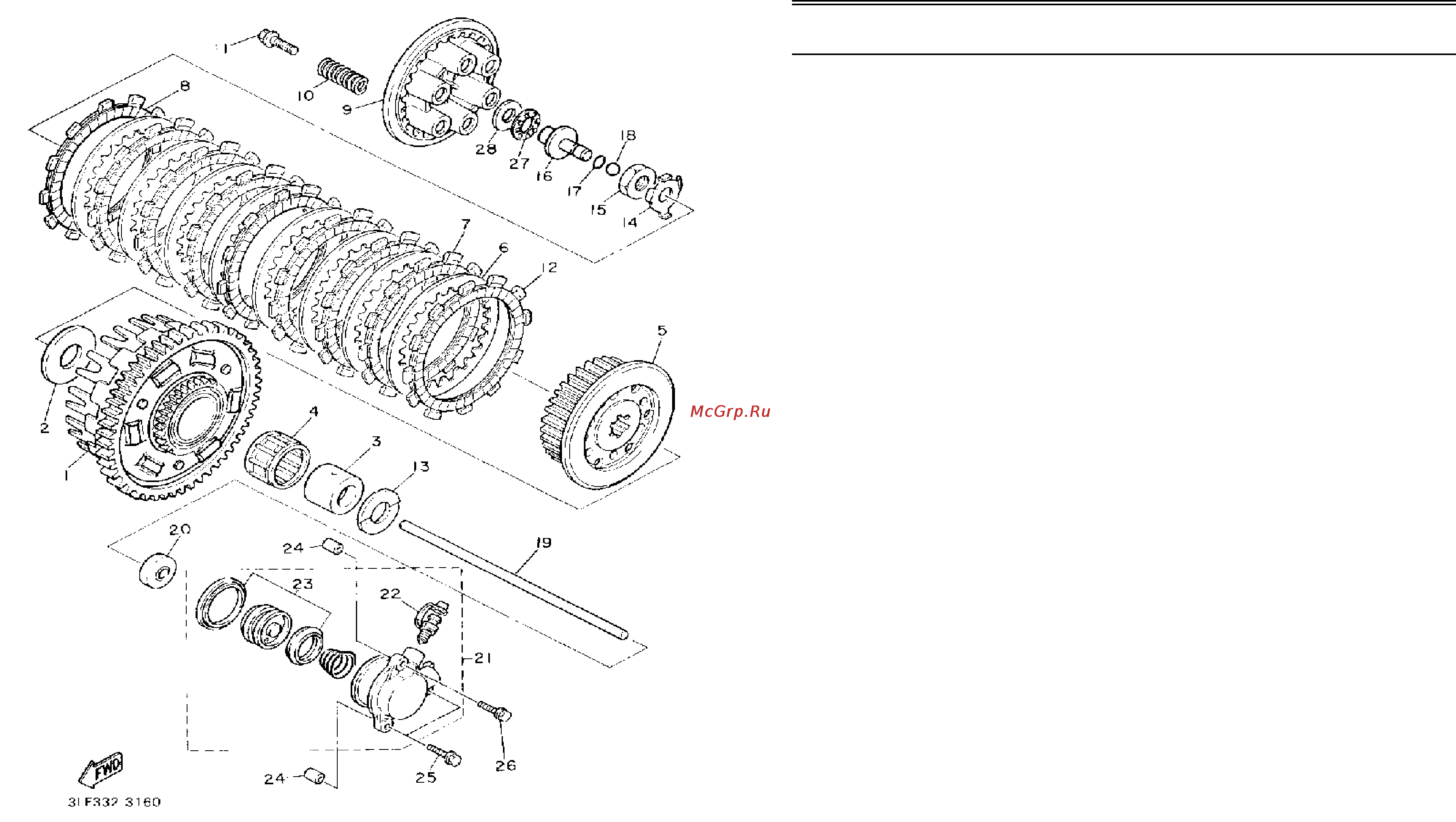

Yamaha FZR1000 (1993) [28/74] Clutch

1 3GM-16150-01-00 PRIMARY DRIVEN GEAR

COMP. . . . . . . . . . . . . . . . . . . . 1

2 1AE-16154-00-00 PLATE, THRUST 1 . . . . . . . . . . 1

3 90560-25270-00 SPACER . . . . . . . . . . . . . . . . . 1

4 93310-340N8-00 BEARING, CYLINDRICAL . . . . 1

5 4BH-16371-00-00 BOSS, CLUTCH . . . . . . . . . . . . 1

6 31A-16325-00-00 PLATE, CLUTCH 2 . . . . . . . . . . 8

7 4H7-16321-01-00 PLATE, FRICTION . . . . . . . . . . 7

8 31A-16321-00-00 PLATE, FRICTION . . . . . . . . . . 1

9 3GM-16351-00-00 PLATE, PRESSURE 1 . . . . . . . 1

10 90501-230E4-00 SPRING, COMPRESSION . . . . . 6

11 90159-06123-00 SCREW, WITH WASHER . . . . . 6

12 3GM-16321-00-00 PLATE, FRICTION . . . . . . . . . . 1

13 1AE-16164-00-00 PLATE, THRUST 2 . . . . . . . . . . 1

14 90215-20231-00 WASHER, LOCK . . . . . . . . . . . 1

15 90170-20327-00 NUT . . . . . . . . . . . . . . . . . . . . . 1

16 1LJ-16356-00-00 ROD, PUSH 1 . . . . . . . . . . . . . . 1

17 93210-06632-00 O-RING . . . . . . . . . . . . . . . . . . 1

18 93511-32027-00 BALL . . . . . . . . . . . . . . . . . . . . 1

19 1AE-16357-00-00 ROD, PUSH 2 . . . . . . . . . . . . . . 1

20 93109-08061-00 OIL SEAL . . . . . . . . . . . . . . . . . 1

21 1TV-16381-10-00 PUSH LEVER COMP. . . . . . . . . 1

22 36Y-W0048-00-00 . BLEED SCREW KIT . . . . . . . . 1

23 26H-W0098-00-00 . PUSH LEVER SEAL KIT . . . . . 1

24 99510-08012-00 PIN, DOWEL . . . . . . . . . . . . . . 2

25 95026-06030-00 BOLT, FLANGE . . . . . . . . . . . . 2

26 95026-06090-00 BOLT, FLANGE . . . . . . . . . . . . 1

27 93340-21505-00 BEARING . . . . . . . . . . . . . . . . . 1

28 90201-150H2-00 WASHER, PLATE . . . . . . . . . . . 1

CLUTCH

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
