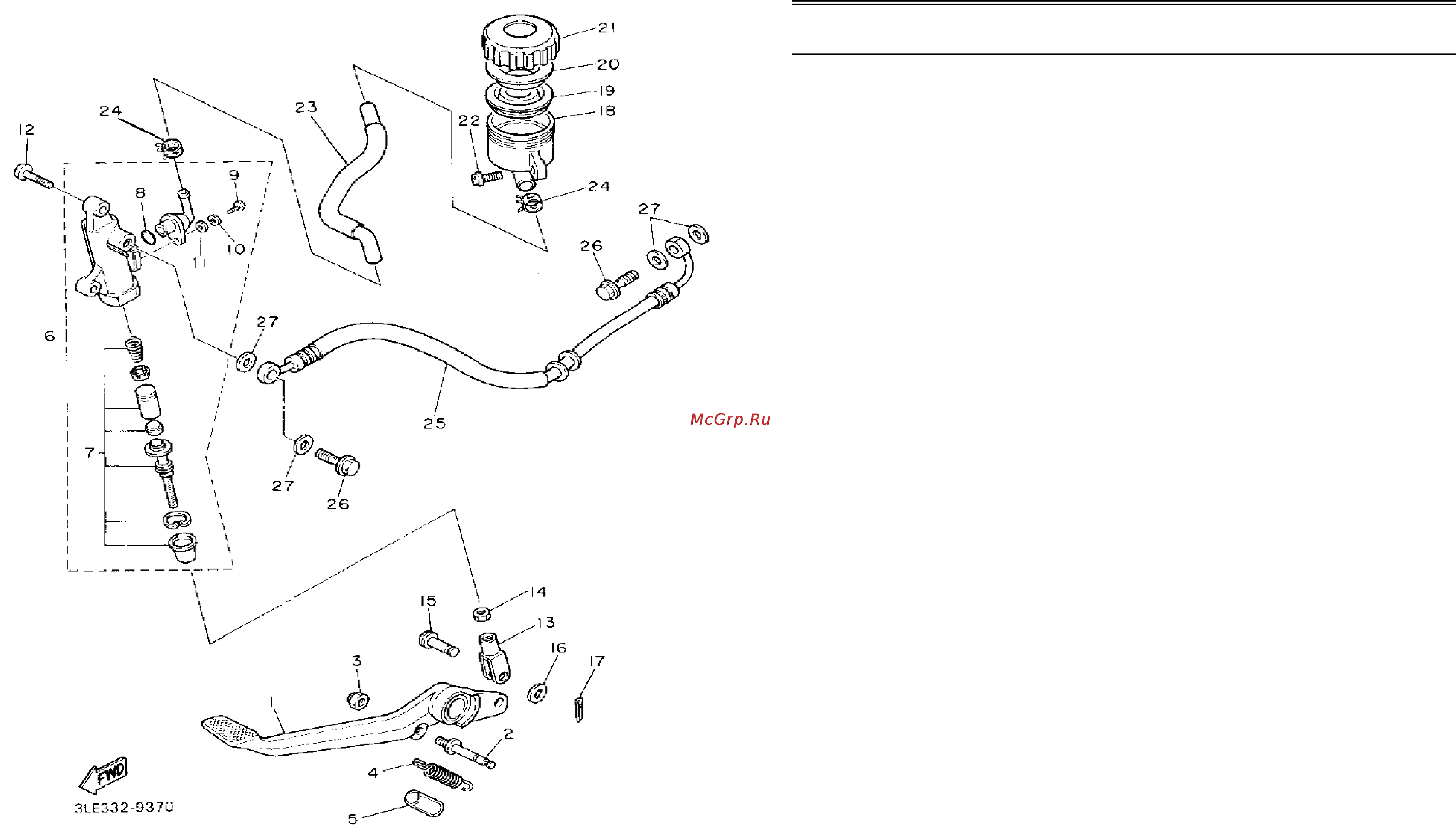

Yamaha FZR1000 (1993) [61/74] Rear master cylinder

1 2GH-27211-00-00 PEDAL, BRAKE . . . . . . . . . . . . 1

2 2TK-27813-00-00 PIN, PEDAL CRANK . . . . . . . . 1

3 95611-08100-00 NUT, U . . . . . . . . . . . . . . . . . . . 1

4 90508-20737-00 SPRING, TORSION . . . . . . . . . 1

5 90446-17346-00 HOSE . . . . . . . . . . . . . . . . . . . . 1

6 3GM-2583V-00-00 RR. MASTER CYLINDER

ASSEMBLY. . . . . . . . . . . . . . . . 1

7 2KR-W0042-50-00 . CYLINDER KIT, MASTER . . . . 1

8 93210-15620-00 . O-RING . . . . . . . . . . . . . . . . . 1

9 98511-04012-00 . SCREW, PAN HEAD . . . . . . . 1

10 92901-04100-00 . WASHER, SPRING . . . . . . . . . 1

11 92901-04600-00 . WASHER, PLATE . . . . . . . . . . 1

12 92011-08030-00 BOLT, BUTTON HEAD . . . . . . . 2

13 47X-27222-00-00 JOINT . . . . . . . . . . . . . . . . . . . 1

14 95303-08700-00 NUT . . . . . . . . . . . . . . . . . . . . . 1

15 90240-08013-00 PIN, CLEVIS . . . . . . . . . . . . . . . 1

16 90201-08083-00 WASHER, PLATE . . . . . . . . . . . 1

17 91490-20020-00 PIN, COTTER . . . . . . . . . . . . . . 1

18 47X-25894-00-00 TANK, RESERVOIR . . . . . . . . . 1

19 360-25854-00-00 DIAPHRAGM, RESERVOIR . . . 1

20 2GU-25855-00-00 BUSH, DIAPHRAGM . . . . . . . . 1

21 2KF-25852-50-00 CAP, RESERVOIR . . . . . . . . . . 1

22 90159-06085-00 SCREW, WITH WASHER . . . . . 1

23 3GM-25895-50-00 HOSE, RESERVOIR . . . . . . . . . 1

24 90467-14057-00 CLIP . . . . . . . . . . . . . . . . . . . . 2

25 3GM-25874-10-00 HOSE, BRAKE . . . . . . . . . . . . . 1

26 90401-10096-00 BOLT, UNION . . . . . . . . . . . . . 2

27 90201-10118-00 WASHER, PLATE . . . . . . . . . . . 4

REAR MASTER CYLINDER

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
