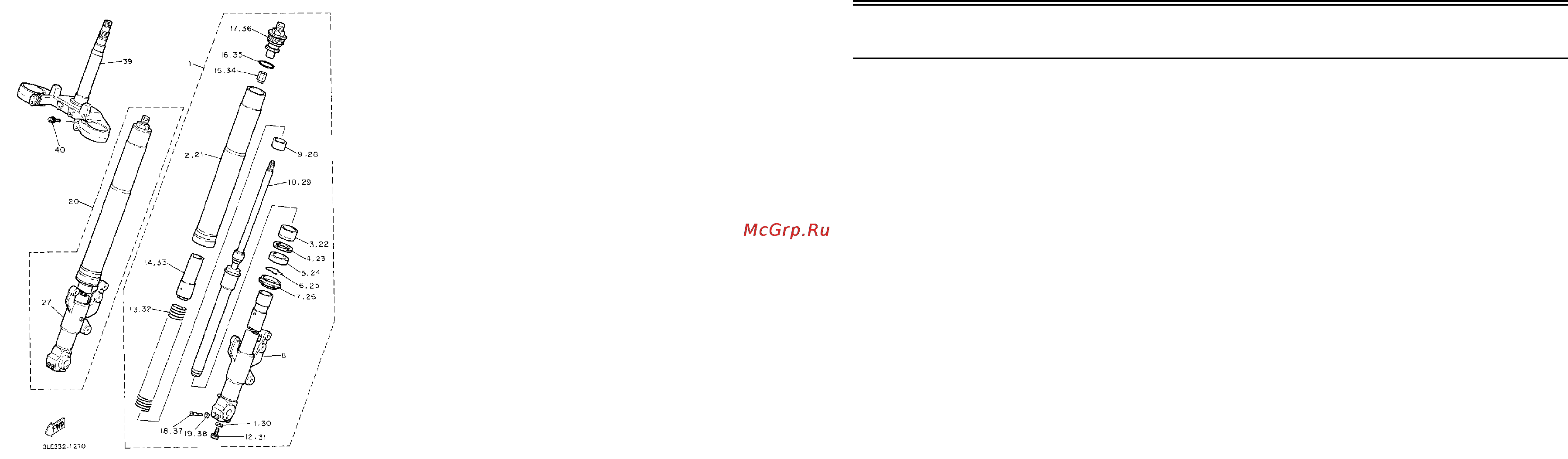

Yamaha FZR1000 (1993) [42/74] Front fork

1 3GM-23102-52-00 FRONT FORK ASSEMBLY L

(L.H) . . . . . . . . . . . . . . . . . . . . 1

2 3GM-23136-50-00 . TUBE, OUTER 2 . . . . . . . . . . . 1

3 3GM-23125-50-00 . METAL, SLIDE 1 . . . . . . . . . . 1

4 36Y-23146-10-00 . WASHER, OIL SEAL . . . . . . . 1

5 3LC-23145-00-00 . OIL SEAL . . . . . . . . . . . . . . . . 1

6 26H-23156-00-00 . CLIP, OIL SEAL . . . . . . . . . . . 1

7 3GM-23144-50-00 . SEAL, DUST . . . . . . . . . . . . . 1

8 3GM-23120-50-00 . INNER TUBE 2 . . . . . . . . . . . . 1

9 3JD-23171-L0-00 . METAL, SLIDE . . . . . . . . . . . . 1

10 3GM-23170-52-00 . CYLINDER, FRT FORKFRONT

FORK . . . . . . . . . . . . . . . . . . 1

11 2K8-23158-L0-00 . GASKET . . . . . . . . . . . . . . . . 1

12 3R4-23181-L0-00 . BOLT, HEX SCKT

HEADSOCKET HEAD . . . . . . 1

13 3GM-23141-51-00 . SPRING, FRONT FORK . . . . . 1

14 3GM-23118-51-00 . SPACER . . . . . . . . . . . . . . . . 1

15 3XJ-23357-L0-00 . NUT . . . . . . . . . . . . . . . . . . . . 1

16 3SP-23147-M0-00 . O-RING . . . . . . . . . . . . . . . . . 1

17 3GM-23111-50-00 . BOLT, CAP . . . . . . . . . . . . . . 1

18 91311-08040-00 . BOLT, SOCKET HEAD . . . . . . 2

19 90201-08085-00 . WASHER, PLATE . . . . . . . . . . 2

20 3GM-23103-52-00 FRONT FORK ASSEMBLY R

(R.H) . . . . . . . . . . . . . . . . . . . . 1

21 3GM-23136-50-00 . TUBE, OUTER 2 . . . . . . . . . . . 1

22 3GM-23125-50-00 . METAL, SLIDE 1 . . . . . . . . . . 1

23 36Y-23146-10-00 . WASHER, OIL SEAL . . . . . . . 1

24 3LC-23145-00-00 . OIL SEAL . . . . . . . . . . . . . . . . 1

25 26H-23156-00-00 . CLIP, OIL SEAL . . . . . . . . . . . 1

26 3GM-23144-50-00 . SEAL, DUST . . . . . . . . . . . . . 1

CONTINUED ON NEXT FRAME

➤

FRONT FORK

Ref. Part

No. Number Description Qty Remarks

FZR1000E_EC
