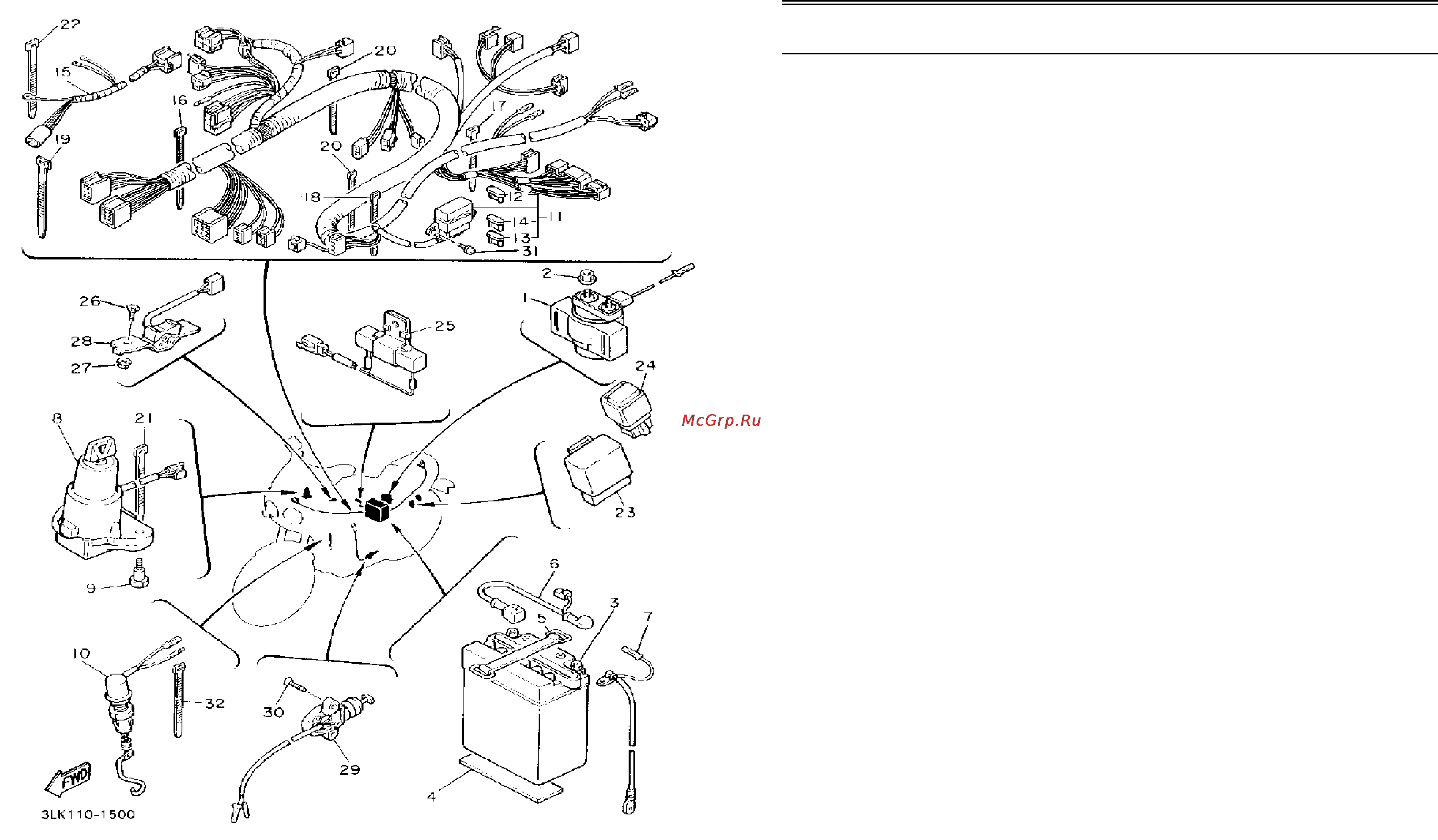

Yamaha FZR1000 (1993) [74/74] Electrical 2
![Yamaha FZR1000 (1993) [74/74] Electrical 2](/views2/1121431/page74/bg4a.png)
29 2KT-82566-01-00 SWITCH, SIDE STAND . . . . . . . 1
30 90152-05021-00 SCREW, COUNTERSUNK . . . . 2
31 90159-06033-00 SCREW, WITH WASHER . . . . . 2
32 5Y9-12491-00-00 CLAMP 1 . . . . . . . . . . . . . . . . . 1
ELECTRICAL 2
Ref. Part
No. Number Description Qty Remarks
G2
FZR1000E_EC
