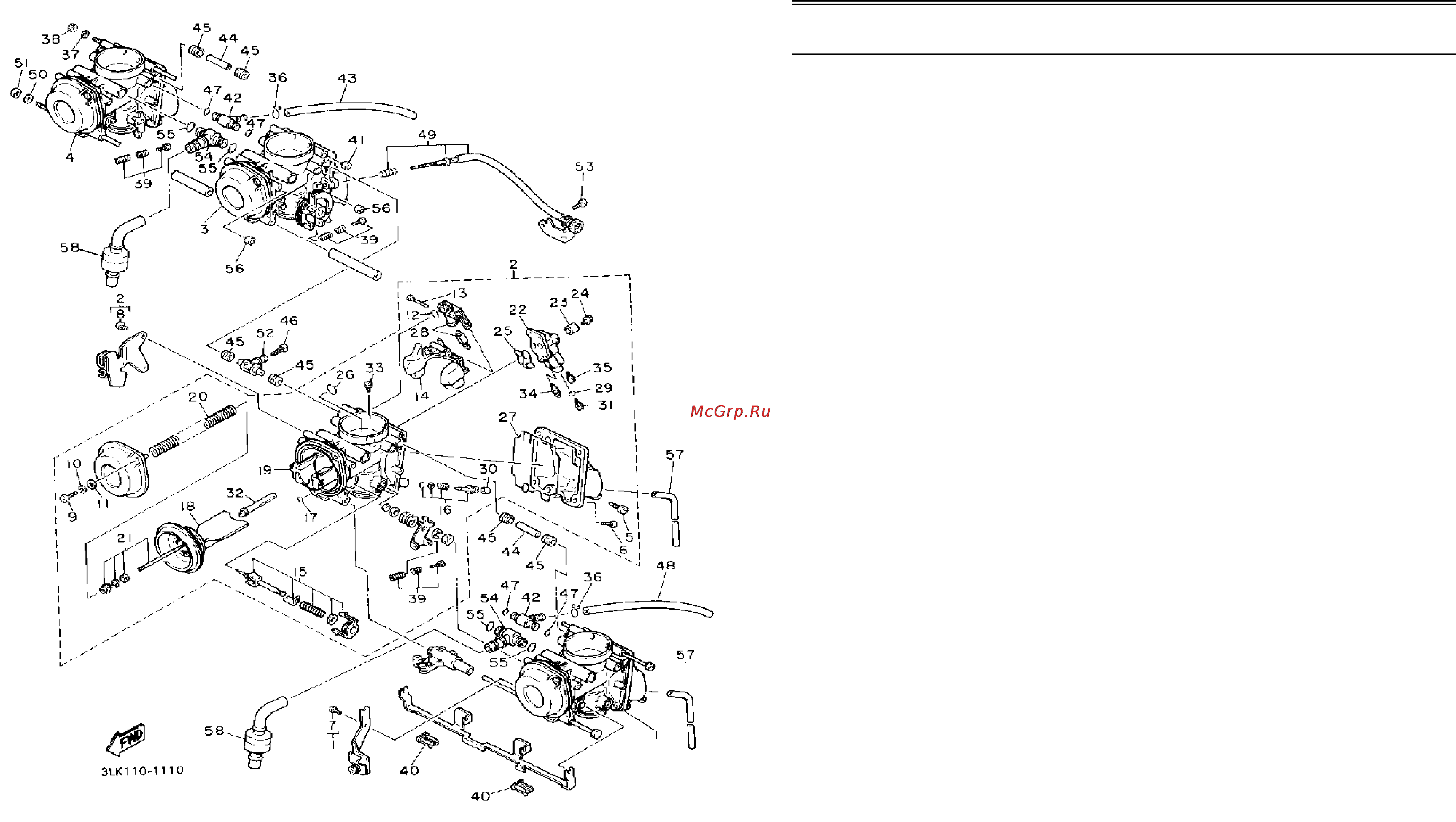

Yamaha FZR1000 (1993) [18/74] Carburetor
![Yamaha FZR1000 (1993) [18/74] Carburetor](/views2/1121431/page18/bg12.png)
50 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 1
51 95380-06600-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
52 3EN-14988-00-00 PIPE, STARTER CONNECTING 1
53 98580-05010-00 SCREW, PAN HEAD . . . . . . . . 1
54 3GM-14251-00-00 NIPPLE . . . . . . . . . . . . . . . . . . 2
55 3LK-14147-00-00 O-RING . . . . . . . . . . . . . . . . . . 4
56 3GM-14992-00-00 ROD . . . . . . . . . . . . . . . . . . . . . 2
57 3LK-14987-00-00 HOSE . . . . . . . . . . . . . . . . . . . . 4 CALIF.
58 3GM-14197-00-00 PIPE . . . . . . . . . . . . . . . . . . . . 2
CARBURETOR
Ref. Part
No. Number Description Qty Remarks
B6
FZR1000E_EC
