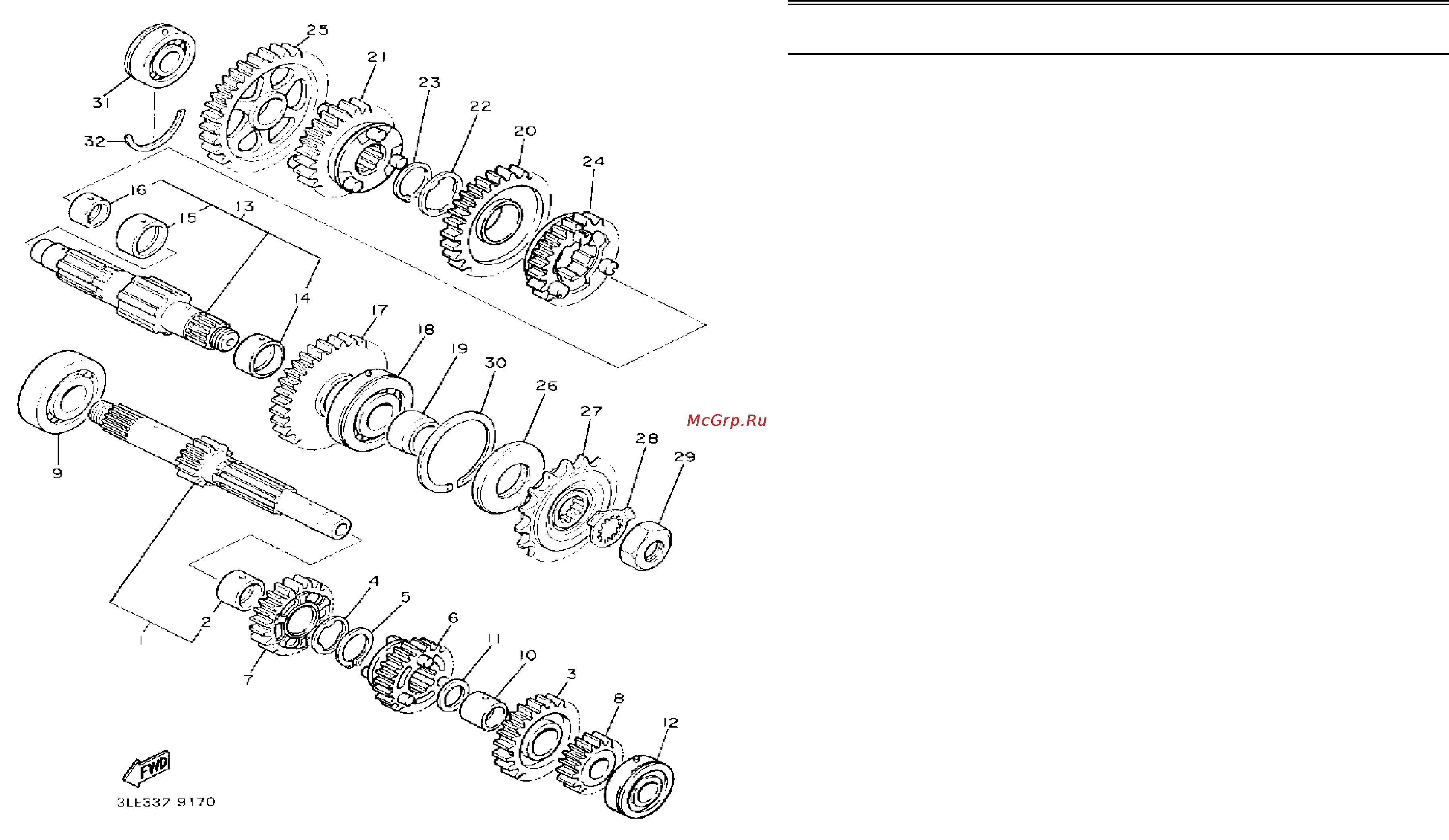

Yamaha FZR1000 (1993) [30/74] Transmission
![Yamaha FZR1000 (1993) [30/74] Transmission](/views2/1121431/page30/bg1e.png)
29 90179-18020-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
30 278-17424-01-00 CIRCLIP 1 . . . . . . . . . . . . . . . . 1
31 93306-20455-00 BEARING . . . . . . . . . . . . . . . . . 1
32 93440-45144-00 CIRCLIP . . . . . . . . . . . . . . . . . . 1
TRANSMISSION
Ref. Part
No. Number Description Qty Remarks
C6
FZR1000E_EC
