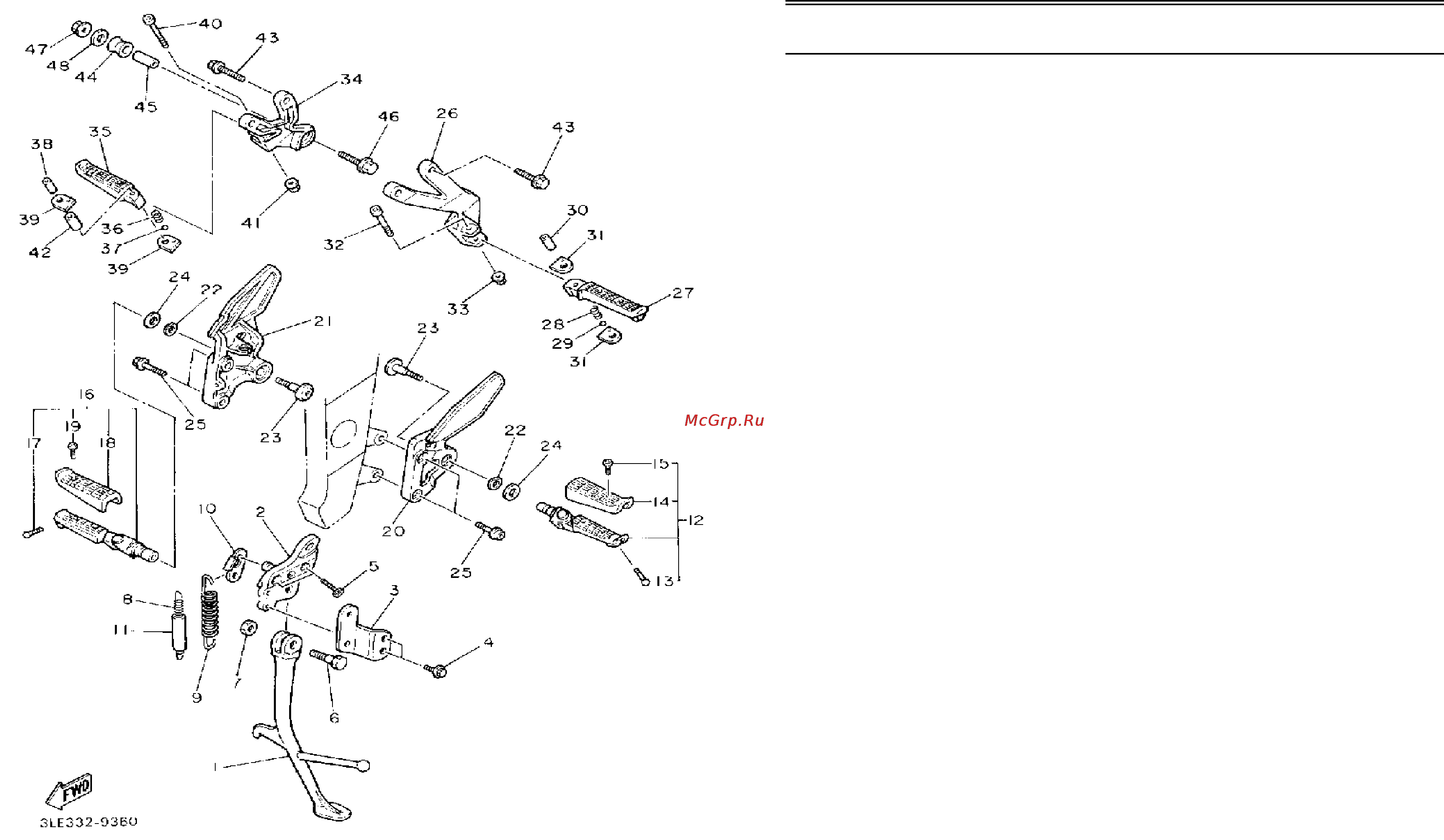

Yamaha FZR1000 (1993) [59/74] Stand footrest

1 3GM-27311-00-00 STAND, SIDE . . . . . . . . . . . . . . 1

2 3GM-27321-00-00 BRACKET, SIDE STAND . . . . . 1

3 3GM-21453-00-00 BRACKET, SWITCH . . . . . . . . . 1

4 90105-06564-00 BOLT, WASHER BASED . . . . . 2

5 90110-08155-00 BOLT, HEXAGON SOCKET

HEAD . . . . . . . . . . . . . . . . . . . . 2

6 90109-104E6-00 BOLT . . . . . . . . . . . . . . . . . . . . 1

7 90185-10037-00 NUT, SELF-LOCKING . . . . . . . . 1

8 90506-18224-00 SPRING, TENSION . . . . . . . . . . 1

9 90506-26225-00 SPRING, TENSION . . . . . . . . . . 1

10 2KT-27315-00-00 LINK, SIDE STAND . . . . . . . . . 1

11 1TX-27351-00-00 GUIDE, SIDE STAND . . . . . . . . 1

12 2GH-27410-00-00 FRONT FOOTREST ASSEMBLY

(LEFT) . . . . . . . . . . . . . . . . . . . 1

13 90109-083E2-00 . BOLT . . . . . . . . . . . . . . . . . . . 1

14 2GH-27413-00-00 . COVER, FOOTREST . . . . . . . 1

15 90157-05079-00 . SCREW, PAN HEAD . . . . . . . 2

16 2GH-27420-00-00 FRONT FOOTREST ASSEMBLY

(RIGHT) . . . . . . . . . . . . . . . . . . 1

17 90109-083E2-00 . BOLT . . . . . . . . . . . . . . . . . . . 1

18 2GH-27413-00-00 . COVER, FOOTREST . . . . . . . 1

19 90157-05079-00 . SCREW, PAN HEAD . . . . . . . 2

20 3GM-27442-00-00 BRACKET 2 . . . . . . . . . . . . . . . 1

21 3GM-27443-00-00 BRACKET 3 . . . . . . . . . . . . . . . 1

22 90214-10056-00 WASHER, CLAW . . . . . . . . . . . 2

23 90109-103A9-00 BOLT . . . . . . . . . . . . . . . . . . . . 2

24 90206-17084-00 WASHER, WAVE . . . . . . . . . . . 2

25 90110-08199-00 BOLT, HEXAGON SOCKET

HEAD . . . . . . . . . . . . . . . . . . . . 4

26 3GM-2741L-00-00 BRACKET 4 . . . . . . . . . . . . . . . 1

CONTINUED ON NEXT FRAME

➤

STAND - FOOTREST

Ref. Part

No. Number Description Qty Remarks
