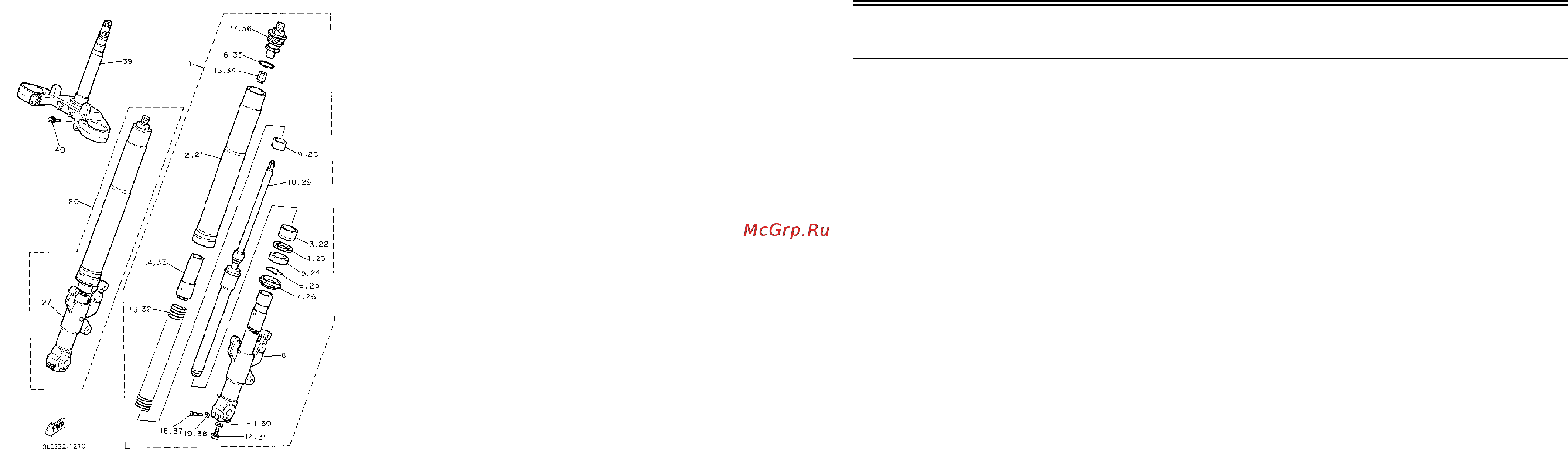

Yamaha FZR1000 (1993) [43/74] Front fork
![Yamaha FZR1000 (1993) [43/74] Front fork](/views2/1121431/page43/bg2b.png)
27 3GM-23110-50-00 . INNER TUBE 1 . . . . . . . . . . . . 1
28 3JD-23171-L0-00 . METAL, SLIDE . . . . . . . . . . . . 1
29 3GM-23170-52-00 . CYLINDER, FRT FORKFRONT
FORK . . . . . . . . . . . . . . . . . . 1
30 2K8-23158-L0-00 . GASKET . . . . . . . . . . . . . . . . 1
31 3R4-23181-L0-00 . BOLT, HEX SCKT
HEADSOCKET HEAD . . . . . . 1
32 3GM-23141-51-00 . SPRING, FRONT FORK . . . . . 1
33 3GM-23118-51-00 . SPACER . . . . . . . . . . . . . . . . 1
34 3XJ-23357-L0-00 . NUT . . . . . . . . . . . . . . . . . . . . 1
35 3SP-23147-M0-00 . O-RING . . . . . . . . . . . . . . . . . 1
36 3GM-23111-50-00 . BOLT, CAP . . . . . . . . . . . . . . 1
37 91311-08040-00 . BOLT, SOCKET HEAD . . . . . . 2
38 90201-08085-00 . WASHER, PLATE . . . . . . . . . . 2
39 3GM-23340-50-00 UNDER BRACKET . . . . . . . . . . 1
40 5X3-23181-L0-00 BOLT, HEX SCKT
HEADSOCKET HEAD . . . . . . . . 4
FRONT FORK
Ref. Part
No. Number Description Qty Remarks
