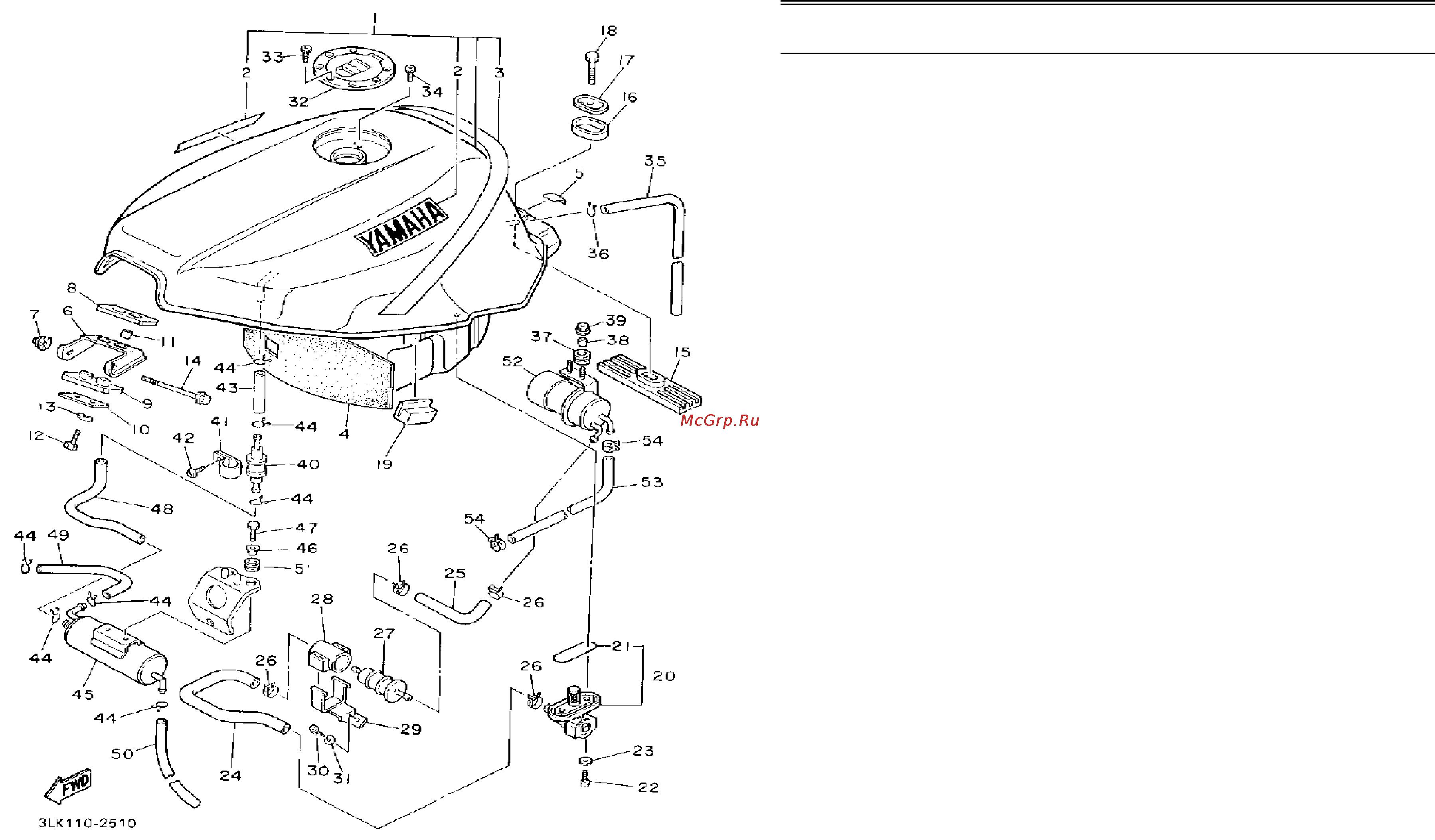

Yamaha FZR1000 (1993) [47/74] Fuel tank california model only

1 3LK-24110-01-W1 FUEL TANK . . . . . . . . . . . . . . . 1 SILKY

2 99221-00040-00 . EMBLEM, YAMAHA . . . . . . . . 2

3 3LG-24244-30-00 . GRAPHIC, FUEL TNK 1 . . . . . 1

4 3LK-2414J-00-00 DAMPER, PLATE 2 . . . . . . . . . 1

5 2GH-21732-00-00 SEAL 1 . . . . . . . . . . . . . . . . . . 1

6 2GH-24191-00-00 BRACKET, FUEL TANK 1 . . . . 1

7 95303-06800-00 NUT (CROWN) . . . . . . . . . . . . . 1

8 2GH-24181-00-00 DAMPER, LOCATING 1 . . . . . . 1

9 2GH-24183-00-00 DAMPER, LOCATING 3 . . . . . . 1

10 2GH-24186-00-00 WASHER, SPECIAL . . . . . . . . . 1

11 90387-06553-00 COLLAR . . . . . . . . . . . . . . . . . 2

12 97011-06025-00 BOLT (97001-06025) . . . . . . . . 2

13 92995-06100-00 WASHER, SPRING . . . . . . . . . . 2

14 95811-06075-00 BOLT, FLANGE . . . . . . . . . . . . 1

15 2GH-24184-00-00 DAMPER, LOCATING 4 . . . . . . 1

16 3Y6-24183-00-00 DAMPER, LOCATING 3 . . . . . . 1

17 2GH-24187-00-00 WASHER, SPECIAL . . . . . . . . . 1

18 3GM-24182-00-00 DAMPER, LOCATING 2 . . . . . . 2

97011-08030-00 BOLT (97001-08030-00) . . . . . . 1

20 26H-24500-00-00 FUEL COCK ASSEMBLY 1 . . . 1

21 214-24512-00-00 . GASKET . . . . . . . . . . . . . . . . 1

22 90149-06011-00 SCREW . . . . . . . . . . . . . . . . . . 2

23 90202-05187-00 WASHER, PLATE . . . . . . . . . . . 2

24 3GM-24311-01-00 PIPE, FUEL 1 . . . . . . . . . . . . . . 1

25 3GM-24312-00-00 PIPE 2 . . . . . . . . . . . . . . . . . . . 1

26 90467-12124-00 CLIP . . . . . . . . . . . . . . . . . . . . 4

27 1FK-24560-00-00 FILTER ASSEMBLY . . . . . . . . . 1

28 1FK-24566-00-00 BRACKET, FILTER . . . . . . . . . 1

29 3GM-24136-00-00 CLAMP 2 . . . . . . . . . . . . . . . . . 1

CONTINUED ON NEXT FRAME

➤

FUEL TANK (CALIFORNIA MODEL ONLY

Ref. Part

No. Number Description Qty Remarks

D11

FZR1000E_EC
