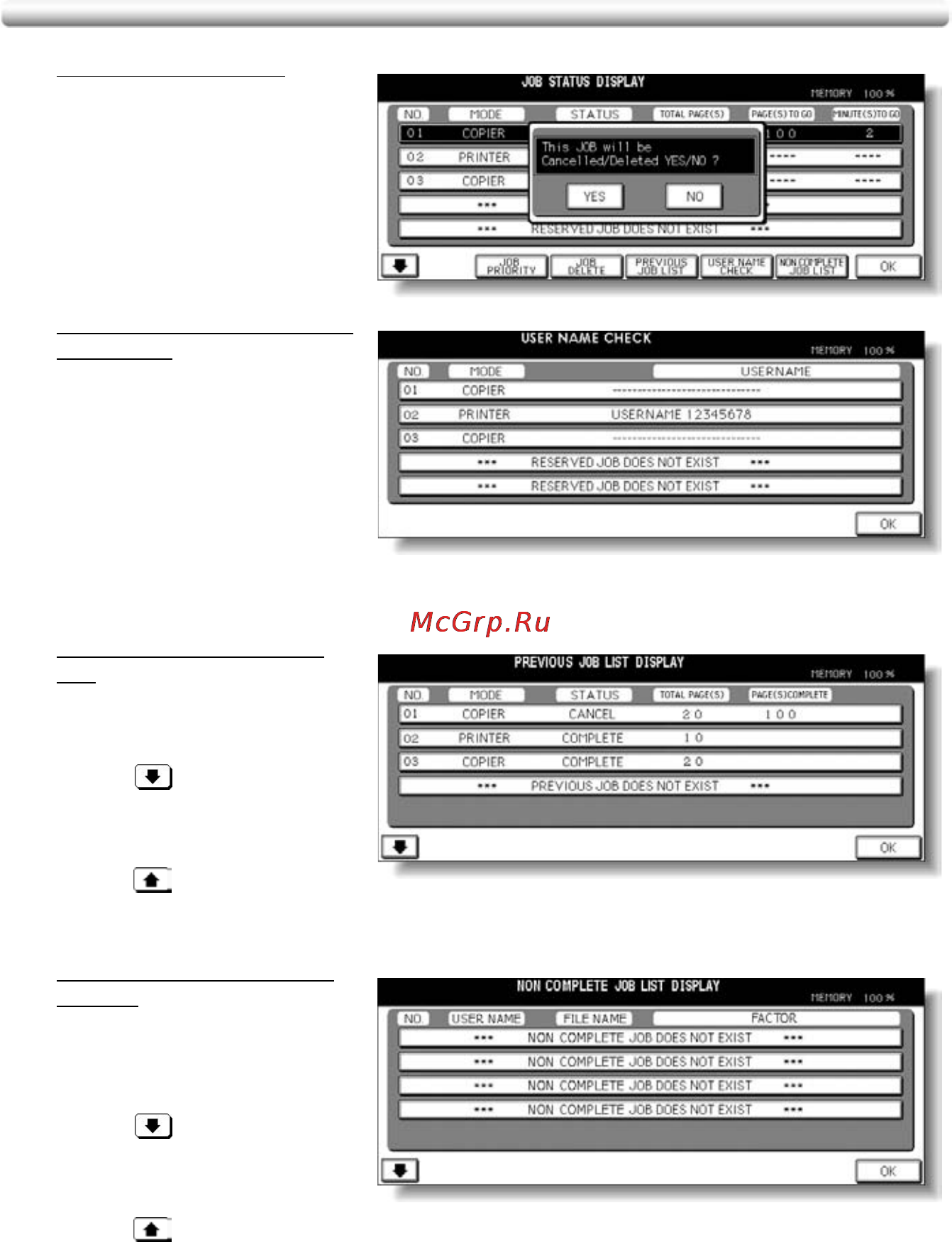

To Check/Control Jobs in Progress (Job Status Screen)
3-44
To clear reserve job:
Touch to highlight the
desired reserve job key,
then touch JOB CLEAR.
Touch YES to clear the
highlighted reserve job, or
NO to cancel.
To check user name (print
jobs only):
Touch USER NAME
CHECK to display the
User Name Check
Screen.
Check the user name
indicated on the right side
of the job number and
operation mode.
Touch OK to return to the
Job Status Screen.
To display previous job
list:
Touch PREVIOUS JOB
LIST to display the
Previous Job List Screen.
Touch to scroll to the
next page. Up to 16
previous jobs (4 pages)
can be displayed.
Touch to return to the
previous page.
Touch OK to return to the Job Status Screen.
To display noncomplete
job list:
Touch NONCOMPLETE
JOB LIST to display the
Noncomplete Job List
Screen.
Touch to scroll to the
next page. Up to 16
noncomplete jobs (4
pages) can be displayed.
Touch to return to the
previous page.
Touch OK to return to the Job Status Screen.
3. Touch OK on the Job Status Screen.
The Basic Screen will be restored.
