Tray Adjustment
8-28
To Recall/Delete the Adjustment Value

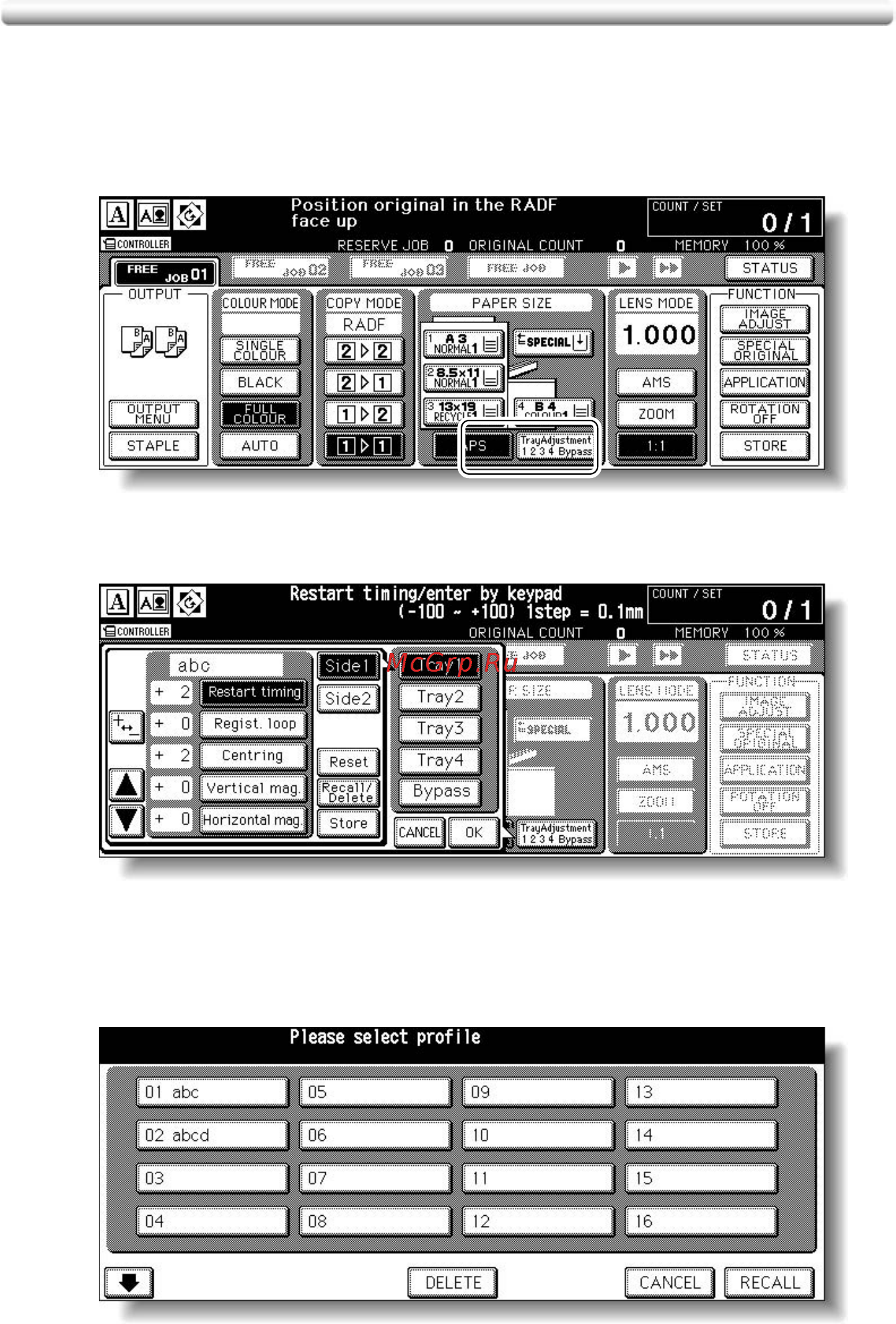

1. Touch Tray Adjustment on the Basic Screen to display the Tray
Adjustment popup menu.
2. Touch the desired tray key, then touch Recall/Delete.
The Profile List Screen will be displayed.
3. Touch the number (profile name) key to highlight it, then touch
RECALL or DELETE, as desired.
When RECALL is touched, the Tray Adjustment popup menu will be restored,
with the selected adjustment value recalled in the text area.
