9-9
Copying Mixed Size Originals (Mixed Original)
Copying Mixed Size Originals (Mixed Origi-
nal)
Use the Mixed original mode with the document feeder or with Store mode to copy
mixed size originals.
Each original in the mixed set will be copied to paper of the same size (APS mode)
or to paper of desired size with appropriate ratio automatically selected (AMS
mode).
Specifications for Mixed Original
/ Use RADF.
/ Combination of original sizes to be mixed depends on the width of the RADF
original guides. See p. 12-11 for details.
/ Incompatible Conditions: Rotation Sort, Rotation Group, Fold, Stitch & Fold,
Trimming, Three-Fold, Punch (B6R mixed), Z-Folded Original, Non STD Size,
Tab Paper, Sheet/Cover Insertion, Chapter, Combination, Booklet, Image
Insert, Dual Page, Program Job, Multi-Page Enlargement, Non-Image Area
Erase, Repeat, AUTO Layout, Reduce&Shift in Image Shift, Overlay, Storing
image in Overlay Memory
1. Touch SPECIAL ORIGINAL on the Basic Screen.
The Special Original popup menu will be displayed.
When starting a new copying job, be sure to close the RADF securely, then
press [AUTO RESET].

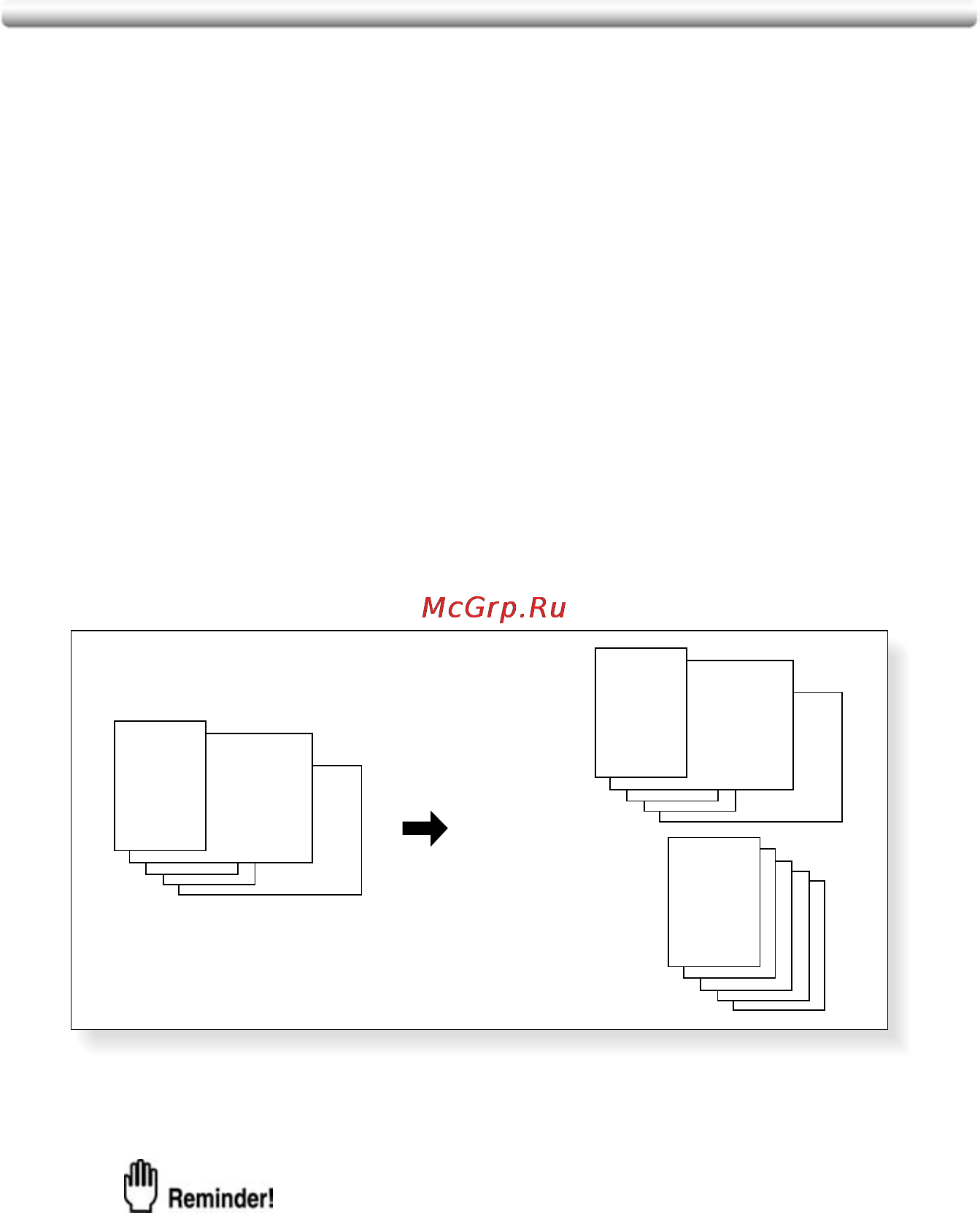

Mixed size originals
APS mode
AMS mode
Automatically select
the paper of the
same size as
that of the original.
Automatically select
magnification ratio
to copy onto the
same paper in size.
