![Konica Minolta bizhub PRO C500 [218/466] Vertical horizontal zoom mode](/img/pdf.png)
Konica Minolta bizhub PRO C500 [218/466] Vertical horizontal zoom mode
![Konica Minolta bizhub PRO C500 [218/466] Vertical horizontal zoom mode](/views2/1122251/page218/bgda.png)
Vertical/Horizontal Zoom Mode
8-8

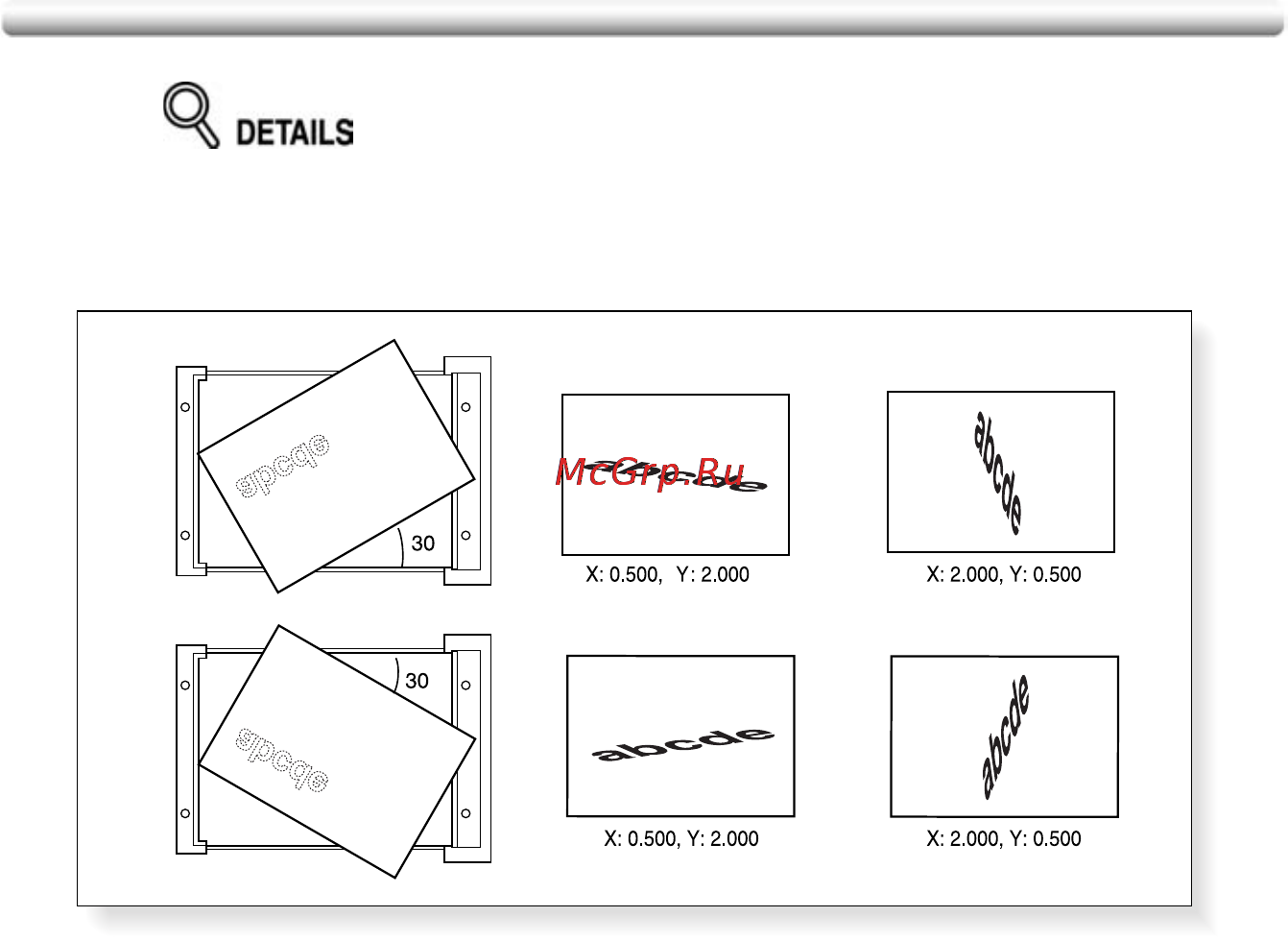

The figure shown below is the sample image using the Vertical/Horizontal
zoom with an original placed slanted on the platen glass.
